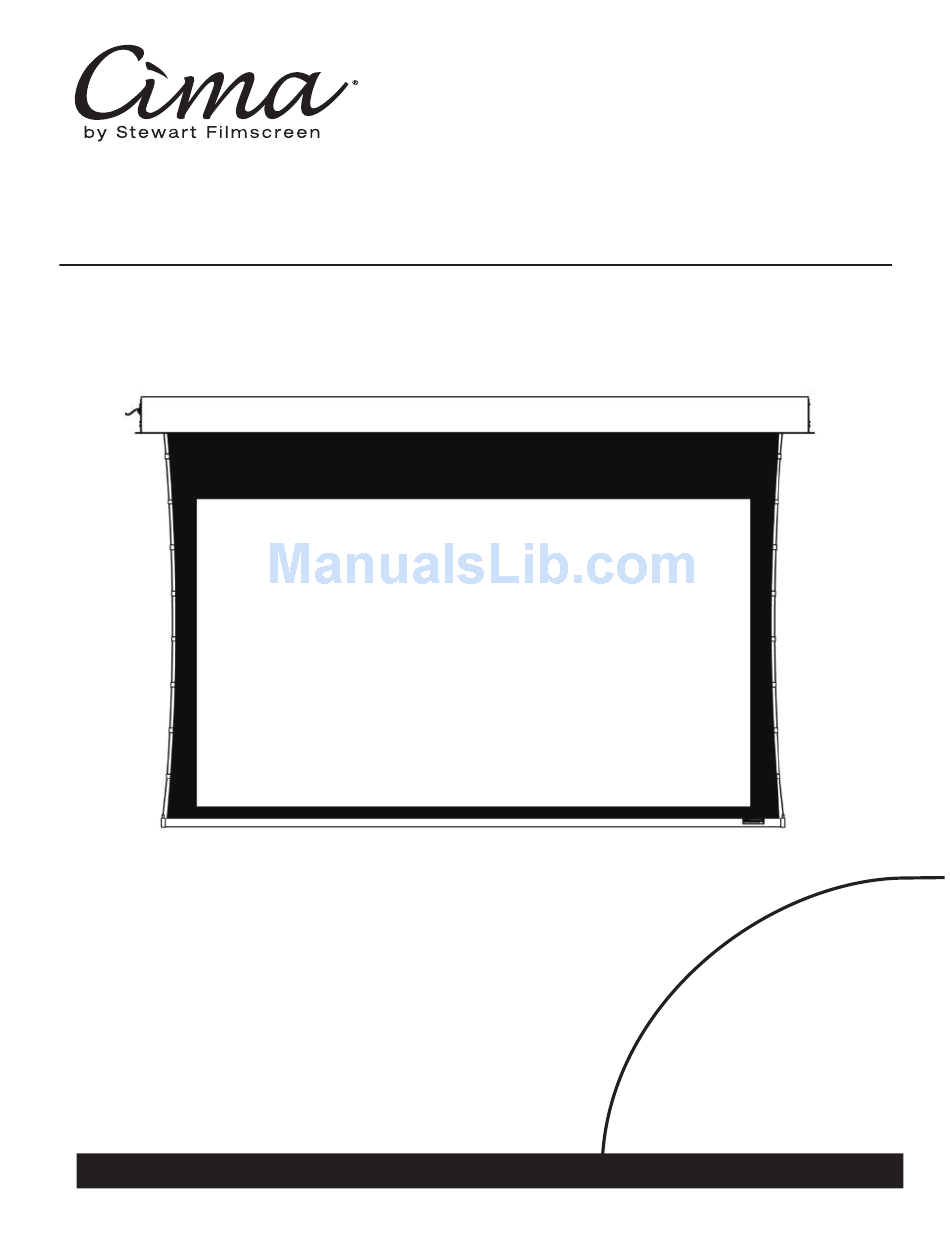

- Page 1 Above Ceiling Electri creen Owner’s Manual To the Owner Installation Instructions Screen Care Maintenance CFS-0115 O T H E I N S T A L L E R E S U R E T O L E A V E T H I S M A N U A L W I T H T H E O W N E R...
-
Page 2: To The Owner
O THE WNER Congratulations on your purchase of one of our highly versatile Cima projection screens representing "Top of the Class" in standard commercial and residential projection screens. Please take a moment to review this manual as it will help ensure you... -
Page 3: Table Of Contents
Electrical Hookup - Keypad ....10 Electrical Hookup - STI Trigger Connections ..11 Electrical Hookup - Cima-Link Operation ..12... -
Page 4: Preparing The Installation
You should remove it only after the unit is hung and all electrical connections have been made. Motor Wiring The Cima Above Ceiling's screen motor is pre-wired at the factory. No additional motor assembly is required Caution During installation, do not place the unit on an unstable cart, stand, table, or ladder. -
Page 5: Product Dimensions
RODUCT IMENSIONS 12 in 10 in MOUNTING HOLES 6 in 6 1/2 in 7 3/4 in FINISHED CEILING SELF FINISHING FLANGE VIEWING SIDE DETAIL A ©2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual... - Page 6 RODUCT IMENSIONS (C ONTINUED MOUNTING BRACKET 3" POWER CORD RJ25 CONNECTOR SCREEN DETAIL B LOW PROFILE MOUNTING BRACKET ©2015 Stewart Filmscreen Corporation...
-
Page 7: Step 1. Hanging The Case
Figure 1: Low-profile Mounting Bracket Mounting the case Follow this procedure to mount the case. The Cima Above Ceiling ElectriScreen can be installed into the ceiling via the low-profile mounting bracket. A false ceiling is not intended to support the weight of a Cima Above Ceiling ElectriScreen. -
Page 8: Step 2. Electrical Hookup - 12V Sti Trigger
Making the connections Figure 4 illustrates the connections. 1. Connect the keypad to the RJ25 cable 2. Connect the other end of the RJ25 cable to the Cima unit Screen "Up" Screen "Down" Stop Button... - Page 9 Both the STI inputs and LV can be used at the same time, as illustrated above. There is a built in de-bounce function whereby the change of a signal must exist for a time greater than 80ms. Any signal less than 80ms is ignored ©2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual...
-
Page 10: Electrical Hookup - Keypad
STEP 3. ELECTRICAL HOOK-UP FOR 12V STI TRIGGER (CONTINUED) Home Automation Connection A 4 pin RJ25 jack provides the connection to any external control equipment. An RJ25 can be 6 pin or 4 pin, and either can be used as shown below: 4 pin: 6 pin:... -
Page 11: Electrical Hookup - Sti Trigger Connections
Ground (Green) Configuration #2: 12 V Trigger to Screen Line (Black) Neutral (White) Ground (Green) Configuration #3: 12 V Trigger & Keypad to Screen Line (Black) Neutral (White) Ground (Green) ©2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual... -
Page 12: (Optional)
Description The Cima-Link Accessory Packages are state-of-the art bi-directional communication AC motor controllers designed to control projection screens, drapery, and curtain applications. One or more Cima-Link controllers can be networked to control nearly an unlimited number of motorized devices. Configuration The controller's incredibly small size enables the unit to be positioned seamlessly within the Cima Above Ceiling housing. -
Page 13: (Optional)
CIMA-LINK CONTROLLER PACKAGES OVERVIEW Figure 5 shows example applications of the Cima-Link Controller Accessories (not included) for which the Cima Above Ceiling ElectricScreen can be integrated with infrared remote, additional Cima screens, and 3rd party applications Figure 5: Cima-Link Controller Package Interface ©2015 Stewart Filmscreen Corporation... - Page 14 Making the connections Figure 4 illustrates the connections. 1. Connect the keypad to the RJ25 cable 2. Connect the other end of the RJ25 cable to the Cima unit Controlling Multiple Cima products The Cima-Link Controller is a state-of-the art bi-directional communication AC motor controller designed to control up to.
-
Page 15: (Optional)
CIMA-LINK INFRARED PACKAGE ELECTRICAL HOOK-UP (OPTIONAL) IR Remote & Keypad to Screen (Cima-Link Infrared Package) Infrared Receiver Line (Black) Neutral (White) Ground (Green) ©2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual... -
Page 16: Step 3. Installing The Screen Case Into The Ceiling
NSTALLING CREEN EILING During installation of the Cima Above Ceiling housing into the ceiling opening, be advised that damage can occur to the screen. Perform the following actions to avoid damage: Wear clean gloves throughout the installation process to prevent damage to the ... -
Page 17: Operating The Screen
(UP) limit switch that will further retract the screen. Incorrect adjustment of the switch will cause severe screen damage. Please consult the factory if you have any questions. ©2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual... - Page 18 DJUSTING THE CREEN XTENSION (CONTINUED) Modifying the extension of the screen You can increase the extension of the screen up to 3" (7.5 cm) past the factory preset stop, or you can decrease the extension by approximately 4-6" (10 - 15 cm) from the factory preset stop. Do not attempt to modify the screen extension beyond these recommended amounts.
-
Page 19: Screen Tension Adjustment
EQUIRED To correctly adjust the batten setting position and side line length on your Cima screen, it may be necessary to loosen the existing side line attachment screws. After the adjustment has been completed, the batten weight will be increased on the screen while decreasing the side line tension. -
Page 20: Screen Care & Cleaning
To maximize the longevity of your Cima screen we recommend the screen be deployed overnight at least once a week. If using a 3rd party control system to deploy your Cima screen, you may be able to program the 3rd party system to automatically deploy your Cima screen once a week. -
Page 21: Troubleshooting
ROUBLESHOOTING Refer to the following guidelines if you encounter a difficulty in the operation of your Cima by Stewart Filmscreen product. Problems related to electrical or motor function may require a qualified service person or electrician. Should you have a problem that is not addressed here, call Stewart Filmscreen Corporation. - Page 22 ROUBLESHOOTING (C ONTINUED Problem description Probable cause Action to take Screen continues past bottom White limit switch is out of Readjust the white DOWN stop position. adjustment. limit switch. See pp. 17-18 of this manual. Yellow limit switch is out of Batten retracts too far into case.
-
Page 23: Product Warranty
In the event that there is a defect in materials or workmanship of a Cima by Stewart Filmscreen, you may contact our Customer Service Department at 1161 W Sepulveda Blvd, Torrance, California 90502- 2797 (310-784-5300) Toll free (800-762-4999). - Page 24 www.stewartfilmscreen.com 1-800-762-4999 Fax (310) 326-6870 15416...
