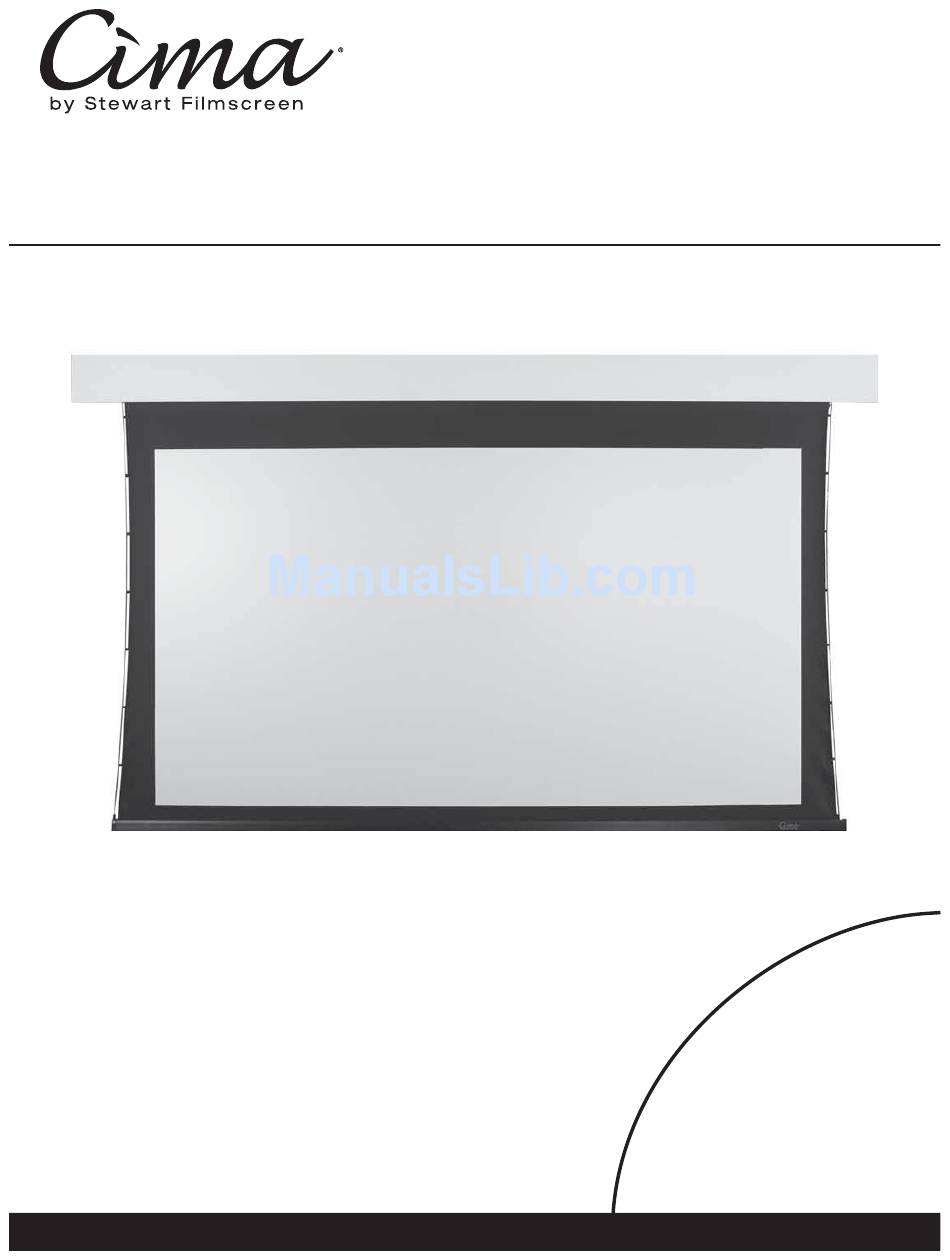

- Page 1 Below Ceiling ElectriScreen Owner’s Manual To the Owner Installation Instructions Screen Care Maintenance CFS-111315-BC TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
- Page 2 Printed in U.S.A. © 2015 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at Manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.stewartfilmscreen.com...
-
Page 3: Table Of Contents
Optional Controls ......12-16 Cima-Link Infrared Package ....13 Cima-Link Ethernet Package . -
Page 4: To The Owner
Cima by Stewart Filmscreen product. About your Cima Below Ceiling ElectriScreen The Cima Below Ceiling ElectriScreen is designed for ease of installation. The Cima Below Ceiling features a self-finishing face-plate. There are no user-servicable parts contained within the unit. -
Page 5: Preparing The Installation
PREPARING THE INSTALLATION Description The Cima Below Ceiling product can be controlled through a number of remote control devices, including keypads, dry contact outputs, and low-voltage trigger outputs. With the optional Cima-Link Controller Packages, your Cima screen can be controlled by local and remote Infrared, IP ethernet, and computer-based signaling sources such as those manufactured by Control4, AMX, Crestron, Elan Home Systems with RS-232-C or RS-485 interfaces. -
Page 6: Product Dimensions
PRODUCT DIMENSIONS CASE & SCREEN © 2015 Stewart Filmscreen Corporation... -
Page 7: Mounting The Screen
Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Caution Proper handling of the Cima Below Ceiling ElectriScreen is required during installation to avoid possible damage to the screen. Perform the following actions to avoid damage: ♦... -
Page 8: Ceiling-Mounting The Screen
♦ Make sure that the screen batten never contacts or strikes any objects as damage may occur. Note: A false ceiling is not intended to support the weight of a Cima Below Ceiling ElectriScreen. CHANNELS Figure 4: Ceiling Mounted Screen - Front View Detail B: Bracket Detail 1. -
Page 9: Standard Controls
Cima-Link Controller Accessories. Making the Connections 1. Connect the RJ25 cable to the keypad. 2. Connect the other end of the RJ25 cable to the Cima unit. Note: The maximum length of the RJ25 cable shall not exceed 50’. RJ25 JACK... -
Page 10: Projector Trigger Control
– the installer needs to make the cord from a RJ25 cord, cut one end off and add the mono plug onsite.) 2. Connect the other end of the trigger cable to the Cima unit. (RJ25 plug) PROJECTOR TRIGGER CABLE... -
Page 11: Keypad & Projector Trigger Control
Press the "Up" button once and the Cima screen will automatically retract back into the case and power itself off. If a custom position is desired, simply press the "Stop" button at any time during the screen's deployment or retraction. -
Page 12: Optional Controls
Cima-Link Ethernet Package. Figure 9: Cima-Link Controller (Located Inside Case) Note: The Cima-Link Controller is installed at the factory when ordered with a screen. In the event of an aftermarket installation, contact factory for instructions for mounting the controller. Call Toll-Free 800-762-4999 or 310-784-5300. -
Page 13: Cima-Link Infrared Package
OPTIONAL CONTROL - CIMA-LINK INFRARED PACKAGE CONNECTION Making the Connection 1. Connect the RJ25 cable to the right RJ25 jack located in the back of the Cima unit. 2. Place infrared eye in line of sight of remote. Note: The maximum length of the RJ25 cable shall not exceed 50’. -
Page 14: Cima-Link Ethernet Package
OPTIONAL CONTROL - CIMA-LINK ETHERNET PACKAGE CONNECTION Making the Connection 1. Connect the RJ25 cable to the right RJ25 jack located in the back of the Cima unit. 2. Place the other end of the RJ25 cable to the RJ25 jack in the IP device. -
Page 15: Cima-Link Rs232 Package
OPTIONAL CONTROL - CIMA-LINK RS232 PACKAGE CONNECTION Making the Connection 1. Connect the RJ25 cable to the right RJ25 jack located in the back of the Cima unit. 2. Place the other end of the RJ25 cable to the RJ25 jack in the RS232. -
Page 16: Operating The Screen
The 3-button low-voltage keypad operates with only 3 conductors; common, up & down. The “Stop” function shorts both directions internally to common. You can use both switching functions simultaneously by simply connecting a splitter to the Cima RJ Input jack. The trigger input is only a 2 conductor connection. -
Page 17: Adjusting The Screen Extension
Note: One complete turn of the switch will make approximately a 3/4" (2 cm) change in the screen's stop position. © 2015 Stewart Filmscreen Corporation Cima Below Ceiling ElectriScreen: Owner’s Manual... -
Page 18: Adjusting The Screen Extension
ADJUSTING THE SCREEN EXTENSION (CONTINUED) To decrease the screen extension: 1. Lower the screen until it is extended about halfway down. 2. Locate the white extension (down) limit switch on the left side of the screen tube (audience left). Use a small electrician’s style screwdriver or a 5/32” (.4 cm) hex wrench to turn the switch in a clockwise direction. -
Page 19: Adjusting The Screen Tension
ADJUSTING THE SCREEN TENSION To correctly adjust the batten setting position and side line length on your Cima screen, it may be necessary to loosen the existing side line attachment screws. After the adjustment has been completed, the batten weight will be increased on the screen while decreasing the side line tension. -
Page 20: Caring For & Cleaning The Screen
To maximize the longevity of your Cima screen we recommend the screen be deployed overnight at least once a week. If using a 3rd party control system to deploy your Cima screen, you may be able to program the 3rd party system to automatically deploy your Cima screen once a week. -
Page 21: Troubleshooting
TROUBLESHOOTING Refer to the following guidelines if you encounter a difficulty in the operation of your Cima by Stewart Filmscreen product. Problems related to electrical or motor function may require a qualified service person or electrician. Should you have a problem that is not addressed here, call Stewart Filmscreen Corporation (1-800-762-4999). -
Page 22: Troubleshooting
TROUBLESHOOTING (CONTINUED) Problem Description Probable Cause Action To Take Screen continues past bottom stop White limit switch is out of adjustment. Readjust the white DOWN limit switch. position. See pp. 18-19 of this manual. Batten retracts too far into case. Yellow limit switch is out of adjustment. -
Page 23: Product Warranty
In the event that there is a defect in materials or workmanship of a Cima by Stewart Filmscreen, you may contact our Customer Service Department at 1161 W Sepulveda Blvd, Torrance, California 90502- 2797 (310-784-5300) Toll free (800-762-4999). - Page 24 www.stewartfilmscreen.com 1-800-762-4999 ♦ Fax (310) 326-6870 16103...
