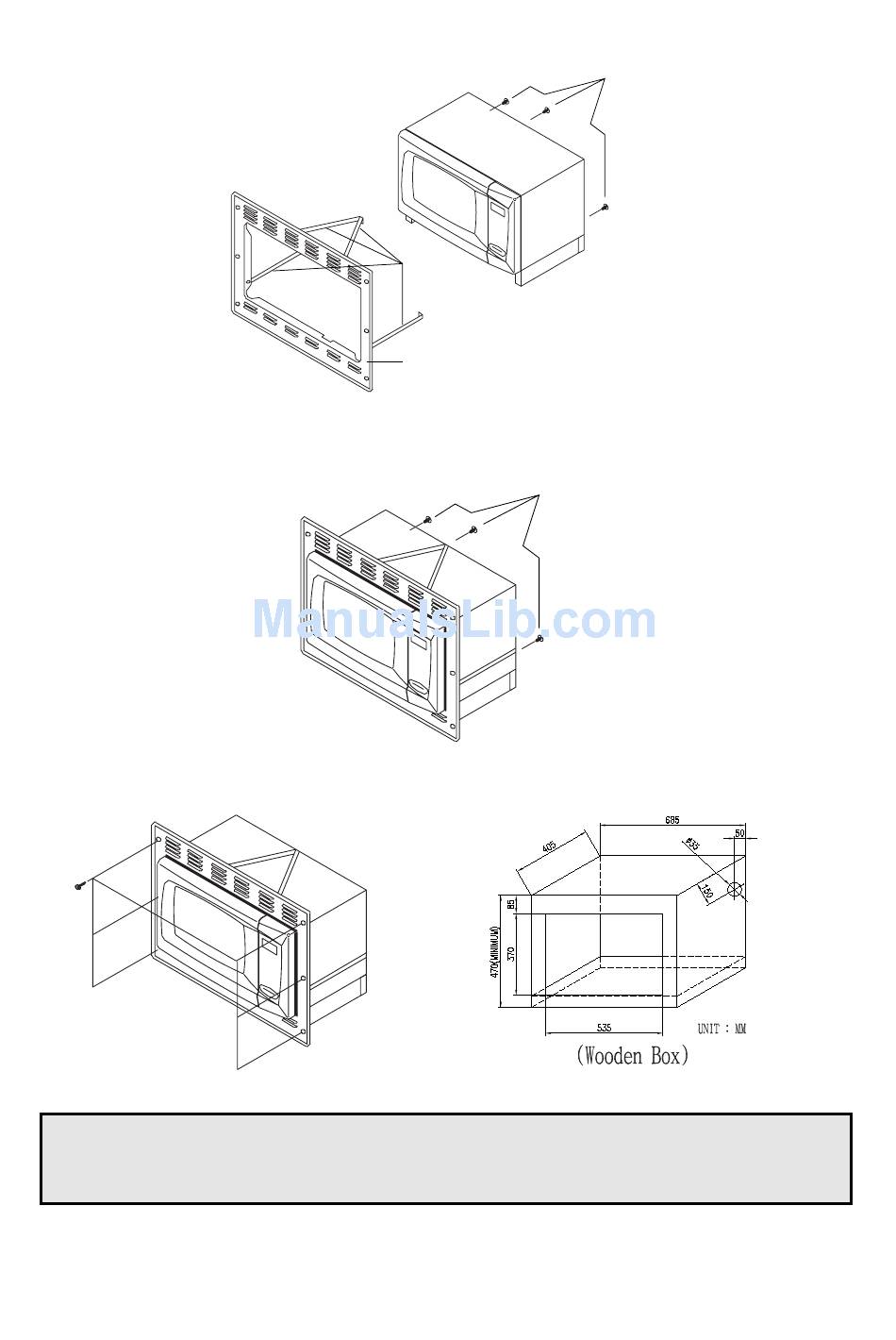

2. Remove three screws(1) on cabinet back.
3. Install the trim kit(2) and mounting brackets(3).
4. Tighten three screws(1) through the holes of mounting brackets(3)
5. For proper operation, install oven in the wooden box* as shown. Fix the trim kit with six screws.
IMPORTANT: Dimensions are based on plywood thickness of 11 mm. Use of a different plywood
thickness requires the box dimensions to be adjusted accordingly to maintain the required clearances on
the sides and top for proper operation of the unit.
