SoundGraph Hummin’ 3.03 Quick Manual page 11

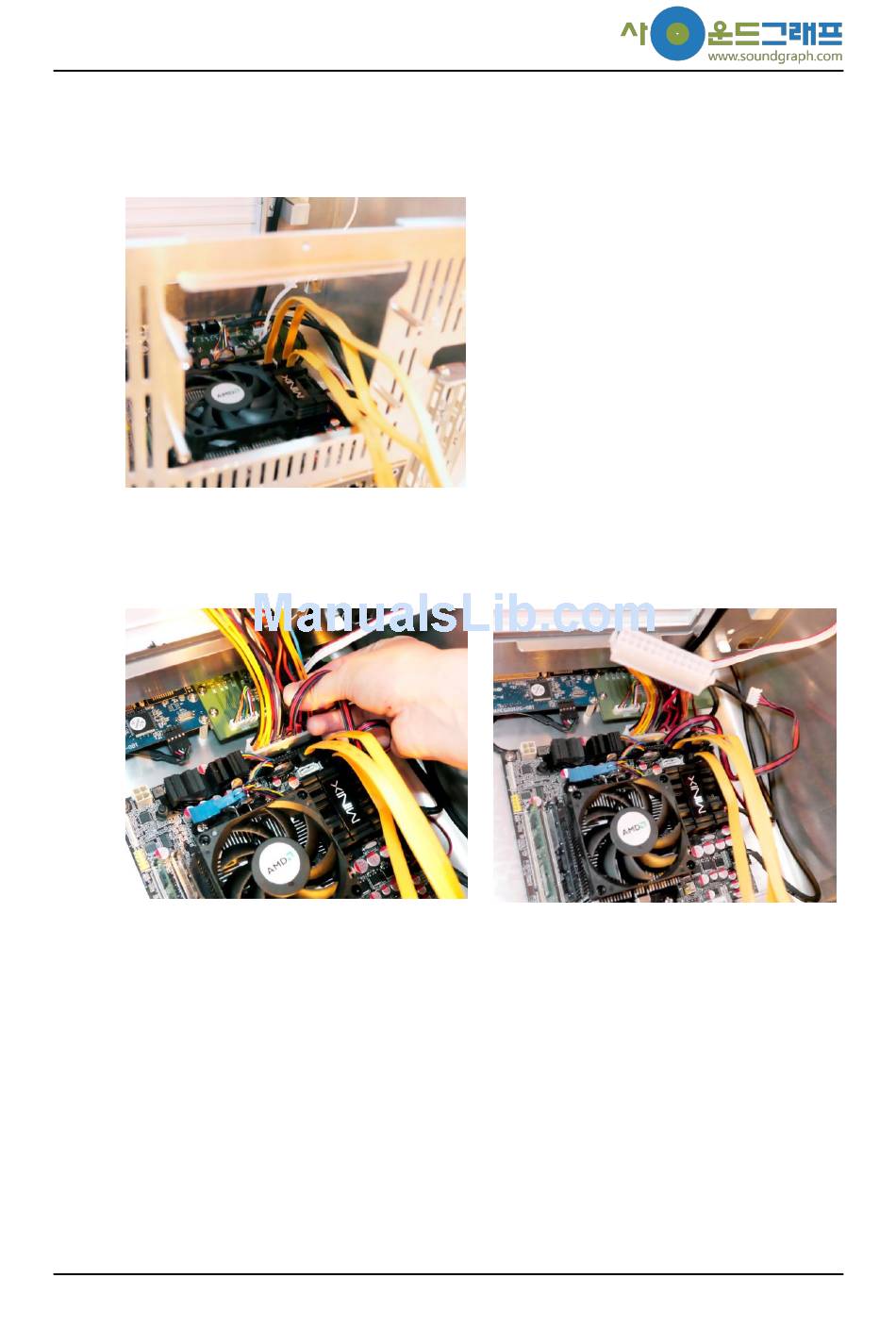

Connect one end of SATA cable to one of the SATA connectors on the mainboard and
pull out the other side of the cable through the hole for the fan cover removed before.
15. Connect SATA cable for 5.25" optical disk drive to mainboard.
Connect one end of SATA cable to one of the SATA connectors on the mainboard and
pull out the other side of the cable through the hole for the fan cover removed before.
16. Connect 24/5 pin power supply cable to mainboard.
Connect the 24 pin socket from the 24/5 pin power supply cable to the ATX power
connector of the mainboard. (Refer to Connection Guide for Hummin' 3.03 Internal
Cables.)
17. Connect 24/5 pin power supply cable to front I/O panel
-11-
