Summary of Contents for SoundGraph Hummin’ 3.03

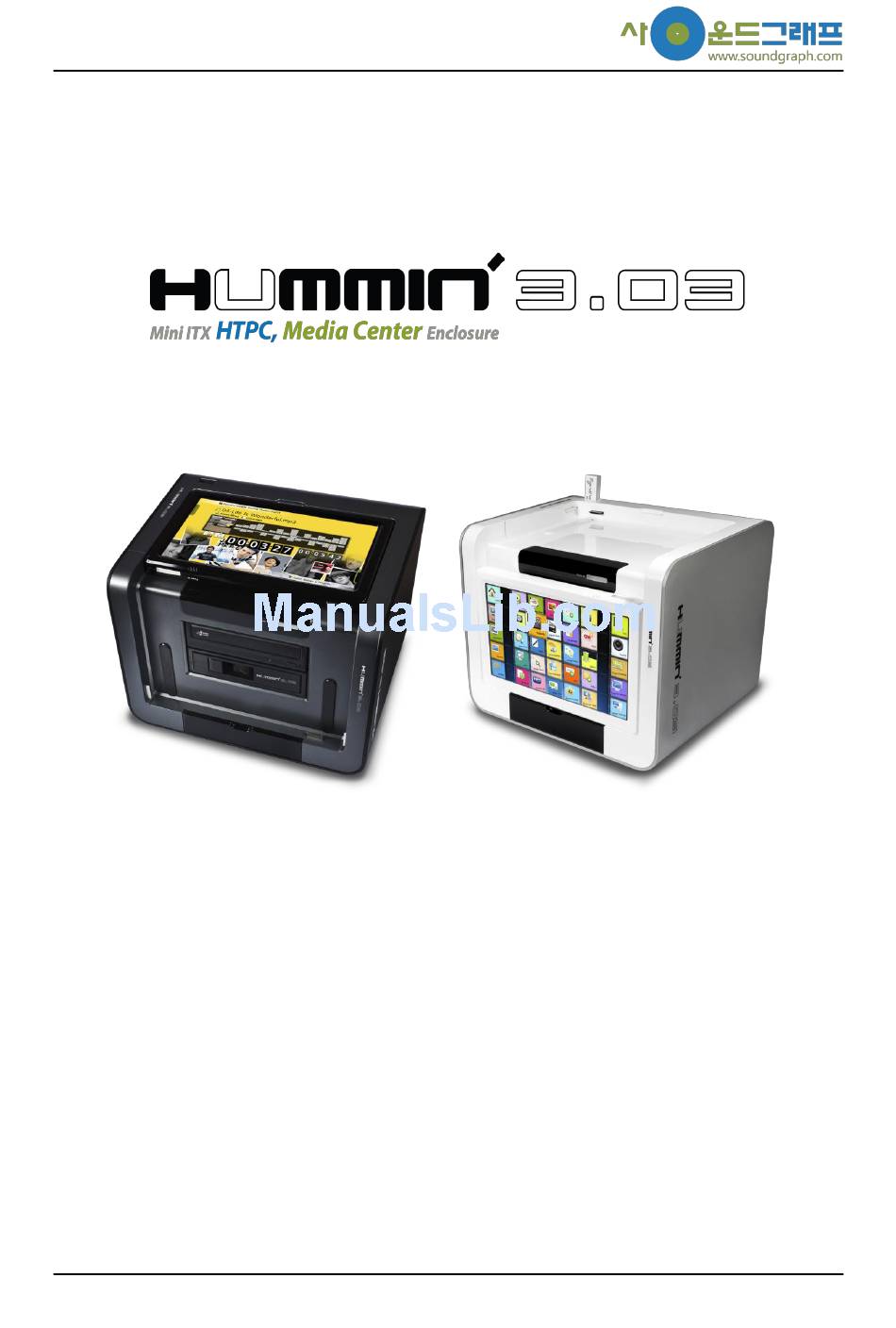

- Page 1 Quick Guide Version: 1.11.0224 SoundGraph, Inc.
- Page 2 List of Contents Thank you for purchasing Hummin’ 3.03 Enclosure. Please check the contents in this package listed below. Hummin’ 3.03 Enclosure iMON Pad Remote Control 24/5 power cable Quick Guide Hummin’ 3.03 Enclosure iMON Pad Remote Control 24/5 power cable Quick Guide In case of a barebone kit including Hummin’...
- Page 3 ① Infrared (IR) receiver ② Power button ③ 5.25” Disk Driver bay (upper) ④ Removable Hard Disk Drive bay (lower) ⑤ Front I/O panel ⑥ Front USB port ⑦ Mic. input ⑧ Headphone output ⑨ Card reader ⑩ Front FingerVU 1016S/1016W docking connector...
- Page 4 ① FingerVU WUD connector ② Top FingerVU 1016S/1016W docking connector ① Mounting position for microATX power supply ② Mounting position for bracket on mainboard ③ Fan cover...
-
Page 5: Software Installation
Software Installation Hummin’ 3.03 Enclosure can be used with iMON Manager Touch Frame, and HD Frame. These applications are provided with FingerVU 1016S/1016W (Wired/Wireless) Monitor. Please refer to the installation CD in FingerVU 1016S/1016W package you purchased. Hardware Installation This section provides detailed installation procedure of Hummin’ 3.03 Enclosure. Please follow the description of each step carefully. - Page 6 Remove the 5.25” disk drive bay from the drive bay support by releasing 4 screws. Remove drive bay support Remove the drive bay support from the enclosure by releasing 4 screws (B type). Remove screw set for assembly Remove the screw set for assembly placed on backside of the front panel. Mount Bracket on Mainboard...
- Page 7 Mount the bracket (included in the mainboard product) on back side of Hummin’ 3.03 Enclosure. Install Mainboard Components Hummin’ 3.03 Enclosure supports standard mini-ITX mainboards. Install CPU, CUP cooler and memory as in the user guide of the mainboard. A video expansion card may be installed after mounting the mainboard into the enclosure.
- Page 8 Connect front USB cable Connect the USB cable (USB 5 Pin) from the front I/O panel to the USB connection header on the mainboard. Please make sure that the orientation of the cable matches that of the USB header. (Refer to Connection Guide for Hummin’ 3.03 Internal Cables.) 10.
- Page 9 In this product, the other side of the USB 5 Pin cable is connected to the card reader with the orientation shown below. Please check the connection in this step. 11. Connect front HD audio cable Connect the front HD audio cable (HD Audio) from the front I/O panel to the speaker head on the mainboard.
- Page 10 12. Connect front power switch Connect the front power cable (Power S/W) from the front I/O panel to the power head on the mainboard. (Refer to Connection Guide for Hummin’ 3.03 Internal Cables.) 13. Connect SATA cable for removable 3.5” hard disk drive bay to mainboard Connect one end of the SATA cable to one of the SATA connectors on the mainboard and pull out the other side of the cable through the hole for the fan cover removed before.
- Page 11 Connect one end of SATA cable to one of the SATA connectors on the mainboard and pull out the other side of the cable through the hole for the fan cover removed before. 15. Connect SATA cable for 5.25” optical disk drive to mainboard. Connect one end of SATA cable to one of the SATA connectors on the mainboard and pull out the other side of the cable through the hole for the fan cover removed before.
- Page 12 Connect the 5 pin socket from the 24/5 pin power supply cable to the available power connector (one not being used from the two “POWER”s) on the front I/O panel. (Refer to Connection Guide for Hummin’ 3.03 Internal Cables.) 18. Mount power supply module Hummin’...
- Page 13 mainboard before) to the 24 pin cable of the power supply module. Arrange the cables not to block proper operation of other components. 20. Connect 4 pin auxiliary power cable to mainboard Connect the 4 pin auxiliary power cable from the power supply module to the 4 pin auxiliary power connector on the mainboard.
- Page 14 In Hummin’ 3.03 Enclosure, a DVD drive or a Blu-ray drive having length within 180 mm can be mounted in the 5.25” disk drive bay. The removable hard disk bay (lower bay in the image above) is included in the Hummin’ 3.03 Enclosure barebone kit by default. In case of mounting both the optical disk drive and removable hard disk drive bay, place the removable hard disk drive bay at the lower position to facilitate air ventilation inside the enclosure.
- Page 15 Remove the cover for ODD bay to be used. In the case when both the ODD and removable hard disk drive bay are mounted (at upper and lower position, respectively), remove all the two ODD bay covers. 25. Mount drive bay support Mount the drive bay support for the 5.25”...
- Page 16 To change hard disk drive while OS is running, AHCI option needs to be selected from AHCI Devices menu in mainboard BIOS setup. AHCI mode is compatible with Windows Vista and Windows 7. 28. Connect SATA and power cables to 5.25” optical disk drive Connect SATA and power cables to the 5.25”...
- Page 17 Connect the fan cable from the removed fan cover on backside of the enclosure to the power supply module. 31. Assemble fan cover Assemble the removed fan cover on backside of the enclosure. Prior to this step, arrange the cables not to block the fan operation. 32.
-
Page 18: Customer Support Information
The latest version of this Quick Guide can be downloaded from the customer support page linked above. Customer Support Information Customer Support Center: +82-70-7018-5373 Online User Forums (Sign-up required): http://www.soundgraph.com/support-mesg-en Homepage: http://www.soundgraph.com/ Connection Guide for Hummin’ 3.03 Internal Cables Please refer to the connection guide shown in the next page for all the cables inside Hummin’... - Page 19 -19-...
