Tower Hobbies T16004 Safety And Instruction Manual
5 litre
electric pressure cooker
Hide thumbs
Also See for T16004:
- Safety & instruction manual (12 pages) ,
- Safety and instruction manual with recipes (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Tower Hobbies T16004
Summary of Contents for Tower Hobbies T16004

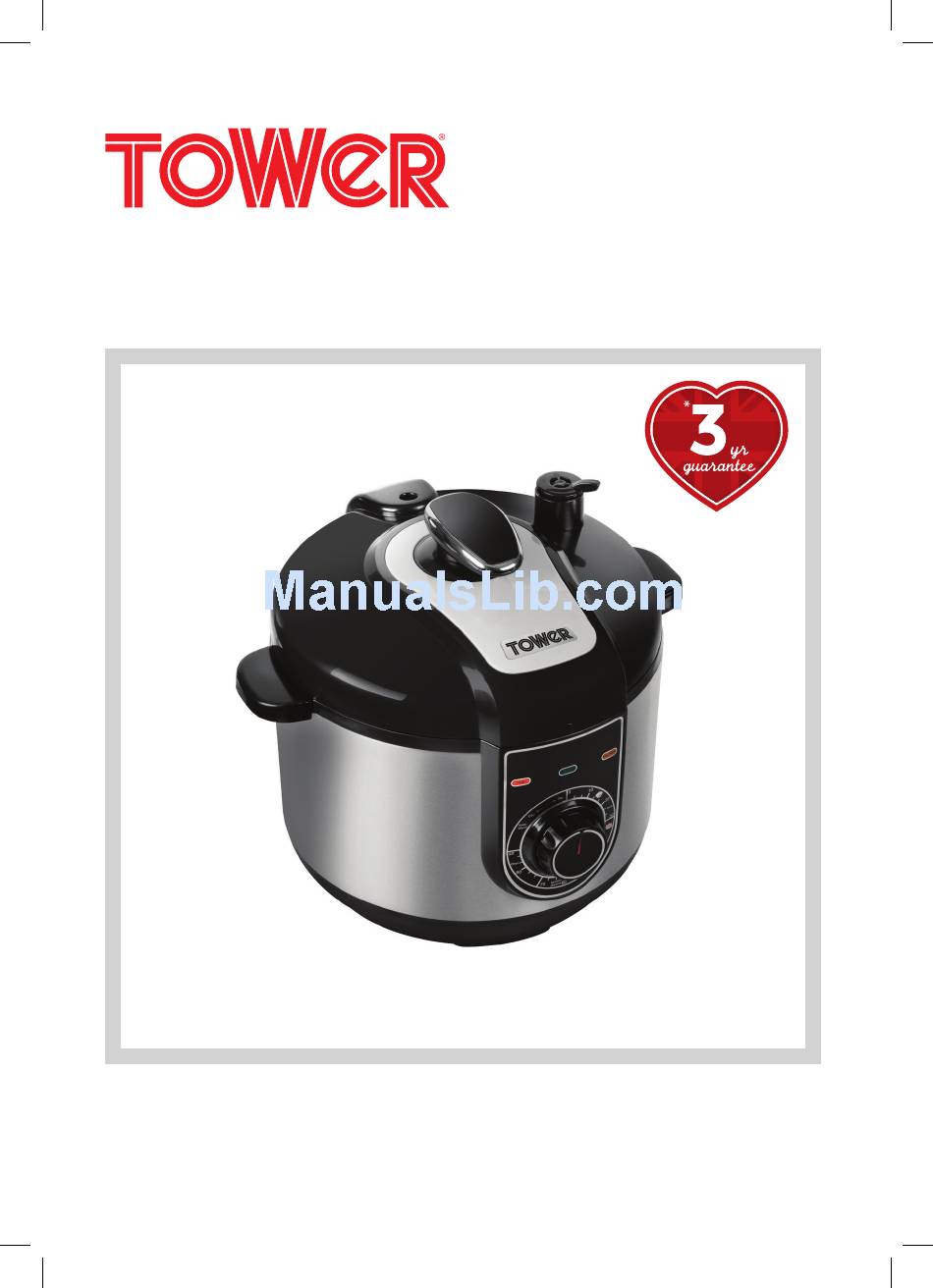

- Page 1 T16004 Safety and Instruction Manual PLEASE READ CAREFULLY *Subject to registering Your Extended Guarantee online at www.towerhousewares.co.uk. 5 Litre Electric Pressure Cooker...
- Page 2 1912 Midland Metal Spinners was founded by 1961 Tower became largest George Cadman, who was then 65 years old, as manufacturers of aluminium holloware, electric a metal holloware manufacturing company, in St. kettles, tea pots and other household articles with Mark’s Street, Wolverhampton.
- Page 3 Safety and Instruction Manual CONTENTS: Please read this Manual carefully BEFORE Contents: using the Electric Pressure Cooker for your Specifications own safety. Components and structure Thank you for purchasing this Tower Electric Technical information Pressure Cooker. Important Safety Information It has been designed to provide many years of trouble-free cooking.
-
Page 4: Specifications
1 SPECIFICATIONS: Components This box contains: Pressure Cooker Measuring Cup Removable Non Stick Cooking Pot Water Catch Pot Rice Spoon Instruction Manual Steam Rack Structure of your pressure cooker: Safety Lock Override Pin Steam Rack Ladle Float Valve Outlet 10. Measuring cup Lid Handle 11. - Page 5 Safety and Instruction Manual Technical Data Description: 5 Litre Electric Pressure Cooker Model: T16004 Rated Voltage: 220V-240V ~ 50Hz Power Consumption: 1000 Watts Documentation We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2004/108/EC Electromagnetic Compatibility Directive.
- Page 6 2 IMPORTANT SAFETY INFORMATION Please read these notes carefully BEFORE using your Tower appliance • Check that the voltage of the • Close supervision is necessary main circuit corresponds with when any appliance is used by the rating of the appliance or near children.
- Page 7 Safety and Instruction Manual • Do not touch hot surfaces. Use • Always check the pressure handles and pot holders. release devices for clogging before use, rinse the steam • Do not place the pressure valve under warm water to cooker in a heated oven.
- Page 8 3 USING YOUR APPLIANCE Functionality: Quick Guide: Before using the unit for the first time, carefully Connect power lead to the cooking pot, clean the unit and all the items that will come into and switch on at the wall. contact with food. Attach your transparent water catch pot Do not use any abrasive detergents, brushes to the back of the unit, this will catch any...
- Page 9 Safety and Instruction Manual Cooking time guidelines. Add ingredients to your inner pot. Make sure to add your stock or water to the desired amount. Turning the dial to the FOOD/ required setting some items are already FILL LEVEL: indicated on the dial, the following will be a guideline to cooking times.
- Page 10 Making Porridge When the pressure cooker has finished cooking a beep will be heard and it will Add your oats and water to the cooking automatically go into keep warm mode. To pot and close the lid. Select the porridge release the built up steam turn the steam function on the dial buy turning the timer.
- Page 11 Safety and Instruction Manual Sealing, Browning & Sautéing Meat To use your pressure cooker to brown and seal meat, or sauté add a small amount of oil to the cooking pot. No lid is required for this function. Turn the dial to 10 minute position. You can now seal and brown meat or sauté...
- Page 12 Recipes for your Pressure Cooker If you want to get in and out of the kitchen fast And with a large 5 litre capacity, whatever you and serve your family wholesome, nutritious, make you have enough room to feed the whole home cooked meals, then the Tower electric family whilst saving up to 70% on energy.
- Page 13 Safety and Instruction Manual Pressure Cooker Brown Rice RICE SECTION What you need PAGE 400g of brown short grain rice 280ml cups of water ½ tsp salt How you do it Combine the rice, water and salt in to the pressure cooker pot. Lock on the lid and close the steam vent.
- Page 14 Whole chicken & Vegetables MEAT SECTION What you need PAGE 1.5kg Whole Small Chicken 225ml Chicken Broth 2 Bags of Frozen Vegetable Medley Mix (Any will do, pre-seasoned or flavoured works great) How you do it Pour the chicken broth into the main cooking pot of the pressure cooker. Season the chicken with salt and pepper and place into the pot as well.
- Page 15 Safety and Instruction Manual Pork Pot Roast MEAT SECTION What you need PAGE 350 ml Chicken/veg stock 500g Pork Chops 2 medium onions sliced 2 large potatoes diced 2 large carrots diced How you do it Select meat function on pressure cooker, amend cooking time to 30 minutes and press start, add a little oil to the cooking pot, place chops in to pot and brown on both sides.
- Page 16 Porridge PORRIDGE SECTION What you need PAGE 280g (rolled) oats 1 tsp coarse salt 1 tsp sugar 680ml cold water 680ml milk 4 tbsp butter How you do it You can omit the butter, but it not only adds flavour, it helps reduce foaming and helps keep the oats from sticking to the bottom of the pot.
- Page 17 Safety and Instruction Manual Winter Warmer Beef Stew STEW SECTION What you need PAGE 60g plain flour 1 tsp dried basil 1 tsp salt 8 small potatoes 1⁄2 tsp black pepper 1 bag (450g) carrots, peeled and cut into 2 inch 1.3kg beef stew cubes pieces 2 tbsp vegetable oil...
- Page 18 Your Own Recipes Register online at www.towerhousewares.co.uk for your FREE extended guarantee.
- Page 19 Safety and Instruction Manual Helpline: +44 (0) 844 984 0055...
- Page 20 Tips: • Try placing your veg on the steam rack with • Use fresh herbs when cooking meat. the minimum amount of water required. Pressure cooking tends to infuse the flavour Save the remaining liquid after cooking for of all the ingredients you cook together. Put stock.
- Page 21 Safety and Instruction Manual 4 TROUBLE SHOOTING & FAQ’S Fault Possible Cause Solution The indicating light does The power supply has not been connected Check that it is turned on at the not light up correctly. socket and that the plug is fit correctly. Difficulty in covering The sealing ring has not been placed Fit the sealing ring correctly.
- Page 22 5 CLEANING & CARE Looking after your Pressure Cooker Maintaining the Seal After use, remove the seal from the cover Your Tower Pressure Cooker is designed to give you many years of trouble free cooking, if and check for any damage. If the seal properly cared for.
- Page 23 Safety and Instruction Manual Do not lift the pressure limiting valve to IMPORTANT! lower the pressure when cooking. Allow to dry fully after cleaning before using again. Whilst cooking, AVOID knocking the Do not use the appliance if damp. Ensure the pressure cooker as the contents are appliance is completely clean and dry before under pressure and will damage the...
- Page 24 7 WIRING SAFETY FOR UK USE ONLY IMPORTANT As the colours in the Non-Rewireable Mains Plug mains lead of this If your appliance is supplied with a non- appliance may not rewireable plug fitted to the mains lead and correspond with the should the fuse need replacing, you must use an coloured markings ASTA approved one (conforming to BS 1362 of...
- Page 25 Safety and Instruction Manual 8 WARRANTY This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.
- Page 26 9 YOUR RECEIPT Affix your store receipt to this page for safe keeping. Register online at www.towerhousewares.co.uk for your FREE extended guarantee.
- Page 27 Safety and Instruction Manual NOTES Helpline: +44 (0) 844 984 0055...
- Page 28 thank you! We hope you enjoy your appliance for many years. As a thank you for purchasing one of our fantastic products, we are giving you an extra 2 years peace of mind. *To receive your extra 2 years guarantee, register your appliance online by visiting: www.towerhousewares.co.uk Should you have a problem with your...
