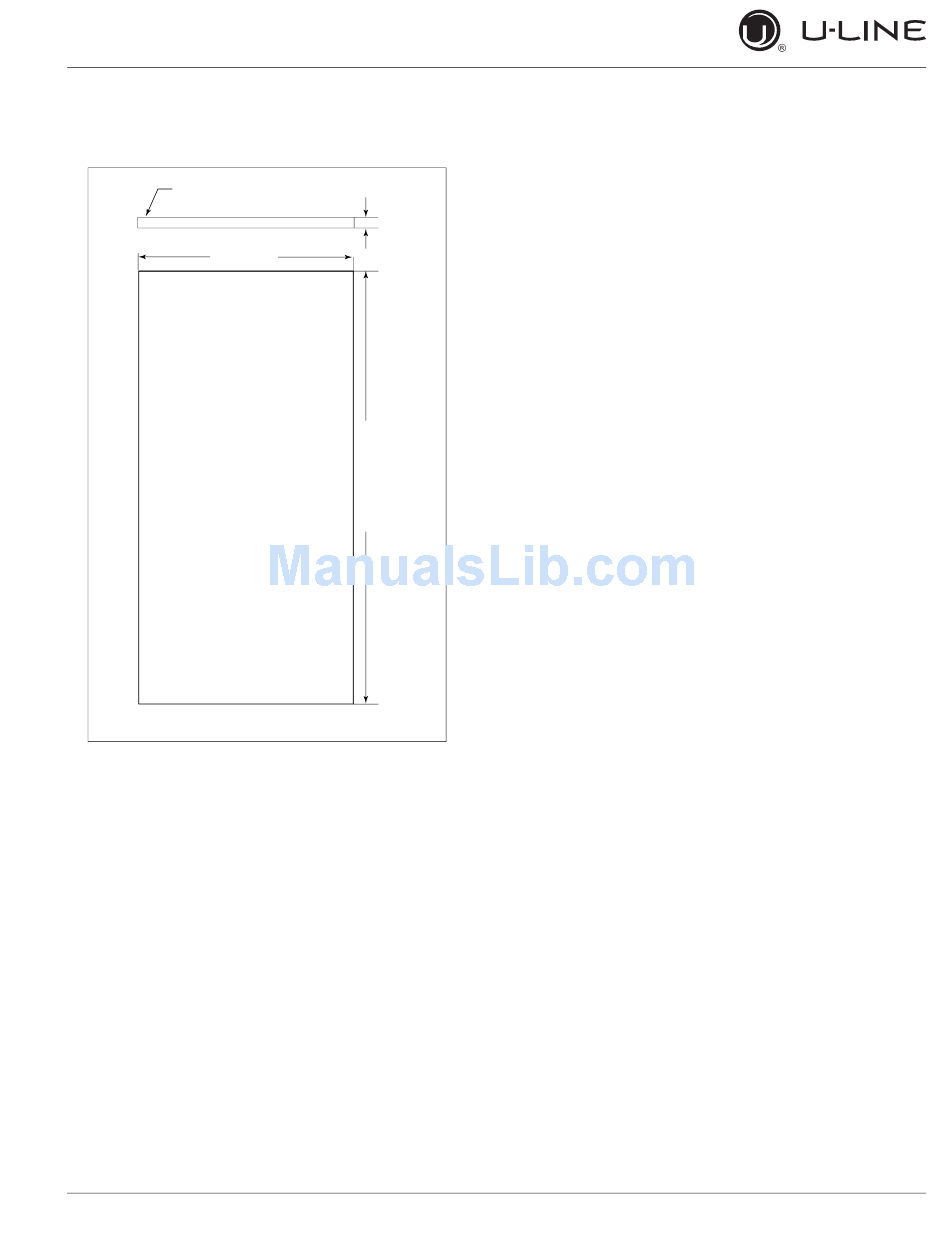

Extended Integrated Panel Dimensions
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT INTEGRATED PANEL FLAT AND
WITHOUT INTERFERENCE
17-1/2"
(445 mm)
Integrated Panel
* A minimum of 1" (25 mm) is required from the
floor to the bottom of the extended integrated
panel/frame for proper ventilation.
3/4"
(20 mm)
30"
to
33-7/8"
(762 mm
to
860 mm)*
