3. Hang the Sensor at the entrance of your driveway (such as on a mailbox, on a tree or or a
ground stake). You may also place the PIR sensor on your garage, near the front entrance or
rear door. Any movement nearby will let the PIR transmit a signal to the receiver chime unit

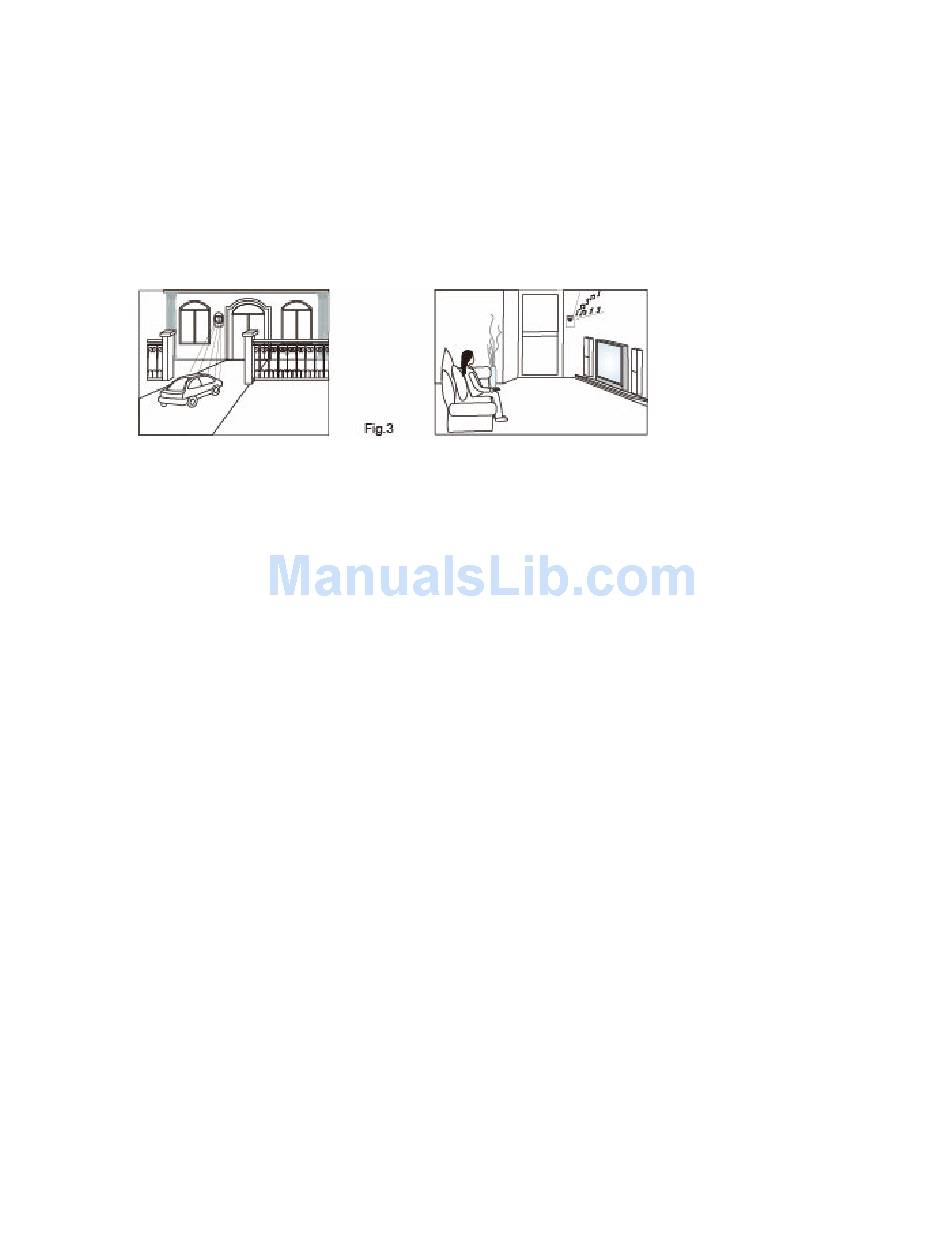

triggering it to sound.(Fig.3)
4. Please ensure the Sensor unit is mounted at least 5 feet above the ground.
5. The Photo Infrared Sensor will also detect heat and set off the alarm/chime. Avoid aiming the
sensor directly at sources of heat.

6. Alarm Mode

Slide the FUNCTION SELECTOR (#3) to Alarm position. When the Sensor detects
any moving object, the alarm sound will turn on for around 25 seconds and the LED
will flash. Switch the FUNCTION SELECTOR (#3) to the "OFF" position to turn off
the alarm.

7. Chime Mode

Slide the FUNCTION SELECTOR (#3) to Chime position. When the Sensor detects
any moving object, the door chime will turn on and the LED will light up. You can
adjust the SOUND VOLUME (#1) to select Hi or Lo chime sound level.

8. Testing the detection coverage of the Sensor.

After selected a location to install the Sensor, you can slide the FUNCTION
SELECTOR (#3) to Chime position and wait 30 seconds for the unit to adjust to the
location. Walk in front of the unit and observe the detection LED on the Sensor.
When the unit detects motion within the coverage range, the LED will light on the
Sensor, and the chime will sound on the receiver. The unit will not respond if you are
out of the coverage range. Adjust the height and placement of the Sensor to obtain the
best desired coverage.

9. Low battery indicator

A) Sensor
When the battery in the Sensor gets low, the LED will remain lit to indicate the
low battery. Please replace the battery.
B) Receiver
The LED at the middle will light when battery gets low. Please replace the
batteries.
E-3
