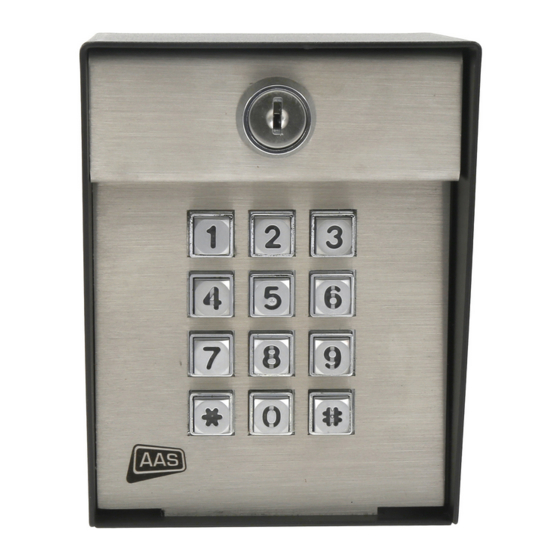

- Page 1 User/Installation Manual ADVANTAGE DKE MODEL 26-100L trol” “Your Partner in Access Con www.americanaccess.com...
- Page 2 What we will do: If your AAS product is defective and returned within 2 years of the date of purchase, we will repair it or, at our option, replace it at no charge to you. If we repair your AAS product, we may use new or reconditioned parts. If we choose to replace your AAS product, we may replace it with a new or reconditioned one of the same or similar design.
-
Page 3: Parts Checklist
PARTS CHECKLIST Enclosed with this box you should have the following items. Description Control Station 1/4 by 1/2 carriage bolts (Post mount units only) 1/4-20 hex nuts (Post mount units only) If any of the above items are missing from this box, contact American Access Systems Tools Needed For Basic Installation ire nuts or appropriate connectors ire strippers... -
Page 4: Step 2-System Connections
American Access Systems immediately. Mounting the unit to an AAS gooseneck (18001) or double height (18003)pedestal ocate the four carriage bolts and four hex nuts found inside the unit box. Place the unit up to the pedestal ange and insert the four carriage bolts from the backside. -
Page 5: Op E R Ator Wir Ing Diag R Am
OP E R ATOR WIR ING DIAG R AM White/White connect to operator secondary power. (12 to 24 volt) Orange/B rown connect to operator open/close circuit. (B lue not used) OP E R ATOR HOOKUP STEPS (A). Your DKLP control unit operates on 2 to 24 volts AC or DC. - Page 6 THE * AND # KEY The and # keys serve speci c functions while in the idle or program mode. The key is always the clear key. You should use this key if you make an entry error. The # key also serves as the clear key in the idle mode. In the program mode however, it serves as the exit key and will at any time when depressed, exit you from the program mode.
- Page 7 “4” Sub-Mode 4 (Set Relay Output Time from 1/2 to 9 seconds) To set the relay output time in seconds enter the P ESE T MASTE CODE, followed by 4, and then the relay output time in seconds. OTE “0” /2 seconds.
- Page 8 30 - 023 Board Layout Reset Button Processor Power Harness Relay Page American Access Systems / Security Brands, Inc.
- Page 9 MASTER CODE ____________ Page 9 American Access Systems / Security Brands, Inc.
-
Page 10: Customer Service And Tech Support
CUSTOMER SERVICE AND TECH SUPPORT Customer Service: 303-799-9757 Customer service is available free of charge. Hours are 8:00 a.m. to 4:30 p.m. MST. If you call, please have your Model and Serial Number to help our Technicians assist you. E-Mail: customerservice@securitybrandsinc.com Technical Support: 303-799-9757 Technical support is available free of charge. - Page 11 NOTES Page American Access Systems / Security Brands, Inc.
- Page 12 “YOUR PARTNER IN ACCESS CONTROL” WWW.SECURITYBRANDSINC.COM SECURITY BRANDS...
