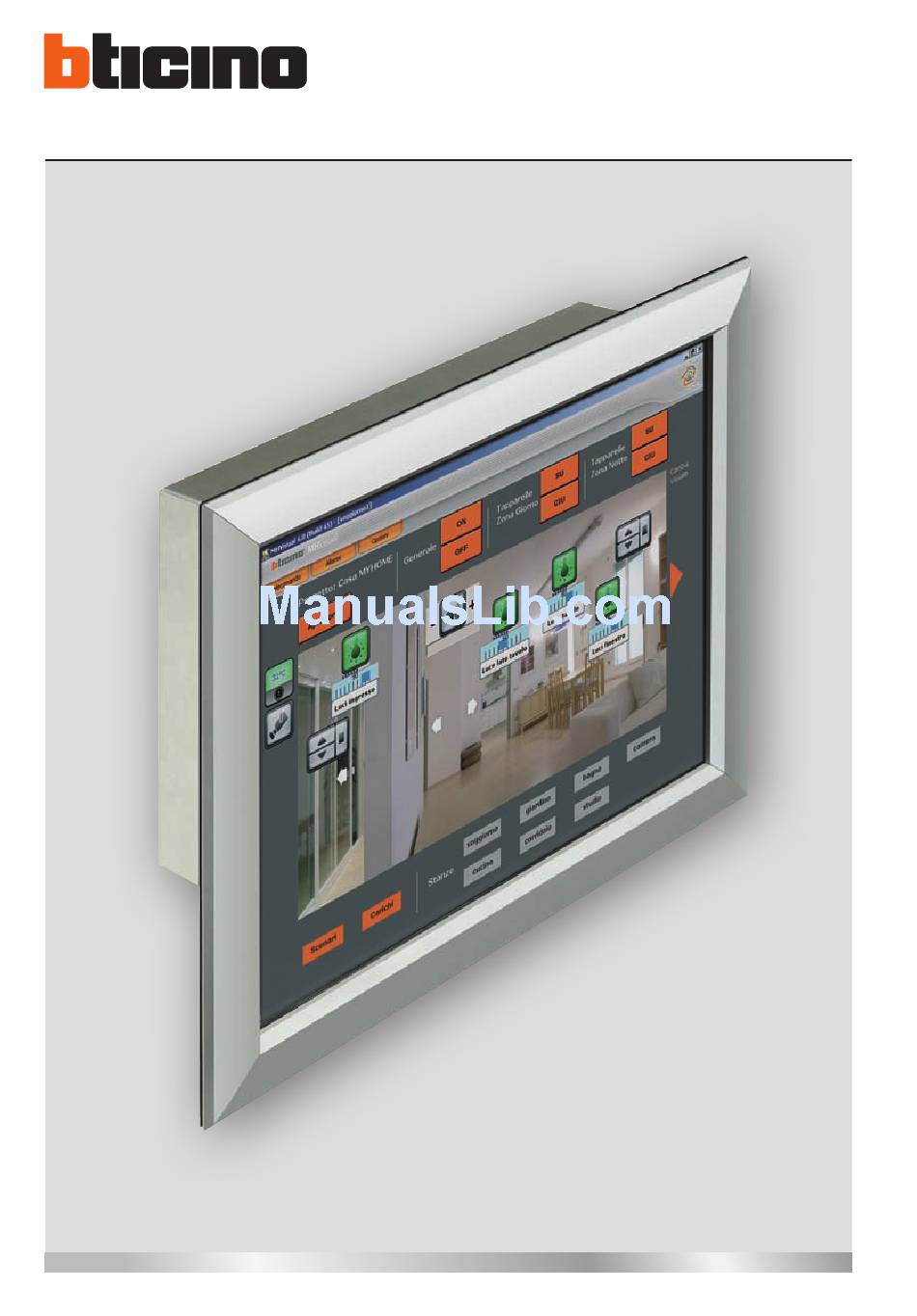

- Page 1 H4687 Video Touch Screen Installation manual 12/10-01 PC...
-
Page 3: Table Of Contents
Video Touch Screen Contents 1 Introduction 1.1 Contents of the package 1.2 Environmental considerations 2 Description Of The Video Touch Screen 2.1 Dimensions 2.2 Installation rules 2.3 Mounting 2.4 Layout of the connectors 2.5 Description of the connections 2.6 System specifications 3 Operating system 3.1 Changing the language 3.2 Operating System Version... -
Page 4: Introduction
1 Introduction Contents of the package Check the package contents, which must be made up of: • Video Touch Screen H4687 • Black 3-way power supply connector for power supply • 4 long fastening screws • Aluminum painted front frame •... -
Page 5: Description Of The Video Touch Screen
370 mm 26 mm Installation rules The product has been designed for wall installation in a Bticino box of the Multibox F215/24S series. The Video Touch Screen has an integrated power supply. It must therefore be powered directly at 230 Vac. -
Page 6: Mounting
2 Description Of The Video Touch Screen Mounting earthing point • Connect the earth wire both to the power supply socket and to the earthing point on green connector the Video Touch Screen casing. • Connect the power supply wires to the green connector (supplied). -
Page 7: Layout Of The Connectors
Video Touch Screen Layout of the connectors COM ports Ethernet Power Speaker Jack Headset jack Description of the connections The signals of the individual connectors are described in the following section. Power connector Always disable the computer’s 220 V power supply before performing any maintenance. Connect the 220 V power supply wires and the earth wire to the black connector supplied. - Page 8 2 Description Of The Video Touch Screen To connect the Video Touch Screen to an Ethernet HUB, use a straight pin-to-pin shielded cable. To connect the Video Touch Screen to another external PC use a cross-over cable as in the follow- ing diagram: PIN 1 PIN 8...
-
Page 9: System Specifications
700 mA @ 220 Vac (in “as is” HW configuration) Room temperature range 0 – 30 °C Operative humidity range 20 – 85 % without condensation Front cover Extruded aluminium Assembly BTicino Multibox F215/24S flush mounted box and drawings abel electric features... -
Page 10: Operating System
3 Operating system The operating system of the Video Touch Screen H4687, is Windows Embedded Standard 2009 MultiLanguage SP3, which has different features when compared with traditional Windows sys- tems. The installed operating system supports the following languages: • Arabic •... -
Page 11: Running The Programs Automatically
Video Touch Screen Running the programs automatically To run one or more applications automatically on system startup, follow the following procedure: • From the Desktop select Risorse del computer – C: - Documents and Settings – All Users – Start Menu – Programs – Startup. •... -
Page 12: Touch Screen
4 Touch Screen Video Touch Screen H4687 have a built-in touch screen. The touch screen is configured in the factory and the software drivers are pre-installed. No addi- tional configuration is required. Technology of the resistive touch screen Resistive touch screens are activated by touching the screen with a finger. Thus the touch screen can also be used wearing gloves or using a rounded tool. -
Page 13: Factory Settings
Video Touch Screen 5 Factory settings 1 - Preset users: • with administrator rights: login: administrator password: Admin • users with limited rights: login: User password: User login: Guest password: (not present) 2 - Autologon enabled for users with User rights 3 - Autoplay disabled 4 - Windows firewall: enabled 5 - EWF: disabled... -
Page 14: Operating System Recovery Using The Usb Key
6 Operating system recovery using the USB key The recovery USB key contains some tools act to reset the H4687 to the factory settings. 1 - Switch off the device 2 - Insert the key in the USB port. If you are using an USB hub insert the USB key in the first port. - Page 15 Video Touch Screen Option 5: This procedure allows to choose an image file and restore only D partition Option V: This procedure executes a strong procedure act to erase all data written on disk. After this proce- dure all electronic data residing on the disk are completely destroyed This procedure requires a very long time Option W: This procedure execute a light procedure act to erase all data written on disk.
- Page 16 BTicino SpA Via Messina, 38 20154 Milano - Italy www.bticino.com Bticino SpA reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
