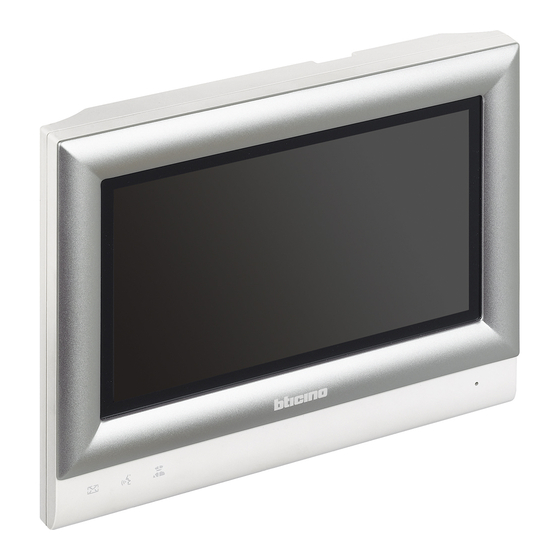

10" touch screen handsfree internal unit
Description
D45 System 10" touch screen video internal unit. Complete door entry functions with
alarm managements. International standard SOS pushbutton, intercom function,
programming device touch screen functions. Digital photo frame and camera functions.
Direct call to switchboard function. 6 different default selectable ringtones (can be
changed with your favourite music). Slot for SD CARD. Surge protection. Wall mount
installation.
Technical data
Power supply :
18-30 Vdc
Stand by absorption:
≤ 100 mA @ 30 V
Max. operating absorption: ≤ 200 mA @ 30 V
Operating temperature:
(-10)-(+40)°C
LCD display size :
10.2"
LCD display resolution :
800 x 480
Supported SD CARD :
32 Gb maximum
Supported music files :
mp3, wav, wma
Dimensional data
A
A (mm)
B (mm)
255
198
Front & side views
Rear view
14
15
16
17
18

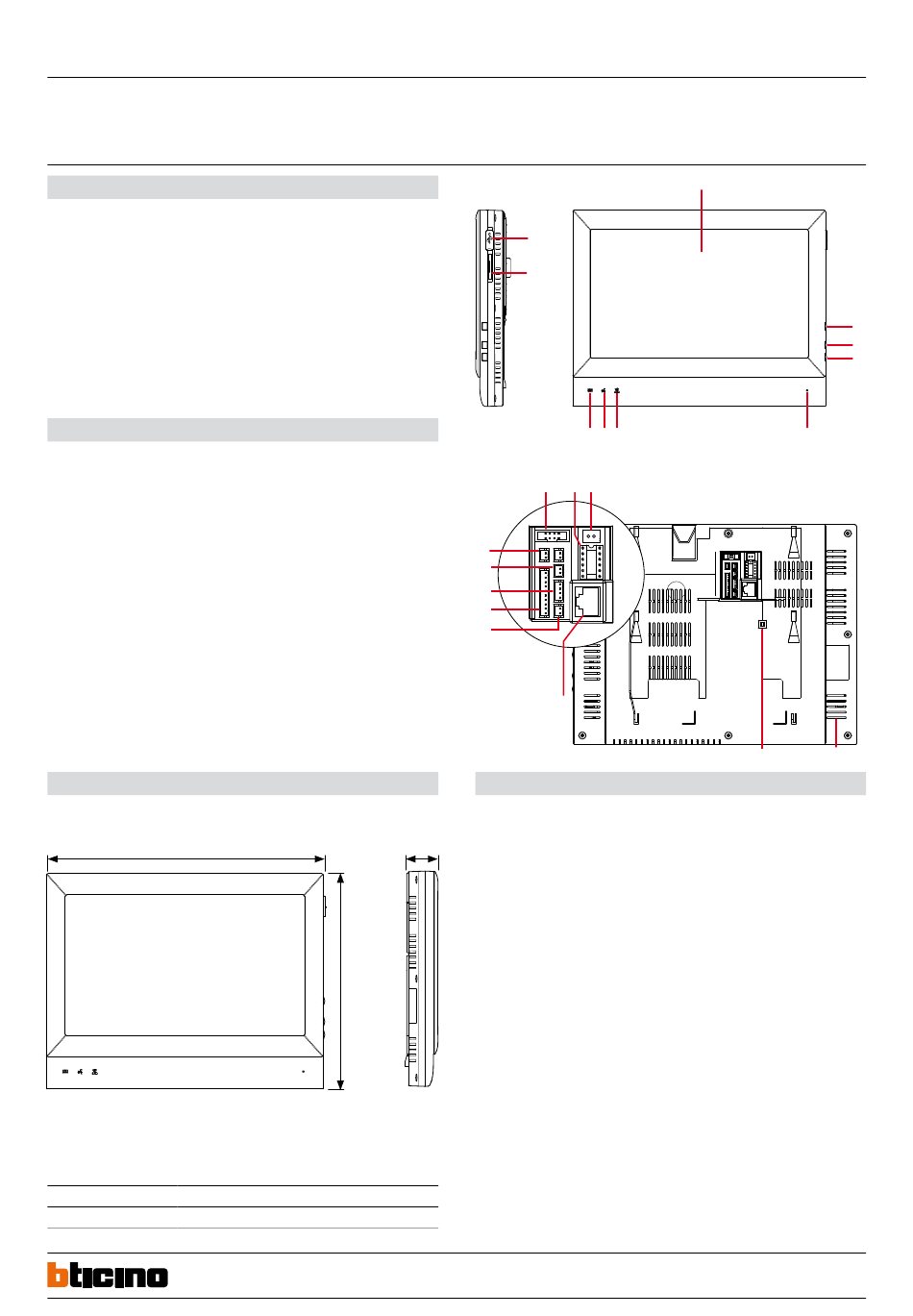

Legend
1. Mini USB port
2. SD CARD socket
C
3. Message information LED
4. Connection status LED
5. Alarm LED
6. Microphone
7. Door lock release pushbutton
8. Communication pushbutton
9. SOS pushbutton
B
10. 10" LCD touch screen display
11. Download connector
12. Configurator housing
13. Local power connector
14. Anti removal alarm sensor connector
15. SOS alarm connector
16. SEP entrance panel connector
17. Alarm sensor connector
18. Unlock device connector
19. RJ45 System BUS connector
C (mm)
20. Anti removal switch
27
21. Loudspeaker
BT00852-a-EN
03/09/2014
10
1
2
3 4 5
11 12 13
19
D45 System
321071
9
8
7
6
20
21
1
