- Page 1 Vehicle Navigation System Installation & Reference Addendum Vehicle Navigation Made Portable...
-
Page 2: Table Of Contents
ABLE OF The Magellan 750 Vehicle Navigation Made Portable Precautions ........2 Important Information: Please Read This First! DO . -
Page 3: Precautions
This symbol is intended to alert the user to the presence of important operating instructions. Failure to heed the instructions can result in injury or material damage. This symbol indicates information which can be helpful in the use of the 750 Important Information: Please Read This First! To reduce the risk of personal injury, please follow these important Dos and Do Nots.…... -
Page 4: Battery Precautions
• Check the Battery for any sign of irregularities in appearance. If any cracks or deformities are noticed, replace the Battery with a new one. Call Magellan Customer Service center at 1-877-4CARNAV (1-877-422-7628) for a replacement. •... -
Page 5: Components

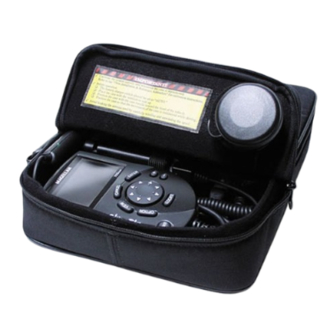

OMPONENTS If any part is missing, please contact a Magellan retailer or Magellan’s customer service department at 1-877-4-CARNAV (1-877-422-7628). Upon purchasing the 750 verify that the product box contains both a Carry Case (which contains all of the 750 components) and the Battery. - Page 6 Antenna Spool Power Adapter The 750 Carry Case has been designed to provide Magellan’s Portable Vehicle Navigation system with expandable functionality and user friendliness. Special features include the Air Vents and a Communication Port Access Flap. Additionally, the system is pre-assembled and fits neatly into specialized compartments for ease of use.
-
Page 7: Installation Preparation
NSTALLATION To optimize 750 vehicle or the 750 DO… • Position Carry Case to eliminate movement while driving with handle facing toward front of vehicle. • Place Carry Case in the same orientation each time the system is used to reduce calibration requirements. -
Page 8: Component Placement
Component Placement The 750 vehicle navigation system components are pre-assembled in the Carry Case as shown in the picture below with the exception of the Battery. Navigation Computer & Docking Station Battery Charger Power Adapter Display Expanded View of Battery Charger and System Connections Battery Antenna... -
Page 9: Battery Connection
Battery Connection It is important that the Battery be connected to the Battery Cable before using the 750 system. Please be sure that the Battery is attached to the Battery Cable each time the system is used. Battery Power Adapter Battery Charger Upon first use of the 750 Battery to the Battery Cable. -
Page 10: Moving From Fixed Vehicle Mount
When unpacking Battery, check that it is free of cracks, deformities and leakage. Replace if necessary by calling Magellan Customer Service at 1-877-4CARNAV (1-877-422-7628). Mount the Battery only in the upright position. Battery in Upright Position Open the Navigation Computer side of the Carry Case and locate the Battery Cable . Place the Battery in the Carry Case, conductor side up, under the elastic strap, and secure the fasteners. -
Page 11: Installation
Step 1: Place Carry Case in Vehicle While the preferred placement of the Carry Case depends on the vehicle being driven, place case: • On a vehicle floor or seat that allows easy driver accessibility and optimal passenger comfort; • With its Air Vent side up and with its handle facing the front of the vehicle;... - Page 12 Spool. While unwinding and routing the Antenna Wire, inspect it for damage. If the Antenna Wire shows signs of extreme kinking or insulation damage, call Magellan Customer Service department for replacement parts at 1-877-4CARNAV (1-877-422-7628). Do not pass antenna through door window to prevent damage to vehicle finish and/or antenna.
- Page 13 When mounting the Display take care to ensure that it is clear of vehicle operation, airbags and function controls. Avoid excessive force in operation! Damage may result if excessive force or leverage is applied. Take care when removing or replacing the Quick Mount Bracket and be aware that heavy accidental impacts may result in damage.
-
Page 14: Initialization
The system will restart itself. If unable to determine the correct Map Area or to register the system and obtain a permanent unlock code, please call Magellan Customer Service at 1-877-4CARNAV (1-877-422-7628). Refer to the 750 Step 5: Select ‘User 1’ again, press ENTER. - Page 15 Step 8: Scroll to ‘Vehicle-Select’, press ENTER. Step 9: Scroll to ‘System’ and choose ‘750 ’ by pressing ENTER. Step 10: Scroll to ‘Save’, press ENTER. Then press CANCEL. Step 11: Scroll to the ‘Diagnostics’ icon, press ENTER. Step 12: Scroll to ‘GPS Status’, press ENTER. Step 13: When information is displayed showing at least four (4) GPS satellites being used (indicated by a U in the U/N column), press ENTER to verify a position...
-
Page 16: Calibration
Complete the Quick Calibration Procedure when the 750 No Calibration is needed if 750 To reduce calibration time when moving the 750 Magellan suggests developing calibration profiles for the different vehicles in which the 750 on the Display, select ‘Configuration’ icon, then scroll to ‘Vehicle-Edit’... - Page 17 If using manual transmission, place foot firmly on brake and keep transmission in neutral. The ZMD indicator disappears when the 750M detects motion. Step 12: While stopped, wait for the ZMD indicator to reappear. Now repeat the acceleration and stop process four more times.
-
Page 18: Quick Calibration
is not true, refer to the ‘Troubleshooting’ section. Ensure vehicle icon is correctly displayed on the Map or press LOCATE to check current location. The ‘Full Calibration’ procedure is now complete and the 750 destination. For further instructions, consult the 750 Quick Calibration After initialization, the ‘Quick Calibration’... -
Page 19: Operations
Battery Charger The Battery Charger provides power to the 750 operation. It also incorporates a Battery Test Circuit that allows the user to check the charge on the Battery. Using the ‘BATTERY TEST’ Button and reading the five (5) multi-colored Battery Status Indicators, a user can determine the state of the Battery, from ‘LOW’... -
Page 20: Map Area Switching
Step 3: Scroll to the ‘Configuration’ icon, press ENTER. Step 4: Scroll to ‘Map Selection’, press ENTER. Step 5: Scroll to the desired Map Area and confirm that map is unlocked. If not, call Magellan Customer Service at 1-877-4CARNAV (1-877-422-7628), otherwise, press ENTER. Step 6: The 750 will ask “Confirm Map Change”. -
Page 21: Storage
Antenna Wire when winding or unwinding from the Antenna Storage Spool. While unwinding and routing the Antenna Wire, inspect it for damage. If the Antenna Wire shows signs of extreme kinking or insulation damage, call Magellan Customer Service department for replacement parts at 1-877-4CARNAV (1-877-422-7628). -
Page 22: Troubleshooting
2. Connect GPS Antenna to Docking Station. 3. Inspect GPS Antenna Wire and connector for damage, and if necessary call Magellan Customer Service at 1-877-4CARNAV (1-877-422-7628) for replacement. 4. Wait 12 – 24 minutes to receive new data and... - Page 23 Problem Display does not turn on. Possible Cause(s) 1. No power to the system. 2. Power to the 750 turned off. 3. Display is not connected. 4. Vehicle is not running. 5. Brightness/Contrast control turned down. 6. Carry Case is placed upside down.
- Page 24 1-877-4CARNAV (1-877-422-7628) 4. Not every city in the U.S. and Canada is included in the 750 map database. Magellan continues to add new cities, streets, and roads. Check avail- ability and schedule for new Map Area coverage by calling Magellan...
- Page 25 Problem Poor vehicle positioning performance. Bias or Orientation Learn Count will not increment. Possible Cause(s) 1. GPS Antenna is not connected. 2. GPS Antenna is incorrectly located. 3. Carry Case is not placed in same orientation. 4. Carry Case has shifted from its calibrated position due to a sudden stop, acceleration...
-
Page 26: 750 M Care And Maintenance
Designed to provide years of trouble-free use, the Magellan 750 maintenance. As with all electronic equipment, care should be taken to avoid system damage. Following the suggestions below will ensure maximum functionality and enjoyment of the • Most common multi-purpose cleaners will not harm the Display or Navigation Computer unit. -
Page 27: Battery Replacement & Disposal
When the original Battery included with the 750 contact Magellan to purchase a replacement. Only use batteries and chargers approved by Magellan, otherwise the warranty may be voided. To purchase a new Battery or Battery Charger contact the Magellan Customer Service department at 1-877-4CARNAV (1-877-422-7628). -
Page 28: Map Area Illustration
Magellan 750 Map Areas... - Page 29 Magellan 750 portable vehicle navigation and information system. The 750 provides 750 functionality without the need for permanent installation. Pre-assembled in a con- venient Carry Case, the 750 offers on-the-go vehicle navigation and information. The includ- ed Power Adapter, Battery and Battery Charger provide system power.
