Domain DM-DV7835BT Operation Instructions Manual
  1. Manuals
  2. Brands
  3. Domain Manuals
  4. Car Receiver
  5. DM-DV7835BT
  6. Operation instructions manual

Domain DM-DV7835BT Operation Instructions Manual

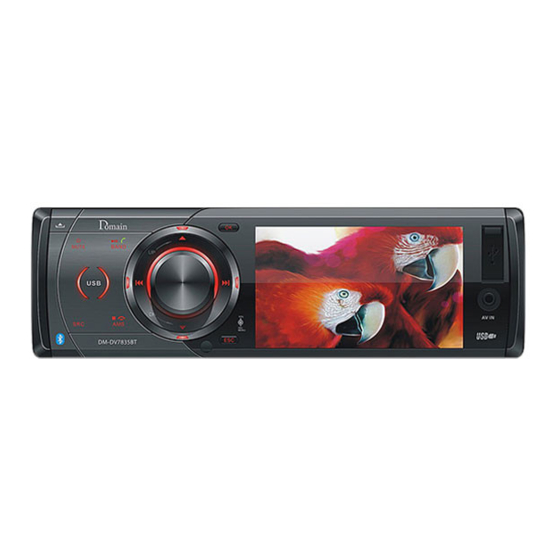

Dvd/vcd/cd/mp3/usb/sd/mmc player bluetooth, with fm/mw tuner
Hide thumbs
Table of Contents

Advertisement

Quick Links

1
2
A
B
C
D
E
F
1
2
3
69 mm
3
4
5
版本
注：
尺寸：210x142.5mm
材质:70g书写纸
颜色:黑色
装订:共32P,骑马订
型
号
9480DM7375F109A
设
计
温惠娟
担当确认
郑小虔/黄家龙/许亮华/曾龙彪
鲍静芳
检
查
营业确认
叶红慧
苏峰云
课室审核
莫宪贵
部门批准
惠州华阳通用电子有限公司
6
7
更改内容
材
质
2012-5-11
2012-5-11
加工工艺
2012-5-11
2012-5-11
物料编码
2012-5-11
127075004274
2012-5-11
DM7375F109A,INSTRUCTION
编码描述
MANUAL
6
7
8
日期
签名
A
B
C
D
E
数量
1
单位
mm
比例
1:1
F
规格
A4
页数
1 of 1
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-DV7835BT and is the answer not in the manual?

Questions and answers

Related Manuals for Domain DM-DV7835BT

Summary of Contents for Domain DM-DV7835BT

  • Page 1 版本 更改内容 日期 签名 注： 尺寸：210x142.5mm 材质:70g书写纸 颜色:黑色 装订:共32P,骑马订 69 mm 型 号 材 质 9480DM7375F109A 设 计 温惠娟 2012-5-11 担当确认 2012-5-11 加工工艺 数量 郑小虔/黄家龙/许亮华/曾龙彪 鲍静芳 检 查 单位 2012-5-11 营业确认 叶红慧 比例 2012-5-11 苏峰云 物料编码 课室审核 2012-5-11 127075004274 莫宪贵 部门批准...

  • Page 2: Operation Instructions

    DVD/VCD/CD/MP3/USB/SD/MMC PLAYER BLUETOOTH, WITH FM/MW TUNER DM-DV7835BT Operation Instructions...

  • Page 3: Safety Precautions

    Safety Precautions Never expose this unit, amplifier, and Thank you for purchasing this product. speakers to moisture or water for preventing P l e a s e r e a d t h r o u g h t h e s e o p e r a t i n g electric sparks or fires.

  • Page 4: Table Of Contents

    Safety Information Contents Caution Safety Precautions ......... 1 Safety Information .......... 2 T h i s p r o d u c t i s a C L A S S 1 L A S E R Features ............3 PRODUCT.

  • Page 5: Features

    Features DVD-R/RW Compatibility .. 1 generating) realtime broadcasting (terrestrial, .. 2 satellite, cable and/or any other media), It is possible to playback DVD-R/RW discs .. 3 broad-casting/streaming via internet, intranets recorded with the video format and Video .. 4 and/or other networks or in other electronic Recording format.

  • Page 6: Panel Controls

    Panel Controls Power on/off: Press to turn on/off the unit. 1. Panel open • AV ( a u d i o & v i d e o i n p u t . E x t e r n a l 2.

  • Page 7: Remote Controls

    Remote Controls Press to turn on/off the unit. - AMS: Search and store stations automatically 22. - DVD audio - VCD audio L/R/ST 23. - Display time/clock (Video mode) - Return to previous menu 24. - Angle (DVD only) - Terminate call (in BT mode) 25.

  • Page 8: Usb/Sd/Mmc/Mp3 Playback

    USB/SD/MMC/MP3 Playback USB/SD/MMC Notes 1. Load SD/MMC Card USB functions (flash memory type) MP3 Insert the SD/MMC card into the slot, with music play the front side at right. 1. SD/MMC card support The unit will play the music automatically and the LCD will show CARD.

  • Page 9: Basic Operations

    Basic Operations Turn on/off the Power 1. Press to turn on the unit. The unit goes back to the last status after power on. 2. Press more than 2 seconds to power off. Mute When power on, press briefly to cut the sound.

  • Page 10: Rotary Knob Menu

    Rotary Knob Menu 1. Rotate the knob to adjust volume level. 3. Press the knob more than 2 seconds to enter Setting mode, then Use 2. Short press to access the Audio&VIDEO and OK key to select setting items. Setting menu. General Setting BEEP: ON/ OFF The beep tone feature allows the selection of...
  • Page 11 Rotary Knob Menu If you forget the password, please MIRROR: ON/OFF enter 0000 to reset a new password. This option allows for selection of a mirror The password : 0000 image view when a rear view backup camera (sold separately) is connected to the CAMERA RATING: 1 KID SAFE/2 G/3 PG/4 PG13/5 IN input on the back of the radio.

  • Page 12: Language Setting

    Rotary Knob Menu LANGUAGE Setting Note: If the DVD disc has the selected language, the DVD MENU/TITLE will be displayed in the selected language. If the DVD disc does not contain the selected language, the DVD MENU/TITLE will be displayed in the default language. Radio Setting OSD LANGUAGE: Select one language that you are familiar with...
  • Page 13 If the Bluetooth function is abnormal, or you forget the pin code, when RESET ON is selected, the Bluetootch system will be cleared and return to default setting ,and the pin code also changed to “1234”. PAIR NAME Display the BT device name: DM-DV7835BT.

  • Page 14: Radio Mode

    Radio Mode Accessing Radio Mode Press the SRC button on the front panel or remote control to switch to the Radio source. 1. Source Indicator 2. Current Preset Channels 3. Time/Clock 4. AM/FM Band 5. Radio Station Frequency 6. EQ Indicator Selecting a Band Storing Stations Press BAND once or more to select FM1-...

  • Page 15: Disc Mode

    Disc Mode Accessing Disc Mode If a disc is already in the disc slot but is not playing, press the SRC button on the front panel or on the remote control to switch to the DISC source. To play files from an SD or USB that is already inserted, choose the CARD or USB source.
  • Page 16 Disc Mode Disc and File NOT Supported front panel or ENTER on the remote control to start play. *.AAC, *.DLF, *.M3U, *.PLS, MP3 PRO files 5. During the file playing, press to stop and and files with DRM. return to the sub-root. Open session discs.

  • Page 17: Stop Playback Temporarily

    Disc Mode only file names and folder names that can 2 and 7 since they do not contain any tracks be entered and displayed. Using any other directly. Folder 5 is not recognized at all since character will cause the file and folder it is at the fourth level.

  • Page 18: Disc Mode

    Disc Mode Repeat cursor and digit button to enter number. During playback, press REPEAT once or For DVD and File disc, select title and more. chapter number. - RPT icon will appear on the display. For VCD and CD, select track number. - For VCD/CD: Display appears RPT ONE - Press to play, or move the cursor to...

  • Page 19: Bluetooth Mode

    DV7835BT” appears on the pairing list on instruct to connect with the unit. After found your mobile phone, you should select it. At the Bluetooth device name “DM-DV7835BT” this time, a pairing code is required. Enter on mobile phone, you should select to connect the pairing code (“1234”...

  • Page 20: Music Mode

    Bluetooth Mode In the mode of the music player working, if front panel and remote control (if the options you want to make a phone call, you can press are available). the number keys on the mobile phone or on the remote control, then press to dial.

  • Page 21: Bluetooth Mode

    At this time you must find the unit’s Bluetooth module name “DM-DV7835BT” on the pairing list on your mobile phone and select it. In the submenu, select connecting, then the unit will appear pair OK.

  • Page 22: Device Connections

    Device Connections Notes of Connection If a proper fuse is installed and electrical problems still occur, please contact with • T o avoid short circuit in the electrical any professional car shops for inquiry. system, ensure that the negative battery • D O NOT connect other equipments with the cable is disconnected before installation.
  • Page 23 Device Connections Wiring Diagram...

  • Page 24: Installation Guide

    Installation Guide Device Connections Preparation Using the ISO Connector 1. If your car is equipped with the ISO 1. Disconnect battery connector, then connect the ISO connectors Before you begin, always disconnect the as illustrated. battery negative terminal. 2. F o r c o n n e c t i o n s w i t h o u t t h e I S O connectors, check the wiring in the vehicle carefully before connecting, incorrect Note:...
  • Page 25 Installation Guide Kit Installation sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of I f y o u r v e h i c l e r e q u i r e s t h e u s e o f a n the tabs outward as necessary to firmly installation kit to mount this unit, follow the secure the sleeve to the dashboard.

  • Page 26: Anti-Theft System

    Installation Guide Anti-Theft System 4. Wire the new unit as outlined in the T his unit is desi gned with a flip- down Mounting Sleeve Installation instructions. detachable panel. 5. Mount the new unit assembly to the The panel can be detached and taken with dashboard or center console using the you, helping to deter theft.

  • Page 27: Troubleshooting

    Troubleshooting If you suspect something is wrong, immediately switch power off. Immediately stop using it and call the store where you purchased it. Never try to repair the unit by yourself because it is dangerous to do so. Problem Possible cause Solution General Car ignition is not on.

  • Page 28: Care And Maintenance

    Care and Maintenance DVD Player The following guidelines will help you extend the life of your DVD player: 1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit. 2. The DVD player will not operate properly in extreme hot/cold or under damp conditions. In case of such conditions, wait until the vehicle interior reaches a normal temperature or any condensation on the disc player lens has evaporated before using the player.

  • Page 29: Specifications

    Specifications General Power supply: 12VDC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 50W x 4 channels Continuous power output: 20W x 4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8ohm Pre-Amp output voltage: 2.0V (CD play mode: 1KHz, 0dB, 10K load) Fuse: Dimensions (WxHxD):...
  • Page 30 CLASS 1 LASER PRODUCT P.N.: 127075004274...
