Summary of Contents for Domain TA-168BT

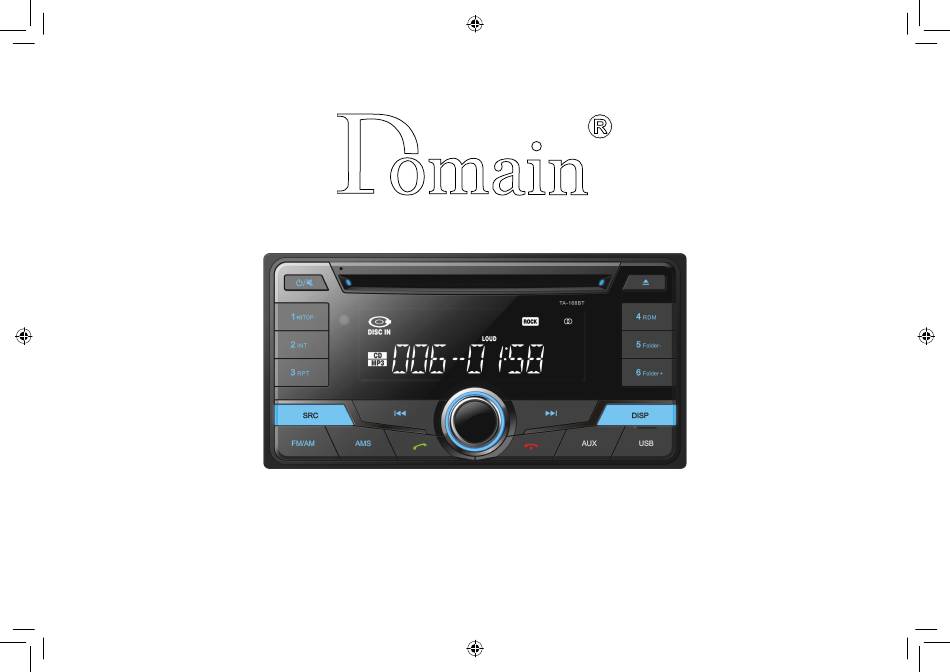

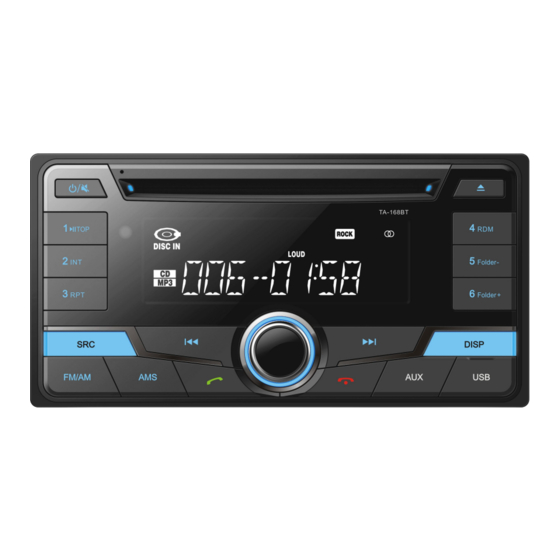

- Page 1 TA-168BT CD Player/ USB Control/ Bluetooth A2DP/ AUX In PLAYER FM/AM TUNER Operating Instructions...
-
Page 2: Table Of Contents
Safety Information Contents CD NOTES Thank you for purchasing this product. Please Safety Information ......... 2 read through these operating instructions Playing a defective or dusty CD can cause Panel Controls ..........3 so you will know how to operate your model dropouts in sound. -
Page 3: Panel Controls
Panel Controls 1. Power on Button 6: - Folder up search 6. Decline Call/End Call/Disconnect (Press & - Mute - MP3 track +10 up hold) - Power off (Press & Hold) Button 1-6 Preset: 7. AUX in 3.5mm Jack 2. SRC - Press to tune in a preset station 8. -
Page 4: Remote Controls
Remote Controls Operating range Replacing the lithium battery of 5. - Loudness 6. - FM stereo/mono remote control unit. Point the remote control unit to the remote 7. - CD playback sensor when you operate with it. When the operation range of the card remote Button 1: Press briefly for Play/Pause function. -
Page 5: General Operation
General Operation Sound Setting Auxiliary Input Press the [VOL] knob to enter sound effect Power On/Off Button setting mode. First press shows current EQ. To access an auxiliary device: Press the button to turn the unit on Rotate the knob to changes BEAT EQ in this 1. -
Page 6: Tuner Operation
Tuner Operation FM/AM Band During radio play, press the FM/AM button to choose between three FM and two AM bands. The indication “AM” or “FM” appears on the display panel according to your selection. Up Tuning Long press [>>|] button to turn on "MANU ON", then press the seek up [>>|] button to tune stations upward step-by-step. -
Page 7: Cd Player Operation
CD Player Operation Inserting a Disc Seek Up/Next Track current folder. Repeat play will continue until RPT is pressed to select “RPT OFF”. With the label surface facing up, fully insert Press the next track >>| button during disc play a compact disc into the disc slot until the to select the beginning of the next track. -
Page 8: Playing Mp3/Wma Files
Playing MP3/WMA Files Display Information 2. Rotate the knob to select the desired not function properly. directory/song. *VBR: Variable Bit Rate. During playback, ID3 tag information display 3. Press the knob to view the files inside the scrolling on the screen: FOLDER, FILE, Note on creating your own CD-Rs or selected directory. -
Page 9: System Menu
System Menu USB MP3 Playback 1. Loading USB device Press and hold the knob more than 2 seconds to TAG information cyclely. Insert the USB to the unit, USB source will enter menu mode , then each press changes the When SCROLL is OFF, the LCD just display show up in the screen and the songs will mode as follows:... -
Page 10: Bluetooth Operation
1. For some types of mobile phones, during search for Bluetooth devices. our test, after the mobile phones appear 3. A name “Domain” will appear on a list of Call Transfer connection successful, the unit still appear Bluetooth search device. Choose the... -
Page 11: Reset
Bluetooth Operation Reset it play back A2DP, you must find the unit Press the RESET button with a pointed object name in the phone’s menu and reconnect to reset the unit to the original status. (check your mobile phone whether has the Note: Press the RESET button will erase the A2DP &... -
Page 12: Electrical Connections
Electrical Connections Wiring Diagram ANTENNA... -
Page 13: Troubleshooting
Troubleshooting The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting it, check the connections and follow the instructions in the user manual. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell can cause fire or electric shock, immediately stop using it and call the store where you purchased it. -
Page 14: Specifications
Specification General Disc Player 12V DC (11V-16V) System: Disc digital audio system Power supply: Test voltage 14.4V, negative ground Frequency response: 20Hz-20kHz Maximum power output: 45Wx4 channels Signal/noise ratio: >80dB Total harmonic distortion: Less than 0.20% (1kHz) Continuous power output: 25Wx4 channels (4 ,10% T.H.D.) Wow and flutter: Below measurable limits... - Page 15 PN:127075007162...
