Shurhold 3100 User Manual

Shurhold 3100 User Manual

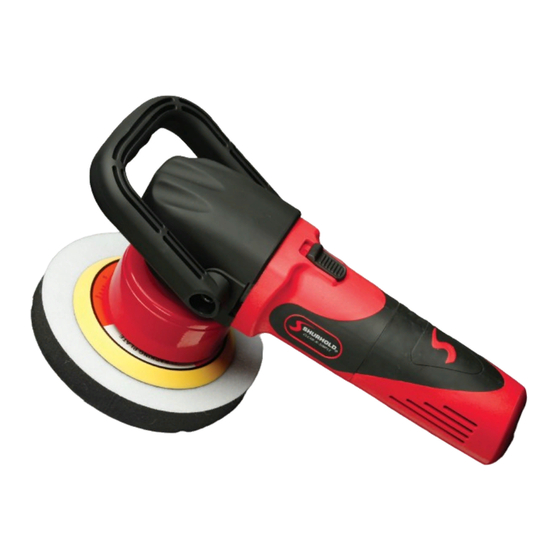

Dual action polisher

Advertisement

DUAL ACTION
POLISHER
USER'S GUIDE
SAFETY NOTES • FEATURES • INSTRUCTIONS • MAINTENANCE & CARE • MORE
ES
MANUAL DE
INSTRUCCIONES
ESPECIFICACIONES TÉCNICAS
LISTA DE PIEZAS
NOTAS SOBRE SEGURIDAD
INSTRUCCIONES
MANTENIMIENTO Y CUIDADO
GARANTÍA
FR
MANUEL DE
L'UTILISATEUR
SPÉCIFICATIONS
LISTE DES PIÈCES
CONSIGNES DE SÉCURITÉ
INSTRUCTIONS
MAINTENANCE ET ENTRETIEN
GARANTIE
IT
MANUALE DI
ISTRUZIONI
SPECIFICHE
ELENCO DELLE PARTI
NOTE DI SICUREZZA
ISTRUZIONI
MANUTENZIONE E CURA
GARANZIA
8mm
ORBIT
NL
INSTRUCTIE-
HANDLEIDING
SPECIFICATIES
ONDERDELENLIJST
VEILIGHEIDSWENKEN
INSTRUCTIES
ZORG EN ONDERHOUD
GARANTIE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shurhold 3100

  • Page 1 DUAL ACTION POLISHER ORBIT USER’S GUIDE SAFETY NOTES • FEATURES • INSTRUCTIONS • MAINTENANCE & CARE • MORE MANUAL DE MANUEL DE MANUALE DI INSTRUCTIE- INSTRUCCIONES L’UTILISATEUR ISTRUZIONI HANDLEIDING ESPECIFICACIONES TÉCNICAS SPÉCIFICATIONS SPECIFICHE SPECIFICATIES LISTA DE PIEZAS LISTE DES PIÈCES ELENCO DELLE PARTI ONDERDELENLIJST NOTAS SOBRE SEGURIDAD...
  • Page 2: Table Of Contents

    How to Care for Waxing and Polishing Pads .................7 How to Wax and Polish ......................8 How to Remove Oxidation .......................10 Dual Action Polisher Accessories ..................12 Shurhold Detailing Products ....................14 Manual de instrucciones ....................16 Manuel de l’utilisateur ....................18 Manuale di istruzioni .......................20 Instructie-handleiding .....................22...
  • Page 3: Safety Notes

    Complaints will only be acknowledged if the equipment has not been dismantled before being sent back to the suppliers or to an authorized SHURHOLD customer support workshop. Store the operating instructions, safety notes, spare parts list and proof of purchase in a safe place. In addition, the manufacturer’s current warranty conditions apply.
  • Page 4: Basic Instructions

    BASIC INSTRUCTIONS CHANGING THE BACKING PLATE To reduce the risk of injury, turn unit off and disconnect it from the power source before installing and removing accessories, before adjusting or making repairs. An accidental start-up can cause injury. a. Engage the flats of the spindle with the supplied spindle wrench.
  • Page 5 See diagram on the right. • DO NOT apply additional pressure. Allow the polisher to work under its own weight. • DO NOT mix products (wax, polish, cleaner, etc.) on the same pad. Label each pad to prevent confusion. www.shurhold.com...
  • Page 6: Maintenance & Care Of Dual Action Polisher

    MAINTENANCE & CARE Always remove the power supply plug from the socket before carrying out any work on the machine. The cool air openings in the motor casing must always be kept clean and unobstructed to ensure air circulation. With the exception of carbon brush replacement (see below), all maintenance and repair work which requires the motor casing to be opened may only be carried out by an authorized service center.
  • Page 7: How To Care For Waxing And Polishing Pads

    Also great for microfiber and cotton bonnets. Visit www.shurhold.com/cleanpads for the latest in how-to videos including the proper cleaning and care of buffing pads. Nothing is worse than getting ready to start a job with your Polisher and realizing your pads are all dirty and gunked up from the previous application.
  • Page 8: How To Wax And Polish

    Prior to the use of your Shurhold Dual Action Polisher, be sure your boat, car or other desired surface is clean and dry. Avoid using your polisher on a dirty surface, it may cause damage, such as scratches or swirls, to the paint or gel coat.
  • Page 9 Bonnet into the same pattern as Step 5, but on speed 2. You will notice the vapor barrier on the inside of the Microfiber Bonnet. This unique design is to prevent any Pro Polish or wax from transferring onto the Bonnet. www.shurhold.com...
  • Page 10: How To Remove Oxidation

    Visit www.shurhold.com/buffmagic for the latest in how-to videos including the proper technique for oxidation removal. Your Shurhold Dual Action Polisher is the perfect tool for removing minor defects in paint and gel coat. Defects such as scratches, oxidation, scuffs, chemical etching, swirl and sand marks can be repaired with the use of the Buff Magic Pad, Buff Magic, and Dual Action Polisher.
  • Page 11 For best results, use Buff Magic, Buff Magic Pad, and our pad fluffing brush and follow the steps below: STEP 1 Choose the pad for the job. We recommend using Shurhold’s Wool (medium cutting) or Foam Buff Magic (light cutting) Pad. Be sure to start the job with a clean, dry pad. STEP 2 Use a clean, small paint brush and apply a series of X’s to a small 2 foot square area.
  • Page 12: Dual Action Polisher Accessories

    DUAL ACTION POLISHER RECOMMENDED PRODUCT USE Buff Magic Pad Pro Polish Pad Microfiber & Buff Magic & Pro Polish Bonnet Speed Setting: 3 - 5 Speed Setting: 2 - 3 Speed Setting: 1 - 2 Surface Condition STEP 2 STEP 1 STEP 3 Protect and Seal by 2 - 3 Passes to Remove...
  • Page 13 Mixed with water this cleaner unique spot scrubber on handle. dissolves compounds and waxes from wool, foam and blended buffing pads cleaning them to be used over and over. Also great for micro- fiber and cotton bonnets. www.shurhold.com...
  • Page 14: Shurhold Detailing Products

    DETAILING PRODUCTS SHURHOLD HANDLES Shurhold’s exclusive SHUR-LOK quick release system positively locks any Shurhold handle quickly and easily with all Shurhold accessories. All handles are made of high strength, corrosion resistant, lightweight aluminum. PREMIUM BRUSHES Our premium deck brushes feature an angled head and flared bristles from extra soft to stiff.
  • Page 15 It’s wide enough to fit most Shurhold brushes. Plus, the tapered design allows stacking of multiple buckets for compact storage. Scan now to see our full line.
  • Page 16: Es Manual De Instrucciones

    MANUAL DE INSTRUCCIONES LISTA DE PIEZAS b. Aplique una pequeña cantidad del producto directa- (consulte el diagrama en la página 24) mente en la almohadilla para pulido. c. Agarre con firmeza la pulidora con ambas manos: A 1 - Pulidora de acción doble con cable de aliment- una mano sobre el mango auxiliar y la otra sobre el ación alojamiento del motor.
  • Page 17 Se aceptarán reclamaciones siempre que no se haya desarmado el equipo antes de devolverlo a los proveedores o a un taller autorizado de atención al cliente de SHURHOLD. Conserve las instrucciones de funcionamiento, las notas de seguridad, la lista de piezas de repuesto y el comprobante de compra en un lugar seguro. Además, se aplican las condiciones de garantía vigentes del fabricante.
  • Page 18: Fr Manuel De L'utilisateur

    MANUEL DE L’UTILISATEUR LISTE DES PIÈCES b. Appliquer une petite quantité du produit directement (référez-vous au schéma à la page 24) sur le tampon à polir. c. Tenir fermement la polisseuse avec les deux mains, A 1 - Polisseuse double action avec cordon l’une sur la poignée secondaire et l’autre sur le boîtier du d’alimentation moteur.
  • Page 19 Les réclamations ne sont prises en compte que lorsque l’équipement est renvoyé intact aux fournisseurs ou à un centre d’assistance clientèle SHURHOLD autorisé. Conserver le mode d’emploi, les consignes de sécurité, la liste des pièces de rechange et la preuve d’achat en lieu sûr. Par ailleurs, les conditions de garantie actuelles définies par le fabricant sont applicables.
  • Page 20: It Manuale Di Istruzioni

    MANUALE DI ISTRUZIONI ELENCO DELLE PARTI b. Applicare una piccola quantità di prodotto diretta- (fare riferimento al diagramma a pagina 24) mente sul cuscinetto di lucidatura. c. Afferrare il lucidatore saldamente con entrambe A 1 - Lucidatore a doppia azione con cavo di le mani: una mano sull’impugnatura ausiliaria e una alimentazione GFCI da 6 m...
  • Page 21 I reclami saranno accettati solo se l’apparecchiatura non è stata smontata prima di essere restituita ai fornitori o ad un’officina di supporto clienti autorizzata SHURHOLD. Conservare le istruzioni operative, le note sulla sicurezza, l’elenco delle parti di ricambio e la prova di acquisto in un luogo sicuro. Inoltre, valgono le attuali condizioni di garanzia del produttore.
  • Page 22: Nl Instructie-Handleiding

    INSTRUCTIE-HANDLEIDING ONDERDELENLIJST rechtstreeks op het polijstkussen aan. (zie afbeelding op pagina 24) c. Pak het polijstapparaat met beide handen stevig vast – één hand op de hulphandgreep en één op de behuizing A 1 - Polijstmachine met dubbele van de motor. werking met GFCI-netsnoer van 6,0 m d.
  • Page 23 Bovendien zijn de huidige garantievoorwaarden van de fabrikant van toepassing. Ga naar www.shurhold.com/register voor nadere informatie over de garantie en klachten. NB: We behouden ons het recht voor om de technische gegevens in deze handleiding op basis van doorlopend onderzoek en ontwikkelingswerk te wijzigen.
  • Page 24: Specifications/Parts List

    3119 S.W. 42nd Avenue • Palm City, Florida 34990-5558 Tel: 772-287-1313 • Fax: 772-286-9620 • email: info@shurhold.com ©2015, Shurhold Industries, Inc. All rights reserved. We reserve the right to make changes to the technical data contained in this information as a result of ongoing research and development work.
