Bush DFTA47HDR Quick Start Manual

High definition digital set top box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

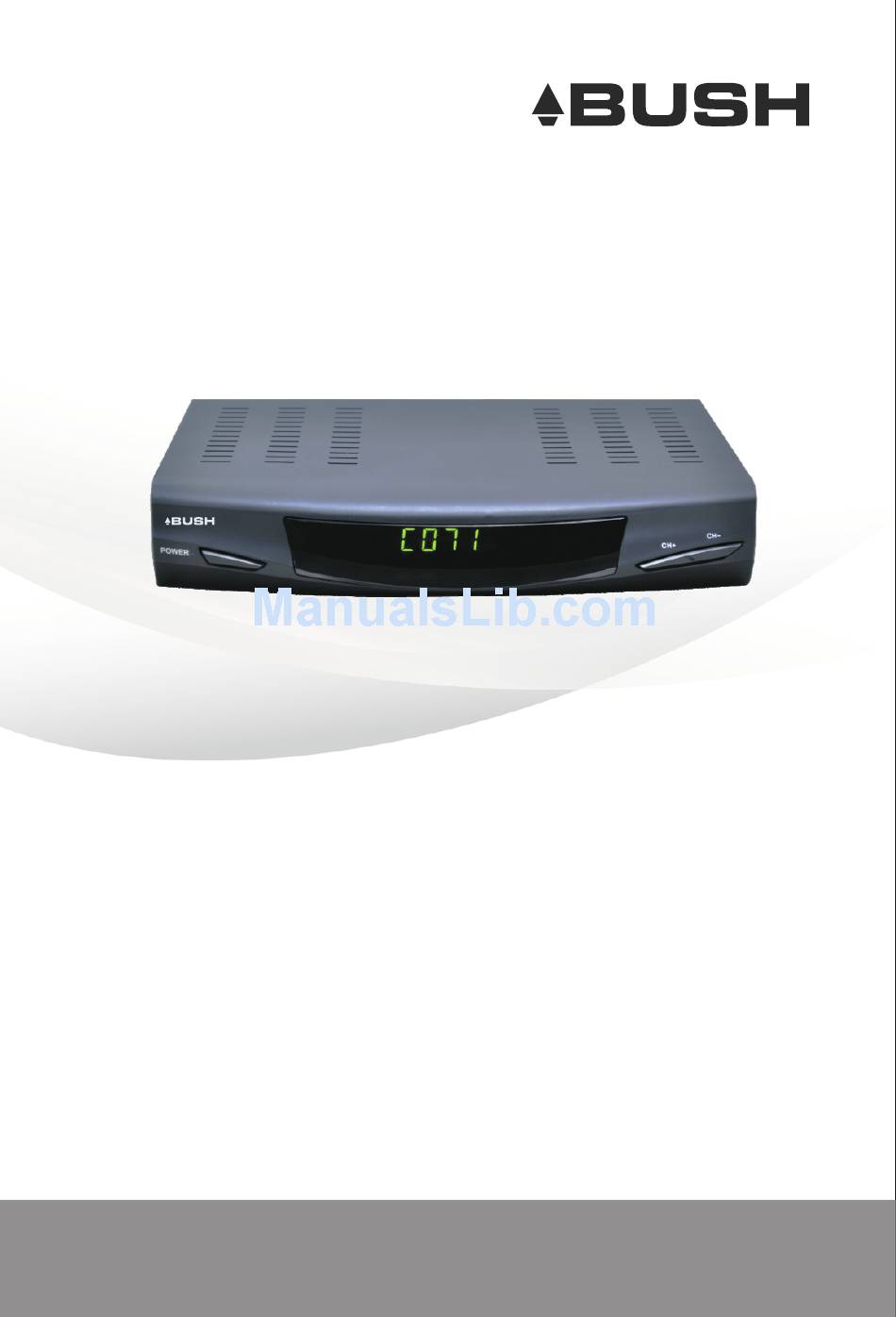

High Definition
Digital Set Top Box
DFTA47HDR
Quick Star t Infor mation:
1.Connect your aerial cable to your unit.
2.Connect Power Supply to your unit & wall outlet.
3.Connect the supplied composite & audio cable
(Yellow, Red, White) between the STB & Television
4.Insert batteries in the remote control.
5.Switch on and follow on screen instructions.
www.bushaustralia.com.au

Advertisement

Table of Contents
loading

Related Manuals for Bush DFTA47HDR

Summary of Contents for Bush DFTA47HDR

  • Page 1 High Definition Digital Set Top Box DFTA47HDR Quick Star t Infor mation: 1.Connect your aerial cable to your unit. 2.Connect Power Supply to your unit & wall outlet. 3.Connect the supplied composite & audio cable (Yellow, Red, White) between the STB & Television 4.Insert batteries in the remote control.
  • Page 2 DFTA47HDR...

  • Page 3: Table Of Contents

    DFTA47HDR Contents Introduction…………………………………………..Main features and functions…………………….... Features……………………………………………..Remote control............. Battery installation..........Programming your learning remote control……..Front and rear panels…………………………….... Rear panel............Front panel............Installation…………………………………………... Connecting the receiver……………………....Installation guide………………………………….... Basic operation……………………………………... Program settings........... Picture setting............Channel search............. Time setting............

  • Page 4: Introduction

    DFTA47HDR Introduction This user manual is intended to guide you through the operation for the Bush DFTA47HDR High Definition DVBT Terrestrial Receiver. The password may be required when you attempt to modify some advanced settings. The default password is“000000”. Main features and functions This product is a high definition digital set top box.

  • Page 5: Remote Control

    DFTA47HDR 15. Supports 4:3 and 16:9 Aspect Ratios 16. Supports Teletext (where broadcast) 17. Subtitles supported based upon availability on the network 18. Channel editing functions (Favorites, Move, Lock, Delete) 19. Supports HDMI High Definition Multimedia Interface(HDMI 1.3 ) 20. USB 2.0 Input supports mp3, wma, jpeg and bmp media playback and Software Upgrade.
  • Page 6 DFTA47HDR Key legend Description Home Press at any time to return to the first scanned in Channel Power Switches the Set Top Box between On and Standby Press to Mute all audio TV/Radio Switch between TV and Radio mode Swap...
  • Page 7 DFTA47HDR Press REC key to record the current program while watching TV program PREV/ Previous/Next track NEXT FR/FF Press these keys to fast forward or rewind during playback Press STOP key to stop recording program or stop a STOP program during playback...

  • Page 8: Battery Installation

    DFTA47HDR allation Battery inst Insert the batteries while observing the correct (+) and (-) polarities as illustrated below: About the batteries: If the remote control unit fails to work even when it is operated near the set top box, please replace the batteries.

  • Page 9: Front And Rear Panels

    DFTA47HDR Front and rear panels Rear panel DFTA47HDR High Definition Digital Set Top Box POWER SUPPLY:AC 230V~50Hz MAX POWER CONSUMPTION:8WATTS SPDIF CVBS AUDIO RF IN LOOP OUT HDMI RF IN Aerial Input LOOP OUT Output of Digital Terrestrial TV Broadcast signal - e.g.

  • Page 10: Front Panel

    DFTA47HDR Front panel A red LED indicator on the front panel with the clock displaying the time will indicate if the set top box is in standby mode whilst the green LED with a channel number is an indication that the set top box is operational.
  • Page 11 DFTA47HDR OPTION 1 Connect the STB receiver via composite video and audio (For standard definition viewing) 1. Connect the antenna to the RF IN socket on the receiver. 2. Connect the receiver to the TV set via the red, white and yellow composite AV cables.
  • Page 12 DFTA47HDR OPTION 2 Connect the STB receiver via YPbPr output and audio output (For standard definition viewing) Connect the antenna to the ANT IN socket on the receiver. Connect the receiver to the TV set via the green, red and blue component AV cables (this will provide video), and the composite red and white cables (which will provide audio).
  • Page 13 DFTA47HDR OPTION 3 Connect the STB receiver via HDMI (For optimum high definition viewing) Connect the antenna to the ANT IN socket on the receiver. Connect the receiver to the TV set via a HDMI cable. This will provide both video and audio.

  • Page 14: Installation Guide

    DFTA47HDR Installation guide Ensure that all connections have been made properly, turn on the TV and make sure the receiver is connected to the Main Power. Make sure that the on/off switch on the back panel of the set top box is switched to on.

  • Page 15: Basic Operation

    DFTA47HDR Basic operation Program settings To access the Menu, 1. Press the MENU button. To access the program settings, 1. Select Program. 2. Press OK. The Menu provides options to adjust the Program settings. 1. Select an option. 2. Press OK or RIGHT to adjust that setting.
  • Page 16 DFTA47HDR Program Edit To edit your program preferences (Move, Skip, Lock, Delete or set as a Favourite), you will need to enter the Program Edit Menu.This Menu requires a password to access. Enter the default password '000000'. EPG (Electronic program guide) The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel (when broadcast).

  • Page 17: Picture Setting

    DFTA47HDR You can use the LEFT/RIGHT to view what is on other channels. Press the red key to skip forward 24 hours, and the green key to skip back 24 hours. Press the INFO key to book programme reminders .
  • Page 18 DFTA47HDR Aspect Ratio Set the display format to one of the following to select the best display for your television 4:3 Full 4:3 Pan & Scan 4:3 Letter Box 16:9 Full Screen Auto Resolution If the video does not appear correctly, change the setting. The default setting is to match the most common setting for HDMI, is 1080i.

  • Page 19: Channel Search

    DFTA47HDR Channel search 1. Press MENU and select Channel. 2. Press OK. The Menu provides options to adjust the channel search settings. 1. Select an option and press RIGHT/LEFT to adjust the settings. 2. Press EXIT to exit the Menu.
  • Page 20 DFTA47HDR This option will search and install all channels automatically. This option overwrites all preset channels. 1. Select Auto Search and press OK or RIGHT to start channel search. 2. To cancel channel search at any time, press EXIT. Manual search This option allows you to install new channels manually.

  • Page 21: Time Setting

    DFTA47HDR Country Select your country of residence in the list displayed. Antenna power This function allows you to enable Antenna Power if an external active antenna is connected. Time setting 1. Press MENU. 2. Select Time, and then press OK.
  • Page 22 DFTA47HDR Country region Modify based on the region where the set top box is installed. Time zone May be customised when the time offset is set to manual. Sleep Allows the set top box to be programmed to switch off automatically after a set period of time.

  • Page 23: Option

    DFTA47HDR Option 1. Press MENU and then select Option. 2. Press OK. The menu provides options to adjust multiple language and user settings. 3. Select an option and press RIGHT/LEFT to adjust the setting. 4. Press EXIT to exit the Menu.

  • Page 24: System Setting

    DFTA47HDR Digital audio Modify the format of digital audio being output between PCM, RAW and Off. OSD Transparency Customises the transparency of the on screen display including information and the menu. Audible Feedback When turned on this function provides a beep via the audio to advise the user that the set top box has received the remote control command.

  • Page 25: Usb

    DFTA47HDR Parental Guidance You can restrict access to channels by rating that are unsuitable for children. To restrict/lock the channel you will need to enter either the default password '000000' or your own password (if you have modified it). Set Password 1.
  • Page 26 DFTA47HDR Lip Sync Control You can adjust the lip sync control time is 10 to 200ms. This function provides the ability to playback multimedia or upgrade the set top box via the USB port. 1. Press MENU and select USB.
  • Page 27 DFTA47HDR Multimedia Select to play back multimedia including music ，photo，movie,PVR files via USB. Photo Configure This allows the user to customise slide time, the mode that the slides appear via, and the image aspect ratio.
  • Page 28 DFTA47HDR Movie Configure This allows the user to customise the Subtitle Specific, Subtitle background and Subtitle Font-colour.
  • Page 29 DFTA47HDR PVR Configure Record Device, here you can view information of your connected USB storage device which includes Format Type, Total and Free space available on drive. You can adjust the Timeshift Size from 0.5GB to 4.0GB, step-by-step is 0.5GB.
  • Page 30 DFTA47HDR A Format hard disk function has also been provided. Formatting a hard disk will permanently delete all the data on the hard disk. It is strongly recommended to backup all the data before formatting your hard disk drive. PVR Function The PVR function of your receiver allows you to record and playback your favourite programs.
  • Page 31 DFTA47HDR 2)Electronic Program Guide Timer recording You will never miss any of your favourite programs again with the Electronic Program Guide recording feature. While in TV mode, press the “GUIDE” key to access the on screen Electronic Program Guide, select the channel and program you wish to record.
  • Page 32 DFTA47HDR 3)TIMESHIFT The TIMESHIFT function allows you to pause the TV program being viewed. Once paused the tv program is being stored on your connected USB Hard Drive or Flash Drive. When watching a program, press the “PAUSE” key on the remote control to activate the function.
  • Page 33 DFTA47HDR 4)Playback of a recorded program When you want to playback of a recorded program,follow the step below,it can display the recorded programs. 1.Press MENU and select USB 2.Press OK 3.Select the PVR 4.Choose the HBPVR folder Follow the help information at the bottom of the screen to preview,...

  • Page 34: Specifications

    DFTA47HDR Specifications Tuner Input Connector IEC 16902. Female Input Frequency Range VHF&UHF Number of RF Inputs Input impedance 75 ohm Loop through 47-862 MHz Demodulation Standard ETSI EN300 744 Guard interval Modes 1/32,1/16,1/8 Active Symbol duration FEC Modes Rate All modes supported including non...
  • Page 35 DFTA47HDR Video Decoder Standard ISO/IEC 13818-2 and ISO/IEC 14496-10 Transport ISO/IEC 13818-1 stream MPEG-2 SD/HD (MP@ML and MP@HL), Video decoding MPEG-4H.264/AVC SD/HD X3.X ~ 6.X JPEG,BMP,PNG, Motion JPEG Aspect ratio 4:3, 16:9 Audio Decoder Standard ISO/IEC13818-3 TR1011154 MPEG-1 and MPEG-2 Layer I & II, Dolby Digital...
  • Page 36 DFTA47HDR Front Panel IR activity LED Bi-colored LED To display the time,channel number or/and other 4-segments LED information POWER,CH+,CH- Keys Accessories Remote Control Remote control unit Batteries 2 x AAA User Manual 1 in English Quick Start Guide 1 in English...

  • Page 37: Product Warranty

    DFTA47HDR Product Warranty Keep your receipt or proof of installation as proof of purchase. This product is warranted for any defect in materials or workmanship for one year after the original date of purchase. This product is for normal domestic and office use only.

  • Page 38: Your Warranty

    YOUR WARRANTY For any Warranty Enquires,please call: 1300 055 518 Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure...
