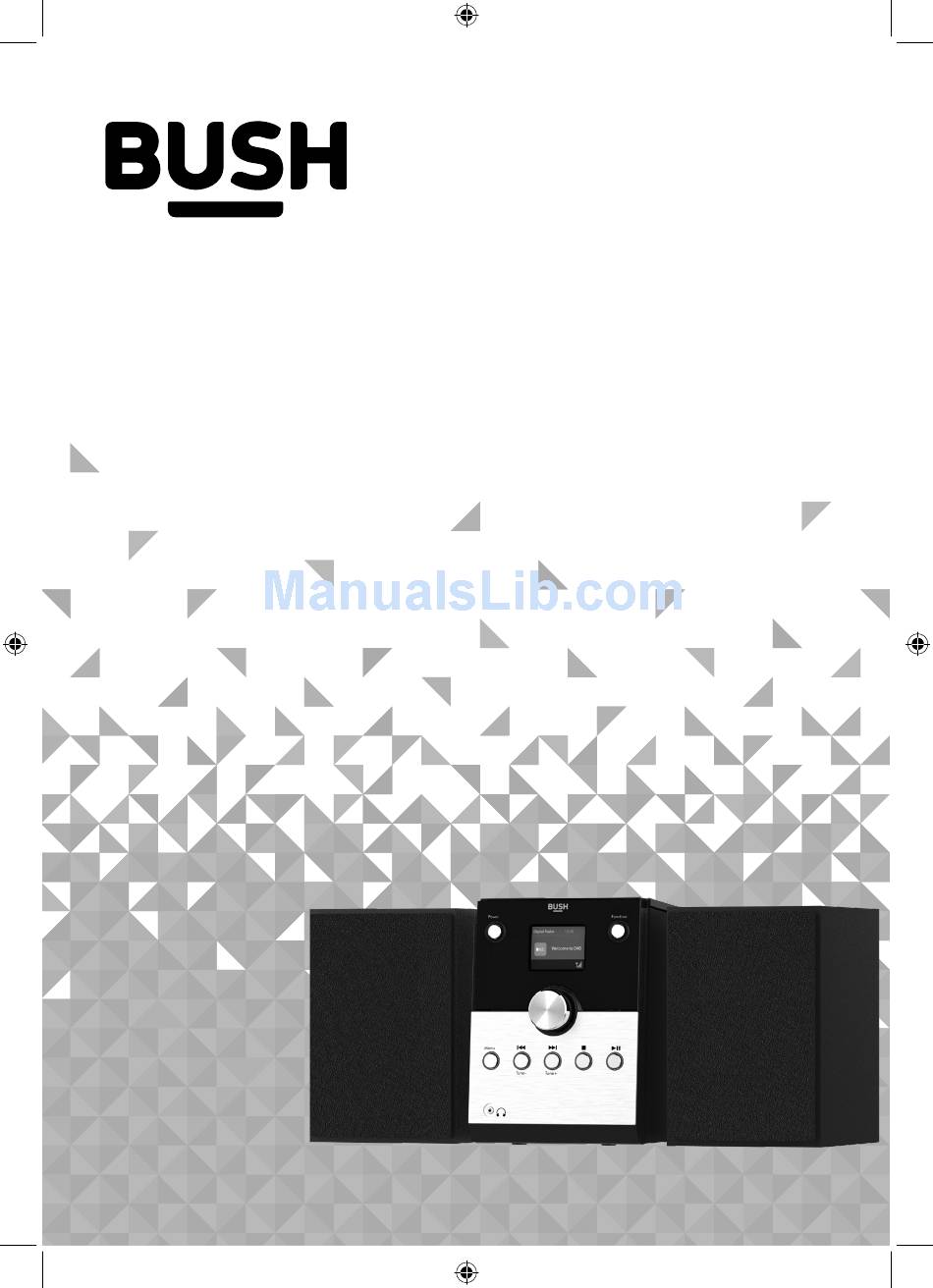

Instruction manual DAB Micro System with Bluetooth BD-618TFT...
Page 2
You’ll soon be enjoying your new DAB Micro System with Bluetooth. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started.
Contents Safety information Safety information Getting to know your DAB Micro System Power connection Initial set-up Change the mode Adjusting the volume Mute Equaliser or EQ setting Using the Menu Connect to a Bluetooth device Using your DAB Micro System DAB radio mode Wire radio aerial Changing DAB stations...
Page 4
Contents Storing an FM station preset Tune to an FM station preset FM display information CD Mode Programmed play mode Repeat and Random modes Bluetooth mode Listening to Music/Audio using Bluetooth Delete all paired Bluetooth device records Auxiliary Input mode Other information Technical specification Product support...
Page 5
This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
Safety information Important - Please read these instructions fully before installing or operating Power source • Only use the power supply that came with the product. Using an unauthorised power supply will invalidate your guarantee and may irrecoverably damage the product. •...
Page 9
Safety information Important - Please read these instructions fully before installing or operating Ventilation • Do not block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds as these are provided for functionality and/or ventilation to ensure safe operation of the product.
Page 10
Safety information Important - Please read these instructions fully before installing or operating General safety information • Keep the product and all its parts out of reach of small children. • This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Page 11
This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
Getting to know your DAB Micro System with Bluetooth...
Page 14
Getting to know your DAB Micro System with Bluetooth You’ll be up and running in no time Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your product and ensure safe and correct installation and operation.
Page 15

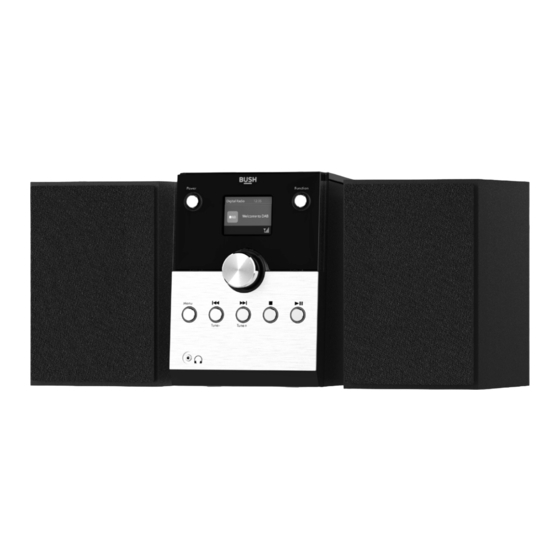

Getting to know your DAB Micro System with Bluetooth You’ll be up and running in no time Fig 1. Fig 2. 1. Power on/off (standby) 9. Skip forward/Tune + 2. CD Compartment 10. Stop 3. Backlit display 11. Play/Pause 4. Rotary volume control 12.
Page 16
Getting to know your DAB Micro System with Bluetooth You’ll be up and running in no time Fig 3. 1. Power on/off (standby) 10. Equaliser 2. Skip back 11. Mode 3. Play/Pause 12. Skip forward 4. Clock 13. Stop 5. Scan 14.
Getting to know your DAB Micro System with Bluetooth You’ll be up and running in no time Power connection 1. Connect the speakers to the Left and Right speaker sockets on the back of the Micro. Please note that the speakers are shaped and so you will need to view them from the front before you connect them to the speaker sockets.
Getting to know your DAB Micro System with Bluetooth You’ll be up and running in no time Adjusting the volume Turn the rotary volume control clockwise to increase the volume and anti-clockwise to decrease the volume. You can also adjust the volume using the Vol+ and Vol- buttons on the remote control.
Getting to know your DAB Micro System with Bluetooth You’ll be up and running in no time 3. Press and release the rotary control on the Micro or the Select button on the remote control to select and enter the System settings menu. 4.
Page 20
Note: Some products will automatically search for a new device and so the ‘Add new device’ option is not available. 4. When found, your Micro will be displayed as ‘BUSH COLOUR’ . Select the device name to begin pairing. 5. When pairing is complete ‘Bluetooth Connected’ will be displayed.
Page 21
This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
Using your DAB Micro System with Bluetooth Let’s get started DAB radio mode Check that your Micro is in DAB radio mode. If you are not already in DAB mode, briefly press and release the Mode button on the front of the Micro or on the remote control, until you are in DAB mode (check the display).
Using your DAB Micro System with Bluetooth Let’s get started If you have moved your Micro to another location, e.g.: if you go on holiday, then it’s also a good idea to carry out a manual scan. In DAB mode: 1.
Using your DAB Micro System with Bluetooth Let’s get started 3. Use the rotary control on the Micro or the buttons on the remote control to move to the preset location that you would like to store the radio station to (1-10).
Using your DAB Micro System with Bluetooth Let’s get started • Program Type (PTY) Such as ‘Rock’ , ‘Pop‘ , Talk’ or ‘News’ • Multiplex Name Displays the broadcasting area and collection of radio stations on this frequency e.g.: BBC National DAB, Digital 1 Network. •...
Using your DAB Micro System with Bluetooth Let’s get started compression to maximum will ‘boost’ the quiet sounds, whilst keeping the loudest sounds at their original level. There are 3 levels of compression: • DRC off: No compression. This is the default setting. •...
Using your DAB Micro System with Bluetooth Let’s get started Wire radio aerial Please make sure that the wire aerial on the back of the Micro is fully extended and adjusted before you attempt to tune to an FM radio station (a vertical position is recommended).
Using your DAB Micro System with Bluetooth Let’s get started • All stations The scan will stop for every station it receives, even if the signal strength is poor. 2. Use the rotary control on the Micro or the buttons on the remote control to move to and choose from the two options available.
Using your DAB Micro System with Bluetooth Let’s get started Storing an FM station preset Your Micro can store up to 10 FM radio stations in its preset memories for instant access to your favourite stations. 1. Tune the Micro to the FM radio station that you wish to preset. 2.
Using your DAB Micro System with Bluetooth Let’s get started FM display information When listening to an FM station you can change the information that will appear on the second line of the display. There are several different types of information that are sent by the broadcaster.
Page 33
Using your DAB Micro System with Bluetooth Let’s get started Play a CD Note: It is not possible to play DVD or computer CDs. 1. Press and release the lid of the CD player on the front right edge, where ‘Push to Open’...
Using your DAB Micro System with Bluetooth Let’s get started • Fast backward within a track: Press and hold the button on the Micro or on the remote control. • Stop Press and release the button on the Micro or on the remote control. Programmed play mode In programmed play mode, you can program the play order of the tracks on your CD.
Using your DAB Micro System with Bluetooth Let’s get started Repeat and Random modes 1. Press and release the Repeat button on the remote control. A repeat icon with a digit 1 in the middle will be displayed. Continuously press and release the Repeat button to cycle through the available options of : •...
Note: Some products will automatically search for a new device and so the ‘Add new device’ option is not available. 4. When found, your Micro will be displayed as ‘BUSH COLOUR’ . Select the device name to begin pairing. 5. When pairing is complete ‘Bluetooth Connected’ will be displayed.
Micro. Note: If your previously paired device is within range but does not automatically connect, go to the Bluetooth connectivity settings on your device and select ‘BUSH COLOUR’ to reconnect. Alternatively, press and release the ‘Pair’ button on the remote control to restart the Bluetooth pairing process (see page 36).
Using your DAB Micro System with Bluetooth Let’s get started Delete all paired Bluetooth device records Press and hold the button on the Micro or on the remote control to delete all the Bluetooth device records from your Micro. Disconnected will be displayed. See page 36 to connect or ‘pair’...
Page 39
This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
Other information Helpful technical information Technical specification Power: Input AC 230-240V/50Hz Battery: 1 x 3V CR2025 for the remote control Output: 2 x 3W RMS Frequency range: 87.5 MHz to 108 MHz DAB: Band III, 174 MHz to 240 MHz Bluetooth: Version 3.0 Profiles A2DPV1.2, AVRCPV1.4...
Page 43
This page is left intentionally blank section of these instructions, or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021.
Product support Help is always at hand Troubleshooting If you are experiencing problems with your Micro, there are some quick and easy checks that you can do, which may help to solve the problem. CD Does not play: Check that you are in CD mode. Press and release the Mode button on the Micro or on the remote control to change the mode (check the display).
Page 47
Product support Help is always at hand Radio reception is poor: Fully extend the wire aerial to get the best reception and sound quality. Retune the radio station/s, see pages 24 & 29. Try moving your Micro to another location to see if reception improves. Check that you do not have other electrical equipment too close to your Micro, causing interference.
Product support Help is always at hand Help and assistance If you require any technical guidance or find that your DAB Micro System with Bluetooth is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 600 3021*.
Page 49
Product support Help is always at hand Disposal • This product should not be treated as normal household waste and it should be recycled. Please take it to your nearest collection facility or for further details contact your local council or visit www.recycle-more.co.uk •...
Call us now and activate your 12 month guarantee Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.
