Setup Guide

1

Assembling the speakers

STEP
2

Positioning the speakers

STEP
3

Speaker connections

STEP
4

Audio and video connections

STEP
5
Radio and AC mains lead connections
STEP
6

Preparing the remote control

STEP
7
Performing QUICK SETUP
STEP
All necessary steps of setup are completed.
Please see the Operations Guide for playback operations.
EB

Operating Instructions

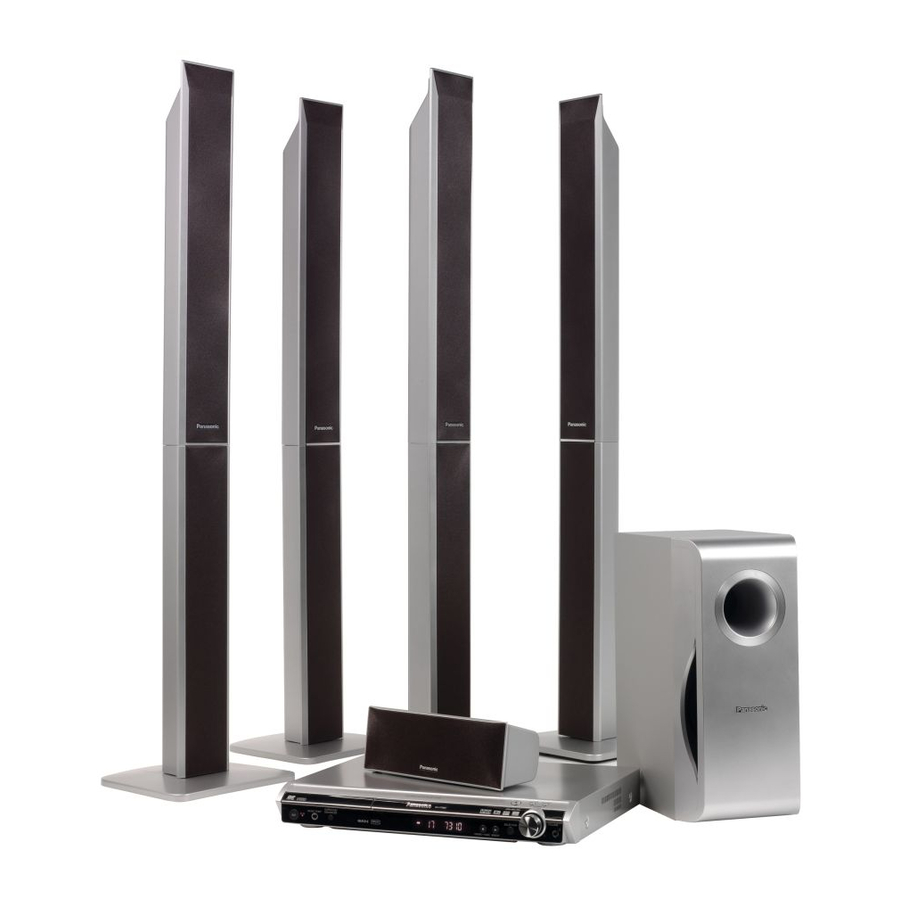

DVD Home Theater Sound System
SC-HT540/SC-HT990
Model No.
RQT8723-B

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SC-HT540

Summary of Contents for Panasonic SC-HT540

  • Page 1: Setup Guide

    Setup Guide Operating Instructions DVD Home Theater Sound System SC-HT540/SC-HT990 Model No. Assembling the speakers STEP Positioning the speakers STEP Speaker connections STEP Audio and video connections STEP Radio and AC mains lead connections STEP Preparing the remote control STEP...
  • Page 2 The supplied stands are specially designed Assembling the speakers STEP for attachment to Panasonic SB-FS990 front speakers, SB-FS741 surround speakers, SB-FS540 front or surround speakers. Use only as indicated in this setup. [HT540] Front speakers [HT990] Front and surround speakers Preparation ≥...
  • Page 3 2 Attach the speaker to the stand. Speaker Assembled! Stand Cover plate Remove before attaching the speaker and keep for wall-mount use (➜ page 38, Operations Guide). Secure the speaker to the stand. Speaker Screw Tighten securely. Ensure the speaker cable is centered in the groove.
  • Page 4 Positioning the speakers STEP How you set up your speakers can affect the bass and the sound field. Note the following points: ≥ Place speakers on flat secure bases. ≥ Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.
  • Page 5 Notes on speaker use If irregular coloring occurs on your television ≥ You can damage your speakers and shorten their useful The front and center speakers are designed to be used life if you play sound at high levels over extended periods. close to a television, but the picture may be affected with ≥...
  • Page 6 Audio and video connections STEP ≥ Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not be displayed properly. ≥ Turn the television off before connecting, and refer to the television’s operating instructions. Connecting to a television with SCART (AV) terminal To improve picture quality, you can change the video signal output from the SCART (AV) terminal.
  • Page 7 Connecting to a television with AUDIO/VIDEO terminals Back of the main unit COMPONENT VIDEO OUT (PROGRESSIVE/ INTERLACE) VIDEO VIDEO S-VIDEO S-VIDEO Television (not included) § Audio cable AUDIO AUDIO (not included) VIDEO OUT VIDEO IN Video cable (not included) § This audio connection will enable you to play audio from your television through your home theater system.
  • Page 8 ≥ Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (➜ page 26, Picture Menu, Operations Guide). ≥Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible. Consult the manufacturer if you have another brand of television.

  • Page 9: Radio And Ac Mains Lead Connections

    Radio and AC mains lead connections STEP AM loop antenna FM indoor antenna AC mains lead ≥ Connect the AC mains lead after all other connections are complete. ≥ Using an outdoor antenna (optional) (➜ page 33, Operations Guide). FM indoor antenna Affix this end of the antenna Click! where reception is best.

  • Page 10: Performing Quick Setup

    Preparing the remote control STEP Do not: Remote control Batteries ≥ mix old and new batteries. ≥ use different types at the same time. ≥ heat or expose to flame. ≥ take apart or short circuit. Insert so the poles (i and j) match those in the ≥...
  • Page 11 MEMO...
