Sangamo CHOICE PR2 Installation Instructions

Fit & forget...

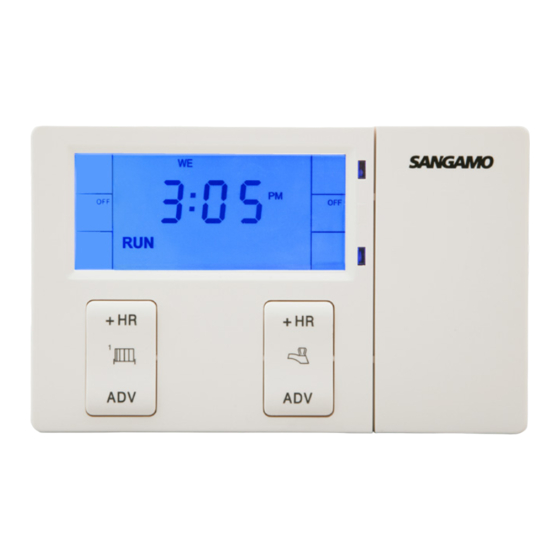

CHOICE PR2
2 Channel Programmer
Installation Instructions
Pre-Installation Set Up
Before installing, set the bank of
4 DIP Switches on the back to
configure the unit according to the
chart below:
DIP Switches Shown in Factory Default
Positions. (black = raised actuator of
switch)
PUMPED allows independent control of CH
and HW.
GRAVITY does not allow CH without HW
but can provide HW without CH.
24 Hr Runs same programme every day.
5/2 Day Allows different on/off times at
weekend.
7 Day Allows different on/off times every
day.
Installation Safety Notes
This unit must be installed by
a suitably qualified
accordance with the latest IEE
Wiring Regulations.
Isolate mains supply
commencing installation. Please
read all installation instructions
before proceeding.
Ensure that the
connections to the mains supply
is via a fuse rated at not more
than 6 amps and a class 'A' switch
having a contact separation of
a minimum of 3mm in all poles.
The recommended cable sizes are
1.0mm or 1.5mm
2 2
Technical Data
Power Supply:
Operating Temperature:
Total Switch Rating:
Contact Type:
Battery Type:
Enclosure Protection:
Plastics:
Insulation Class:
Wiring:
Backplate:
Dimensions:
Clock:
BST/GMT time change:
Clock Accuracy:
Program Cycle:
Program On/offs per day: 2on/off, 3on/off selectable
Program Resolution:
Program Selection:
Program Override:
Heating System:
Complies with : EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC,
LVD Directive 2006/95/EC
If the unit is fitted to a metal
surface, IT IS ESSENTIAL that
the metal be earthed.
DO NOT use a surface mounting
box.
No earth connection is required
as the product is double insulated
but ensure continuity of earth
throughout the system.
Fitting Back Plate –
Direct Wall Mounting
1. Position
(terminals
with 60mm (min) clearance to
its right, 25mm (min) above,
90mm (min) below. Ensure
that the supporting surface
will fully cover the back of the
programmer.
2. The ideal location would be
1.4M above floor level, easily
accessible, reasonably lit and
free
temperature extremes.
3. Offer the back plate to the
wall in the position where the
person in
programmer is to be mounted
remembering that the back
plate fits to the left hand side
of the programmer. Mark the
before
fixing positions through the
slots in the backplate, drill and
plug wall, then secure back
plate in position using screws.
fixed wiring
4. All
connections should now be
made. Ensure that the wiring
to
leads directly away from the
terminals and is completely
enclosed within the wall-plate
230V AC, 50Hz
0°C to 35°C
230V AC, 6(2)A
1B , Micro-Disconnection (Voltage Free)
Lithium Cell CR2032
IP30
Thermoplastic, flame retardant
Double
For fixed wiring only
Industry standard
140mm x 87mm x 37mm
12 hour am/pm, 1 minute resolution
Automatic
+/- 1 sec/day
24hr, 5/2day or 7day selectable.
10mins
Auto, On all day, On constant, Off
+1,2 or 3Hr, Advance
Pumped, Gravity selectable
the wall-plate
along top
from condensation
necessary electrical
the wall-plate terminals
aperture. Wire ends must be
stripped and screwed to the
terminals so that minimal bare
wire is showing.
Fitting Back Plate –
Wiring Box Mounting
1. Fix the wall-plate to a flush
mounting single conduit box
type UA1
M3.5 x 14 screws. Take care to
ensure the opening is adequate
and will allow mounting of the
unit onto the base plate. The
edge)
use of glue, mastic, or other
sealants MUST NOT be used to
secure the unit to the wall.
2. All necessary
connections should now be
made. Ensure that the wiring
to the
leads directly away from the
terminals and is completely
enclosed within the wall-plate
or aperture. Wire ends must be
stripped and screwed to the
terminals so that minimal bare
wire is showing.
New Installations
Example circuit diagrams for typical
installations
These diagrams are schematic and
should be used as a guide only.
Please ensure that all installations
comply with
regulations.
For reasons of space and clarity not
every system has been included
and the diagrams
simplified, for instance some Earth
connections have been omitted.
Other control components shown
in the diagrams
(BS4662) using
electrical
wall-plate terminals
are shown below.
the current IEE
have been
i.e. Valves,
