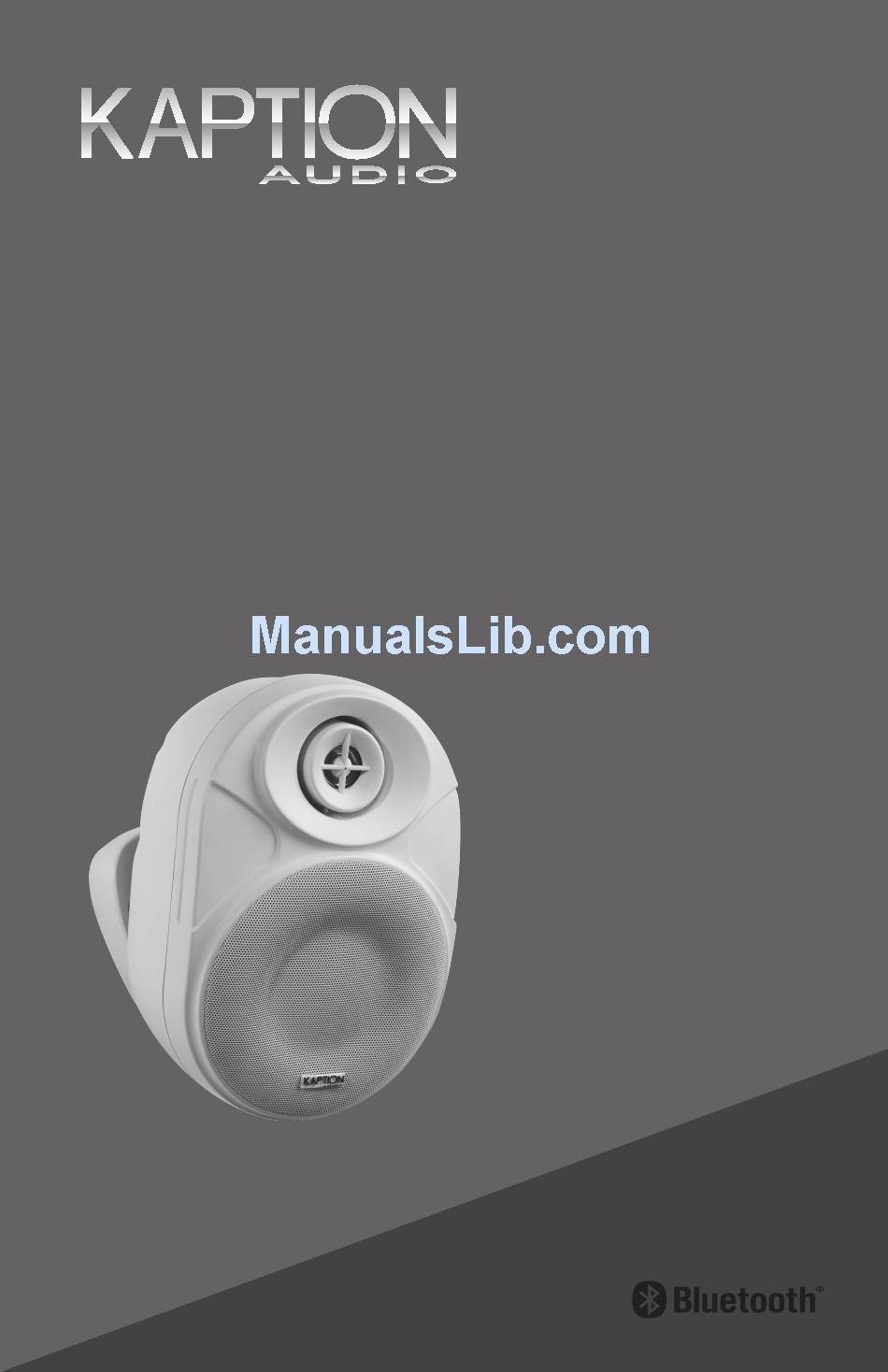

- Page 1 Indoor/Outdoor 6.5” Speakers Owner’s Manual 570-OSB650BK 570-OSB650WH 570-OS650BK 570-OS650WH...
-
Page 2: Design Features
We always recommend you have these speakers installed by an authorized Kaption Audio dealer and have any electrical work by a licensed electrician. KAPTION AUDIO LOUDSPEAKERS COME WITH A ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. -
Page 3: Safety Instructions
Kaption audio dealer or call 1 866 527 8466 (Kaption). - Page 4 OSB650 Outdoor Series Speakers Please adhere to the following guidelines 1. Theses speakers are suitable for indoor and outdoor use. We recommend to be taken indoors during the winter months to protect speakers from freezing and cold temperatures. 2. No guarantee or claims for the speakers and no liability for any damage occurred which resulted in personnel damage or material will be accepted if the units are used for anything other than originally intended.
-
Page 5: Installation Instructions
OSB650 Outdoor Series Speakers Installation Installation Instructions For installing on a wall or ceiling please use appropriate screws and wall anchors where needed, consult an authorized Kaption Audio dealer if Installation Instructions needed. Installation Instructions 1. Secure the mounting bracket base of the speaker on to the wall with 3 screws. -
Page 6: Left Speaker
OSB650 Outdoor Series Speakers LEFT SPEAKER RIGHT SPEAKER RCA WIRED SOURCE INPUT (OPTIONAL ON BLUETOOTH MODEL) BLACK SPEAKER POWER TO SPEAKER 120VAC CONNECTION (MAINTAIN POLARITY: RED TO RED, BLACK TO BLACK) Connections Before connected any parts of the speakers, ensure the speakers are not energized and that any input source is switched off. -
Page 7: Operation
OSB650 Outdoor Series Speakers Operation 1. Set the VOLUME control dial to MIN (turn to the left). 2. Turn on speakers with the POWER switch. The LED marked POWER will light up. The LED marked BLUETOOTH will light up for a few seconds then turn off. -
Page 8: Specifications
OSB650 Outdoor Series Speakers Specifications Speaker size 6.5” Frequency Range 55-20,000Hz Amplifier Power 2x 17.5 W (RMS) 2x 35 W (MAX) SPL (Max, Each speaker) 100 dB Input Sensitivity 750 mV Tone Controls Base & Treble ± 10 dB Connections - Signal Input RCA Jack (Left &... - Page 9 OSB650 Outdoor Series Speakers Caution: This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 10: Limited Warranty Information
In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced with a product deemed to be equivalent at Kaption Audio’s discretion. What is not covered 1. -
Page 11: Warranty Registration Card
KAPTION AUDIO PRODUCTS COME WITH A ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. This warranty covers the original purchaser of a Kaption Audio product, purchased from an authorized Kaption Audio dealer. In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. - Page 12 Kaption Audio 95 Cousins Drive Aurora, Ontario Canada, L4G 1B5 www.KAPTIONAUDIO.com 866-Kaption (527-8466) Design in Canada; Made in China R0 (03/15)
