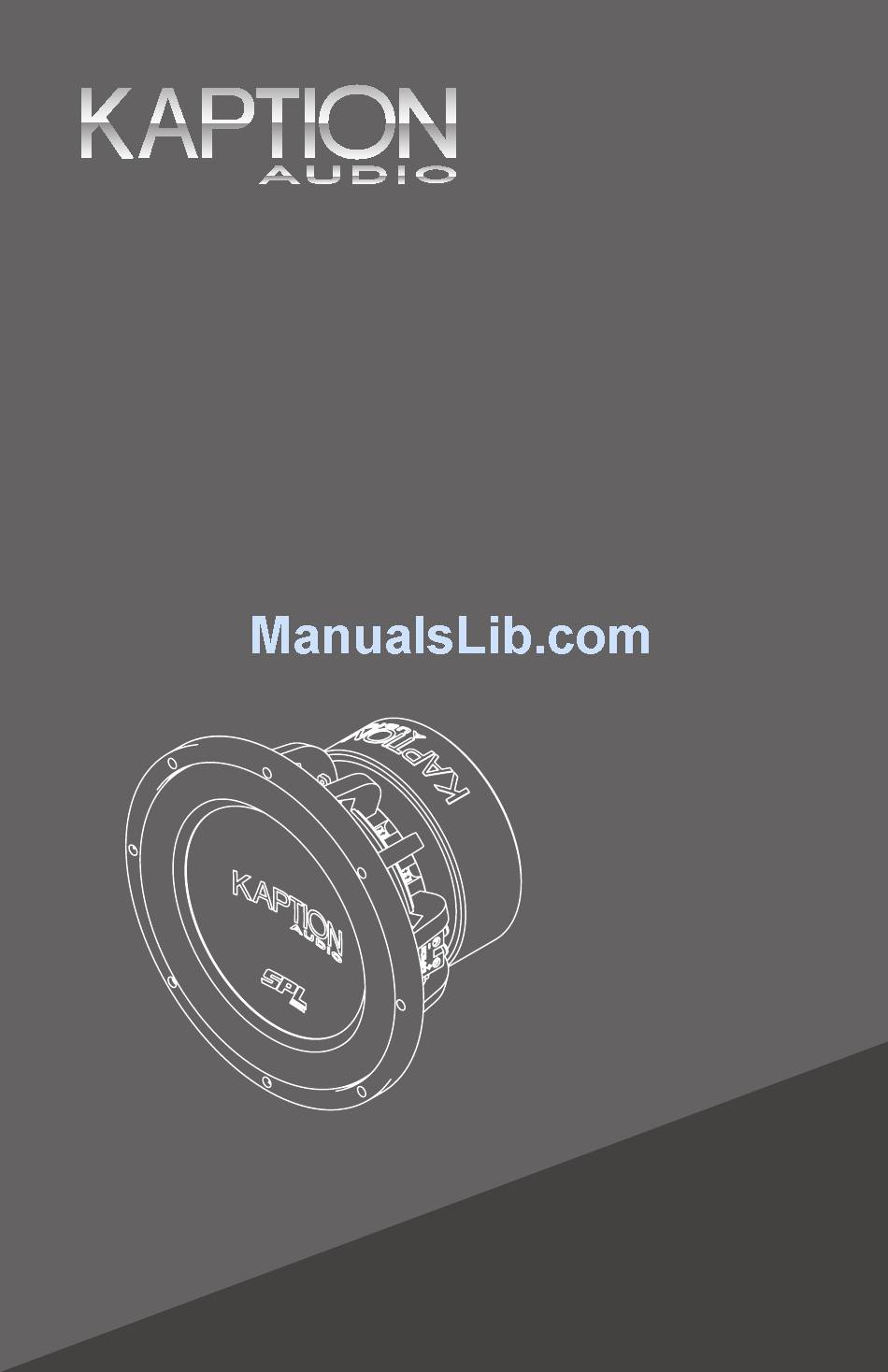

- Page 1 SPLMAX Owner’s Manual 570-SPLMAX12D2V3 570-SPLMAX12D4V3...
-
Page 2: Design Features
SPLMAX Sub-woofer series Introduction: Congratulations on your new purchase of Kaption Audio loudspeakers. These loudspeakers are engineered to reproduce music that is so detailed, you will hear music in a whole new dimension. State of the art technology, rigorous testing, superior materials, innovative design and painstaking quality control;... -
Page 3: Limited Warranty Information
In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced with a product deemed to be equivalent at Kaption Audio’s discretion. What is not covered 1. -
Page 4: Specifications
SPLMAX Sub-woofer series Specifications Model SPLMAX12D2 SPLMAX12D4 Speaker size 12” 12” Sensitivity (1w/1m) Power Handling (RMS/Peak) 1000 / 2000 1000 / 2000 Impedance Dual 2 ohm Dual 4 ohm Voice Coil Diameter (inches) Mounting Depth (inches) 6.79” 6.79” Magnet Weight 180 oz 180 oz Thiele-Small Parameters... -
Page 5: Recommended Enclosures
SPLMAX Sub-woofer series Diagram 12.40 7.71 10.94 1.04 6.79 Recommended Enclosures When building a sealed or ported enclosure, the most important thing to remember is that the enclosure should be airtight. You can seal all the seams with glue or any type of sealant. This should prevent any air leaks. The seams should also be nailed with finishing nails to add extra durability. -
Page 6: Wiring Configurations
SPLMAX Sub-woofer series Calculating Enclosure Volume Height x Width x Depth (Internal Dimensions Inches) Volume in cubic feet 1728 Box Recommendations Ported Enclosure SPLMAX Musical Port (inches) 4 x 12 Wiring configurations You can create an impedance load to best suit your application. You can choose to run your system in series, parallel or series-parallel to achieve the load that is suitable for your amplifier. - Page 7 SPLMAX Sub-woofer series 2Ω Dual Voice Coil Speakers 2 (ohm) DVC Speaker = 4 Load 2 (ohm) DVC Speaker = 2 Load 2 (ohm) DVC Speaker = 1.33 Load 1.33 4Ω Dual Voice Coil Speakers 4 (ohm) DVC Speaker = 2 Load 4 (ohm) DVC Speaker = 4 Load 4 (ohm) DVC Speaker = 2.67 Load 2.67...
- Page 8 Kaption Audio 95 Cousins Drive Aurora, Ontario Canada, L4G 1B5 www.KAPTIONAUDIO.com 866-Kaption (527-8466) Design in Canada; Made in China R1 (08/15)
