SQL 6in x 9in Co-axial Owner's Manual
570-SQL692X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 570-sql692x and is the answer not in the manual?

Questions and answers

Related Manuals for Kaption Audio 570-sql692x

Summary of Contents for Kaption Audio 570-sql692x

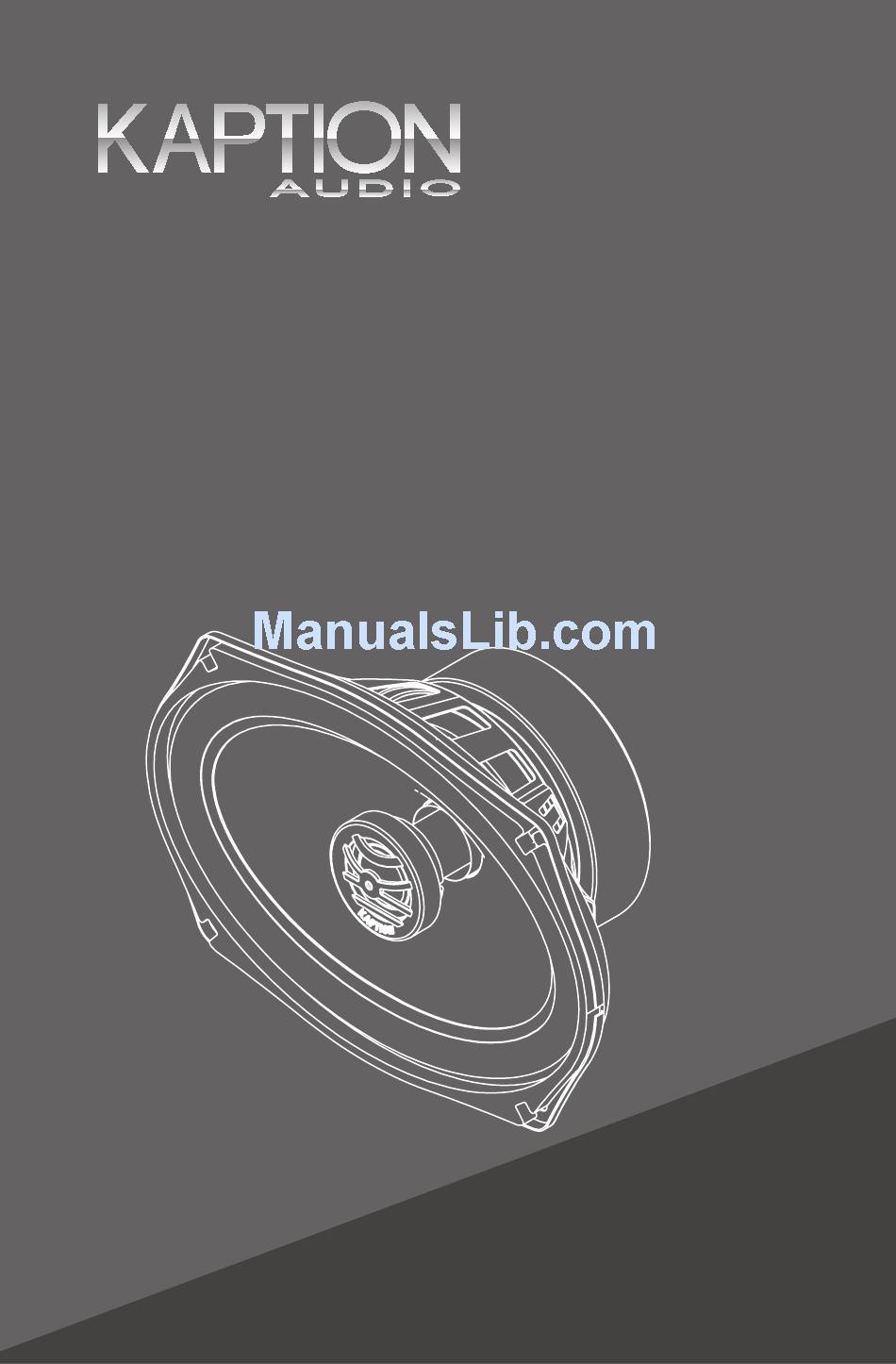

  • Page 1 SQL 6in x 9in Co-axial Owner’s Manual 570-SQL692X...

  • Page 2: Design Features

    SQL Series Introduction: Congratulations on your new purchase of Kaption Audio loudspeakers. These loudspeakers are engineered to reproduce music that is so detailed, you will hear music in a whole new dimension. State of the art technology, rigorous testing, superior materials, innovative design and painstaking quality control;...

  • Page 3: Limited Warranty Information

    Limited Warranty Information: Kaption Audio loudspeakers have a one-year limited warranty. This warranty covers the original purchaser of a Kaption Audio speaker, purchased from an authorized Kaption Audio dealer. In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase.

  • Page 4: Specifications

    Impedance 4 ohm Mounting Diameter 8.73 x 5.85” Mounting Depth 3.41” Driver Diameter 4.41” Tweeter Diameter 1.0” Tweeter protrusion Thiele-Small Parameters Model 570-SQL692X Fs (Hz) 0.47 2.43 0.59 Res (ohms) 3.23 Vas (liters) 27.0 Mms (g) 16.9 Cms (uM/N) 456.5...
  • Page 5 SQL Series Diagram 4.41 3.41 8.73 CUTOUT Co-axial speaker 5.91 6.43 4.76 CUTOUT 6.65 9.28 1.14 1.65 External MOUNTING 1.06 HOLES Crossover 3.35 1.37 4.09 - 4 -...
  • Page 6 SQL Series Standard wiring configuration for each speaker CROSSOVER AMP/SOURCE UNIT Bi-ampable wiring configuration for each speaker CROSSOVER AMP/SOURCE UNIT - 5 -...

  • Page 7: Warranty Registration Card

    KAPTION AUDIO PRODUCTS COME WITH A ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. This warranty covers the original purchaser of a Kaption Audio product, purchased from an authorized Kaption Audio dealer. In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase.
  • Page 8 Kaption Audio 95 Cousins Drive Aurora, Ontario Canada, L4G 1B5 www.KAPTIONAUDIO.com 866-Kaption (527-8466) Design in Canada; Made in China R0 (07/16)
