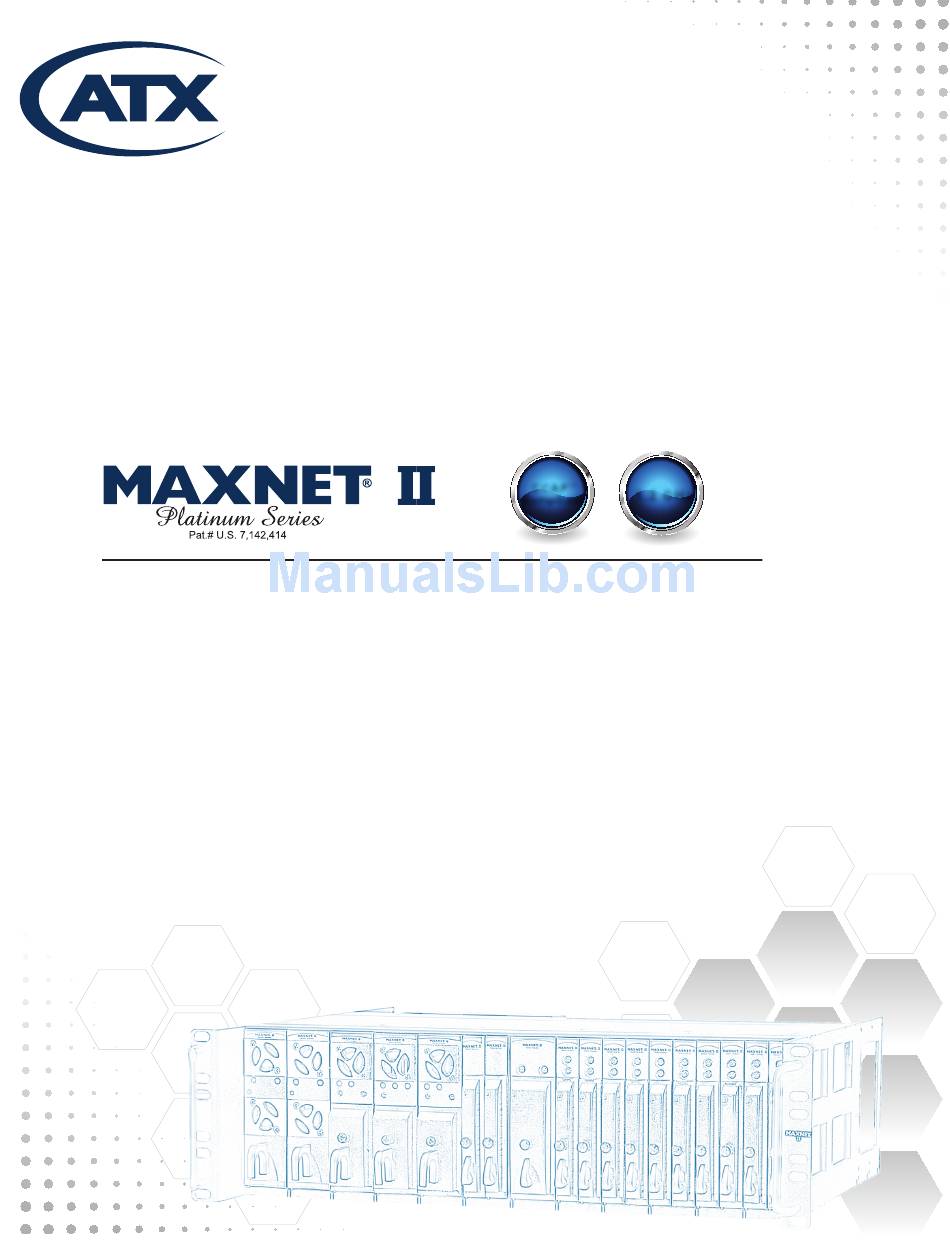

- Page 1 CCAP ™ 1.2 GHz Compliant MPRFA/B RF Detector A/B Switch Installation & Operation Manual...
- Page 2 Specifications subject to change without notice. MAXNET II is a registered trademark of ATX in the United States and/or other countries. Products or features contained herein may be covered by one or more U.S. or foreign ® patents. Other non-ATX product and company names in this manual are the property of their respective companies.
-
Page 3: Table Of Contents
MAINTENANCE & TROUBLESHOOTING ....................5-1 5.1. Maintenance ............................5-1 5.2. Troubleshooting ..........................5-1 SERVICE & SUPPORT ..........................6-1 6.1. Contact ATX Networks ........................6-1 6.2. Warranty Information ......................... 6-1 6.3. Safety ..............................6-1 MAXNET II – MPRFA/B RF Detector A/B Switch Manual – Installation & Operation Manual... - Page 4 Index of Figures and Tables Figures #1 RF Detector A/B Switch Functional Diagram ..........1-2 #2 Front & Rear Panel Pictures ................2-1 #3 Front Panel Pushbutton ................2-2 #4 Redundant Amplifier Application ..............2-3 #5 Redundant Source Application ..............2-3 Tables #1 Ordering Information ..................1-1 #2 Technical Specifications ................1-2 #3 LED Status Indications ................2-2 #4 Common Module SNMP Parameters ............4-1...
-
Page 5: Product Description
CHAPTER 1: PRODUCT DESCRIPTION PRODUCT DESCRIPTION Product Description The MPRFA/B MAXNET II module is an RF Detector A/B Switch, which provides redundancy for use of multiple RF Amplifiers or RF Sources. It has an integrated 2-way splitter for easy realisation of redundancy scenarios (see Application Examples – 3.5.). -
Page 6: Functional Diagrams
CHAPTER 1: PRODUCT DESCRIPTION 1.1. Functional Diagrams RF Detector & A/B Switch with 2-Way Splitter ACTIVE FUSE +24 VDC & POWER CTRL CHASSIS COMM. MONITOR & CONTROL DETECTOR CHANGE DEFAULT DETECTOR -20dB OUTPUT A IN TEST CTRL POINT OUTPUT B IN COMMON MPRFA/B INTEGRATED SPLITTER/ COMBINER... -
Page 7: Installation
CHAPTER 2: INSTALLATION INSTALLATION Installation 2.1. Product Inspection Carefully unpack the switch module from the shipping box. If the box or switch module is damaged, please notify the freight company to make a damage claim. If you suspect that there is a problem with the switch module that may affect it’s safe operation, do not install such a suspect Switch into the Active MAXNET II Chassis. -
Page 8: Rf Detector Switch Set-Up
RF Detector Switch Set-up 2.4.1. RF Detector Switch LED Indicators The MAXNET II MPRFA/B RF Detector Switch has three LED indicators: PWR, A and B. The PWR (Power) LED verifies that the RF Detector Switch module is receiving power from the MAXNET II Power Supply through the 24 VDC Chassis Bus. -
Page 9: Application Examples
CHAPTER 2: INSTALLATION 2.5. Application Examples Redundant Amplifier Application ACTIVE FUSE +24 VDC & POWER CTRL CHASSIS COMM. MONITOR & CONTROL CHANGE DETECTOR DEFAULT -20dB OUTPUT EXTERNAL TEST DETECTOR AMPLIFIERS POINT A IN CTRL OUTPUT B IN COMMON RF INPUT MPRFA/B INTEGRATED SPLITTER/ COMBINER Figure #4: Redundant Amplifier Application... - Page 10 CHAPTER 2: INSTALLATION This page left intentionally blank. MAXNET II – MPRFA/B RF Detector A/B Switch Manual – Installation & Operation Manual ®...
-
Page 11: Status Monitoring
SNMP architecture. All MIBs (Management Information Bases) are freely downloadable from the SCTE (www.scte.org/standards). ATX was able to support all modules using the SCTE standard HMS MIBs, so no custom MIBs are required. -
Page 12: Updating Active Chassis Firmware
If you are updating a version prior to 1.4.2, then the calculated MD5 Checksum will be displayed on the screen. Contact Engineering at ATX to verify what this value should be (it will be the same for each chassis you upgrade with a given revision). -
Page 13: Status Monitoring Features
Status Monitoring Features 4.1. SNMP Parameters Display Name Description HMS MIB Variable ATX model number (note, in empty slots you can enter Model passive, dual-passive, or empty to populate the overview entPhysicalModelName page with passive picture placeholders). Description Description of the module. -
Page 14: Rf Switch Snmp Parameters
CHAPTER 4: STATUS MONITORING FEATURES Display Name Description HMS MIB Variable Automatic : switching based on threshold Switch Mode heRFSwitchMode Manual : switch forced to Default position Switch Control Default position of switch (PathA or PathB only). heRFSwitchControl On: switch will revert back to default position if power Switch Revert Enable returns to it (also, must be in automatic mode and heRFSwitchRevertEnable... -
Page 15: Snmp Mibs Required
CHAPTER 4: STATUS MONITORING FEATURES 4.2. SNMP MIBs Required HMS# SCTE# SCTE-ROOT SCTE-HMS-ROOTS SCTE-HMS-HEADENDIDENT-MIB 38-11 SCTE-HMS-HE-COMMON-MIB 84-1 SCTE-HMS-PROPERTY-MIB 38-1 SCTE-HMS-HE-FAN-MIB 84-3 SCTE-HMS-HE-POWER-SUPPLY-MIB 84-2 Table #6: General SCTE HMS MIBs Required HMS# SCTE# SCTE-HMS-HE-RF-MIB 83-4 SCTE-HMS-HE-RF-SWITCH-MIB 94-2 Table #7: MPRFA/B SCTE HMS MIB’s Required MAXNET II –... - Page 16 CHAPTER 4: STATUS MONITORING FEATURES This page left intentionally blank. MAXNET II – MPRFA/B RF Detector A/B Switch Manual – Installation & Operation Manual ®...
-
Page 17: Maintenance & Troubleshooting
If the red LEDs return to normal operation, then the problem is in actual slot of the chassis and likely the connector on the back rail is damaged. Contact ATX and report a defective chassis. If this does not fix the problem then contact ATX and report a defective module. 5.2.2. Chassis’ Yellow COM LED Not Blinking It is normal for the round LED near the RJ45 port at the rear of the chassis to be solid ON or OFF during various states of system boot-up. - Page 18 If the suspect module is okay and the previously good module fails, contact ATX and report a defective chassis. If the suspect module fails and the previously good module is okay, contact ATX and report that the suspect module is defective.
- Page 19 5.2.8. Temperature/Fan Fault Alarm on any MAXNET ® II Active Module Check to see if the module fan is operating. If not replace with a new fan from ATX (Fan Part #: MPFANA) using the below procedure. Remove two screws holding plate and fan Remove fan cover and screws.
- Page 20 CHAPTER 5: MAINTENANCE & TROUBLESHOOTING This page left intentionally blank. MAXNET II – MPRFA/B RF Detector A/B Switch Manual – Installation & Operation Manual ®...
-
Page 21: Service & Support
Please contact ATX Technical Support for assistance with any ATX products. Please contact ATX Customer Service to obtain a valid RMA number for any ATX products that require service and are in or out-of-warranty before returning a failed module to the factory. - Page 22 1-501 Clements Road West, Ajax, ON L1S 7H4 Canada Tel +1 (905) 428-6068 Toll Free +1 (800) 565-7488 Fax +1 (905) 427-1964 Toll Free Fax +1 (866) 427-1964 www.atxnetworks.com support@atxnetworks.com Printed in Canada Rev. 09/15 (ANW0762)
