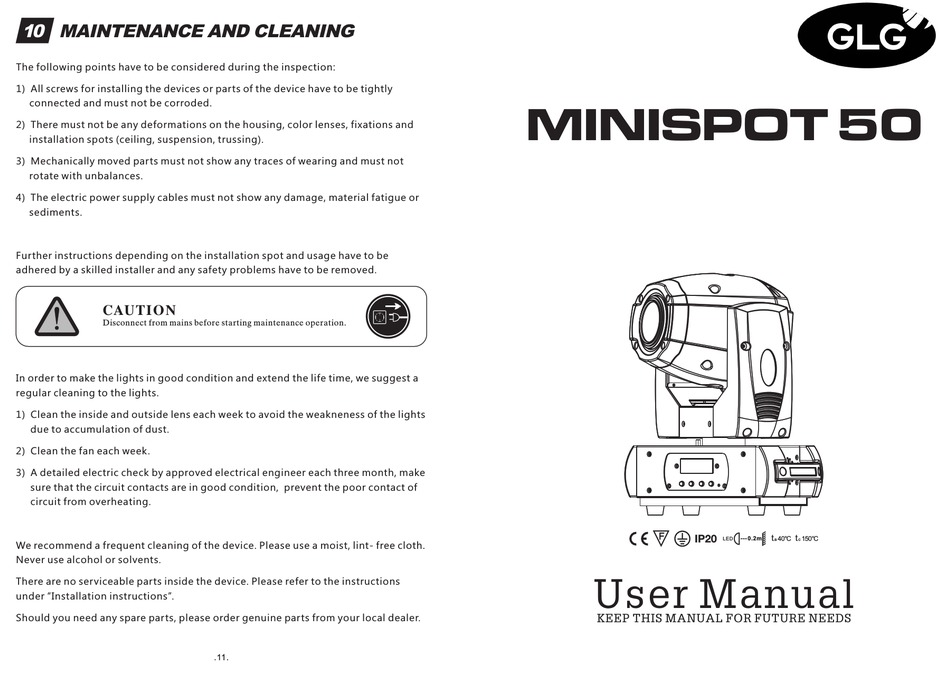

10
MAINTENANCE AND CLEANING
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4) The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be
adhered by a skilled installer and any safety problems have to be removed.
CAUTION
Disconnect from mains before starting maintenance operation.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of
circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under "Installation instructions".
Should you need any spare parts, please order genuine parts from your local dealer.
.11.
MINISPOT 50
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
t
t
LED
0.2m
40°C
150°C
a
c
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GLG MINISPOT 50
Summary of Contents for GLG MINISPOT 50
-
Page 1: Maintenance And Cleaning
1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. MINISPOT 50 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing). -
Page 2: Safety Instructions
Mode/Channel Function Values 32-63 Shutter open Description SAFETY INSTRUCTIONS 64-95 Strobe effect slow to fast 96-127 shutter open Shutter 128-159 Pulse-effect in sequences slow to fast CAUTION 160-191 shutter open Becareful with your operations.With a dangerous voltage you cansuffer a 192-223 Random strobe effect slow to fast dangerous electric shock when touching wires! -
Page 3: Dmx Channels
Meanwhile, please keep this manual well for future needs. Tilt 0-255 Tilt Movement The MINISPOT 50 is made of a new type of high temperature strength of engineering Tilt-fine 0-255 Fine control of Tilt movement plastics and cast aluminum casing with nice outlook. The fixture is designed and... -
Page 4: Features And Specifications
For installations where the DMX cable has to run a long distance 120 Ω FEATURES & SPECIFICATIONS or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by Features electrical noise. -
Page 5: Dmx-512 Control Connections
Specifications Regardless of the rigging option you choose for your MINISPOT 50, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for Input Voltage: AC90-260V 50/60Hz a safety cable on the hanging bracket as illustrated above. Be sure to only use the... -
Page 6: Installations
(see illustration below). Be sure this fixture · The MINISPOT 50 is for spot effect for on-site decoration purpose. is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
