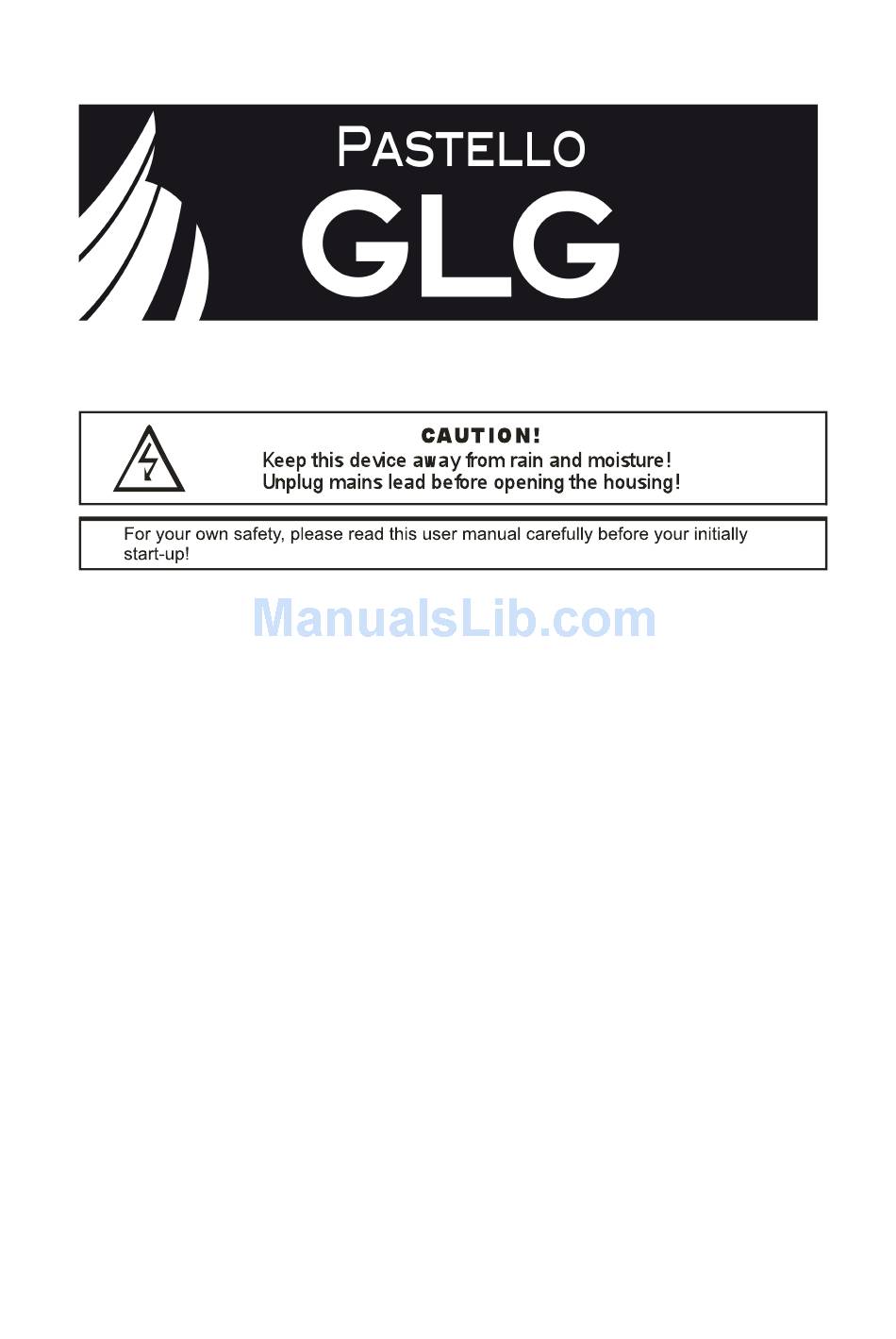

Pastello series RGBW 4 in one
USER MANUAL
Every person involved with the installation, operation and maintenance of this device has to
- be qualified
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- include every supplementary update with the original manual
Before your initial start-up, please make sure that there is no damage caused during shipment.
Should there be any, do not use the device and consult your supplier.

SAFETY INSTRUCTIONS

This device has left our premises in absolutely perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
Important: Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
Always plug in the power unit least.
GLG Lighting products
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pastello Series and is the answer not in the manual?

Questions and answers

Related Manuals for GLG Pastello Series

Summary of Contents for GLG Pastello Series

  • Page 1: Safety Instructions

    Pastello series RGBW 4 in one USER MANUAL Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product...

  • Page 2: Operating Determinations

    If this device will be operated in any way different to the one described in this manual, it may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, etc. GLG Lighting products...

  • Page 3: Rear Panel

    REAR PANEL CONTROL PANEL 1. LED DISPLAY 2. MENU BUTTON 3. ENTER BUTTON 4. UP BUTTON 5. DOWN BUTTON GLG Lighting products...
  • Page 4 10 meters around the device! 2. Connection to mains Connect the device to mains with the enclosed power plug. The occupation of the connection cables is as below: The earth has to be connected. 3. Master-slave / DMX 512 connection GLG Lighting products...
  • Page 5 Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 resistor between Signal (-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture. GLG Lighting products...
  • Page 6 DMX control mode and -Menu- for Menu extention. Complete Main Menu Press The Menu button, then press Up or Down button, the display will show below: 1) [AXXX]. This is the DMX starting address. See page 10. GLG Lighting products...

  • Page 7: Auto Operation

    Blue color respectively. Press Enter button. Press Up or Down button to select C1, C2, or C3. Press the Enter button, the last 2 digits in the display will show 00-12. This is the level of the manual dimmer. GLG Lighting products...

  • Page 8: Dmx Operation

    First channel: Master dimmer (14 bit dimming) (Default) Second channel: Third channel: Green Fourth channel: Blue Fifth channel: Strobe RGB Sixth channel: Chase Seventh channel: Fade Eight channel: Color scroll Ninth channel: White Tenth channel: Strobe white GLG Lighting products...
  • Page 9 Press the Up/Down button until it shows AXXX in the display. XXX is the address you set last time. Press Enter button. Press Up/Down button to select your desired address, e.g. A001. Press Enter button to save or press Menu button to exit. GLG Lighting products...

  • Page 10: Factory Default Setting

    Furthur instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed. The interior of the device need to be cleaned at least annually by an air-jet or a vacuum cleaner. GLG Lighting products...

  • Page 11: Technical Specifications

    There are no serviceable parts inside the device except for the lamp and fuse. Maintenance and service operation can be only carried by authorized dealers. Should you need any spare parts, please use genuine parts. Should you have further questions, please contact GLG. TECHNICAL SPECIFICATIONS Power supply:...
