TECHNICAL SPECIFICATIONS
Item:
LED Moving Head Beam 7X12W Osram
Power supply:
AC 100 - 250V, 50/ 60 Hz ~
Power consumption:
150W
Fuse:
250V 3A
Lamp type:
7 Pieces 12W RGBW-in-1 High Power LEDs
Color:
Red: 7x3W LEDs
Green: 7x3W LEDs
Blue: 7x3W LEDs
White: 7x3W LEDs
Yellow: Mixd by Red + Green
Purple: Mixed by Red + Blue
Cyan: Mixed by Green + Blue
Strobe:
Strobe effect by LED flash
Dimmer:
Dimming effect by LED current change
Pan movement:
540 degrees
Tilt movement:
260 degrees
Control mode:
DMX 512 mode, 14 channels
Auto / Sound-active / Master-slave
Dimmension:
304x267x168mm
Packing size:
360x360x445mm
Net weight:
5.8kgs
Gross weight:
6.8kgs
Please note: Every information is subject to change without prior notice.
DJLITE
LED
MOVING HEAD
PASTELLO MINI BEAM
14 CHANNELS
7X12W RGBW
USER MANUAL
Dj
Dj
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GLG LED Moving Head Beam 7X12W Osram
Summary of Contents for GLG LED Moving Head Beam 7X12W Osram

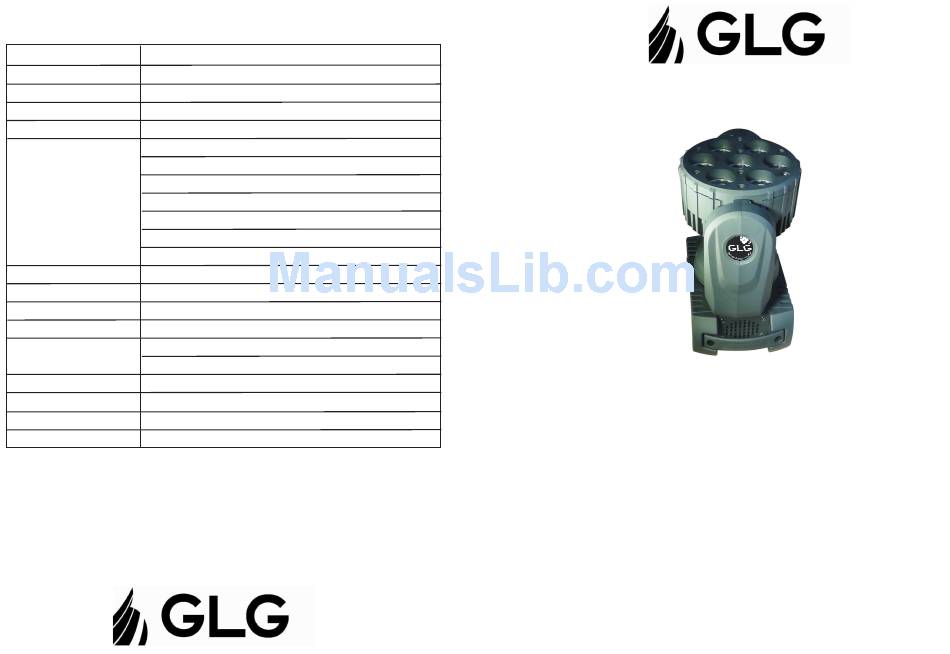

- Page 1 TECHNICAL SPECIFICATIONS Item: LED Moving Head Beam 7X12W Osram Power supply: AC 100 - 250V, 50/ 60 Hz ~ Power consumption: 150W Fuse: 250V 3A Lamp type: 7 Pieces 12W RGBW-in-1 High Power LEDs Color: Red: 7x3W LEDs Green: 7x3W LEDs...
-
Page 2: Cleaning And Maintenance
Page 1 CLEANING AND MAINTENANCE DANGER TO LIFE! Disconnect from mains before starting maintenance operation! The operator has to make sure that safety-relating and machine-technical installa- tion are inspected by - an expert after every four years in the course of an acceptance test. - a skilled person once a year. -
Page 3: Safety Instructions
CAUTION! FUNCTION DESCRIPTION VALUE CHANNEL Keep this device away from rain and moisture! Unplug mains lead before opening the housing! DIMMER 0 - 255 DIMMER, 0% TO 100% For your own safety, please read this user manual carefully before your 0 - 255 RED COLOR DIMMER (0% - 100%) initially start-up! -
Page 4: Operating Determinations
Reset SetUp SetUp CAUTION! EYEDAMAGES! Avoid looking direct to the light source (meant Press the Menu button to back TempSwitchSet TempSwitchSet especially for epileptics)! to the main menu. TemperatureSet TemperatureSet Press the Menu button once During the initial start-up some smoke or smell may arise. This is a normal process again. - Page 5 Temperature Switch Set Always fix the device with at least 2 safety ropes. Fix the safety ropes at the correct holes only. SetUp Press the Menu button to back to the main menu. The maximum ambient temperature t =45 C must never be exceeded. Otherwise the TempSwitchSet Press the Menu button once lamp will be switched off and the device will be out of operation for 5 minutes.
-
Page 6: Connection To Mains
SETUP Very important! The values you selected for the Red, Green, Blue, and White colors will be a mixed 1. The lamp color, and it will be the customized color of the channel 6 for DMX operation! It is strongly recommended that you select the same color for all devices that will work together! This device uses 7 pieces OSRAM brand 20 watt RGBW-in-1 High Power LEDs, including 7 pieces red, green, blue, and white color, each 5 watt. - Page 7 You will see the image on the connection cables is as below: RunMode right. Press the Up or Down button to Cable color Internation code select the Auto mode. Auto Auto1 Press the Enter button, you Brown Live Sound Address RunMode TestMode will see Auto1 - Auto8 on the...
-
Page 8: Control Panel And Display
respond to the controller. 6. Control panel and display This device has 14 channels. The control panel on the base of the device allows you to control the device, including the DMX start address setting, Master and Slave device setting under M/S mode, If you set, for example, the starting address to channel 1, the device will use the reset, etc.
