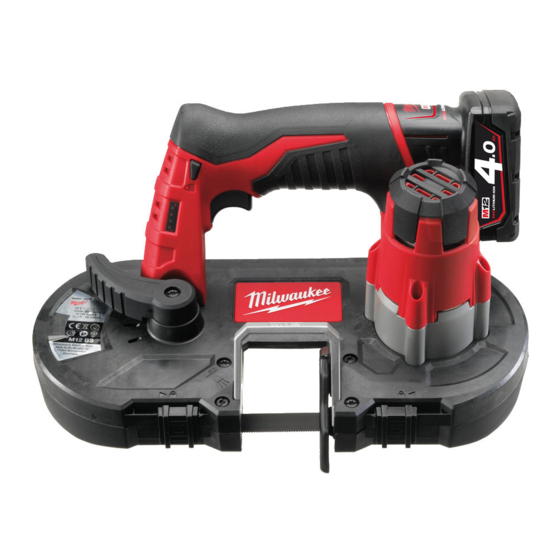

Milwaukee M12 BS Original Instructions Manual
Hide thumbs
Also See for M12 BS:
- Original instructions manual (13 pages) ,
- Original instructions manual (39 pages) ,
- Original instructions manual (41 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Milwaukee M12 BS
Summary of Contents for Milwaukee M12 BS
- Page 1 M12 BS Original instructions...
- Page 3 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
- Page 4 Remove the battery pack before starting any maintenance work on the machine.
- Page 5 START STOP...
- Page 6 Remove the battery pack before starting any maintenance work on the machine. click...
- Page 7 2-3 sec 100%...
- Page 8 For replacement blades (part no.: 48- 39-0572), please see your nearest Milwaukee dealer.
- Page 10 When attaching blade, ensure teeth on blade are facing towards the direction of cut.
- Page 13 START STOP...
- Page 15 10 sec...
- Page 17 This tool is suitable for single handed use, although where possible, hold the tool firmly with both hands. Do not place hand(s) on or around the guard / blade whilst tool has a battery pack connected...
- Page 18 If necessary, adjust blade tracking. The blade should track in the center of the wheels. Screw anti-clockwise to track blade in the direction towards the machine. Screw clockwise to track blade in the direction away from the machine.
- Page 20 TECHNICAL DATA No-load speed ......................0-85 m/min Blade size ....................687,4 x 12,7 x 0,5 mm Cutting capacity rectangular stock..............41,3 x 41,3 mm Cutting capacity Pipe ....................ø 41,3 mm Battery voltage.........................12 V Weight according EPTA-Procedure 01/2003 (1,5 Ah Battery) ........2,9 kg Weight according EPTA-Procedure 01/2003 (3.0 Ah Battery) ....
-
Page 21: Maintenance
Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the Article No. - Page 22 Copyright 20102 Milwaukee Electric Tool Max-Eyth-Straße 10 D-71364 Winnenden (02.12) Germany 4931 4142 20 +49 (0) 7195-12-0 Printed in Germany 961075180-02(A)
