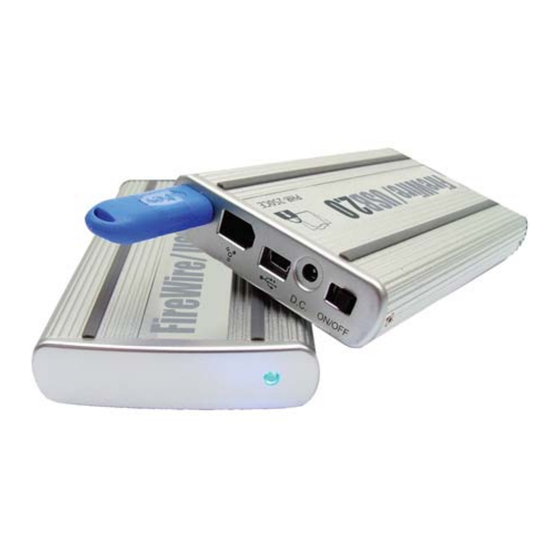

- Page 1 IEEE1394A FireWire/Hi-Speed USB2.0 2.5” Hard Drive Data Encrypt Enclosure PHR-250CE User’s Manual...
- Page 2 Declaration of Conformity Part2 Research declares that the PHR-250CE conforms to the following standards, in accordance with the provisions of the EC Directive 89/366/EEC: EN 55022 (CISPR 22:1985), Class A.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT: PLEASE READ BEFORE USING ENCRYPT KEYS! INTRODUCING FIREWIRE/USB2.0 HI-SPEED DATA ENCRYPT ENCLOSURE About this Guide System Requirements Registration Products and Services Package Contents Safety Precautions HARDWARE INSTALLATION SECURE KEY SOFTWARE INSTALLATION Software Installation for MAC FireWire Connection for MacOS USB Connection for MacOS Software Installation for PC IEEE1394A FireWire Connection for Windows98SE/ME/2000/XP 14... -
Page 4: Important: Please Read Before Using Encrypt Keys
IMPORTANT: Please Read Before Using Encrypt Keys! Please read it thoroughly before using PHR-250CE encrypt enclosures, and save this note for future reference use. 1. For security purposes, the encrypt keys cannot be duplicated. Without the matching encrypt key, your data in the hard disk cannot be accessed. -
Page 5: Introducing Firewire/Usb2.0 Hi-Speed
2.5” IDE Hard drive. It is simple to install and comes with all the parts you need to create an external IEEE1394A FireWire/ Hi-Speed USB2.0 device. About This Guide Before you begin using the PHR-250CE, be sure to read this manual in its entirety. This guide contains: Introducing IEEE1394 FireWire/Hi-Speed USB2.0 •... -
Page 6: Products And Services
Package Contents The PHR-250CE-Portable IEEE1394A FireWire/Hi-Speed USB2.0 2.5" Hard Drive Enclosure package includes the following software and documentation: • The software CD contains the drivers and manual • 6 pin to 6 pin FireWire Cable • USB2.0 data cable •... - Page 7 ON TRANSPORTATION Save the packing materials as you may need to repack and transport the unit at a later date. Always remove the disc before moving the unit. ON POWER SOURCES When you are not using the unit for a long time, disconnect the power cord from the unit.
-
Page 8: Hardware Basic
Hardware Basic Precaution: 1) Please connect the enclosure directly to your computer. 2) Please make sure your hand is dry and remove static from your body by touching metal parts of your computer chassis. Enclosure Sleeve Package Content: Enclosure Sleeve Circuit Board w/ bottom tray Back Panel 2 Secure Keys... -
Page 9: Hardware Installation
Hardware Installation 1. Remove the Back Panel from the Enclosure. 2. Use both thumb to push the Bottom Tray out. 3. Align the pins on the hard drive to the 44-pin connector on the Circuit Board, and push the pins all the way in. - Page 10 4. (a) Seat the Circuit Board and hard drive to the Bottom Tray. (b) Secure the hard drive with Screws (5mm in diameter) on the bottom of the tray. 5. Align the Bottom Tray to the Sleeve Slot. Slide and push the hard drive/ Bottom Tray into the Enclosure Sleeve.
- Page 11 7. Secure the Back Panel with 2 screws (3mm in diameter) from each side. 8. Plug in the secure key, connect the Enclosure directly to the computer by using the USB or FireWire cable and it is now ready to use.
-
Page 12: Secure Key
Independing to OS, it provides real-time, automatic hardware based bit-by-bit data encryption to entire hard drive including boot sector in the enclosure. With Macally Encrypt enclosures, data security could never be simpler and easier. All you have to do is, plug one secure key into the secure key port with lock symbol, then power on and connect the enclosure to computer, use it just like a regular hard drive enclosure. -
Page 13: Software Installation
Software Installation Software Installation for Mac MacOS Software Installation FireWire Connection for MacOS MacOS will recognize the enclosure automatically, initialize (if the drive is not initialized) and mount the drive to desktop. USB2.0 Connection for MacOS MacOS will recognize the enclosure automatically, initialize (if the drive is not initialized) and mount the drive to desktop. -
Page 14: Software Installation For Pc
Software Installation for PC IEEE1394 FireWire Connection for Windows98SE/ME/2000/XP Plug the IEEE 1394 cable into any available port, Windows(98,ME,2000 or XP) will start searching for the proper driver. Please follow the on screen instruction to complete the driver installation. (You may need the Windows CD during the installation.) USB Connection for Windows/ME/2000/XP Plug the USB cable into any available port, Windows(,ME,2000... - Page 15 Select on the “Specify a location” option and type in “x:\PHR-250CE\DRI- VERS” where “x” is the letter of the CD-ROM drive with the Drivers CD inserted. Then click “Next”. Windows will search the location and find the appropriate driver from the Drivers CD.
-
Page 16: Ide Hard Drive Partition And Format Procedures
After the installation, you will get USB2.0 Hi-Speed for file transfer, if PHR- 250CE is connected to USB2.0 host adapter; if connected to USB1.1 port in your computer, you will get USB1.1 speed transfer rate. Note: If you don’t see the new drive letter added in My Computer after driver is loaded properly, the reason could be the hard disk has not partition and format yet, please partition and format the drive in the enclosure before using it. - Page 17 1. Please run FDISK utility. 2. Follow the screens below to complete the Hard Disk Partition. Step 1 Step 2...
- Page 18 Step 3 Step 4 Step 5...
- Page 19 3. After restart the computer, please verify the new drive in "My Computer". 4. Please do a full format to the hard drive before using it. Step 6 Step 7 Step 8...
-
Page 20: For Windows2000/Xp
For Windows2000/XP If you can see a new entry under Disk drives of Device Manager, you are ready to partition and format the drive. 1. Open Control panel, “Administrative Tools” and “Computer management”. 2. Click on “Disk Management”. 3. “Write Signature and Upgrade Disk Wizard” windows will show up and click “Next”. - Page 21 4. Write a signature to the new drive, click “Next”. 5. Click “Finish” to close the wizard. Step 4 Step 5...
- Page 22 Step 7 7. Partition and fully format the drive and follow the onscreen prompts.* *note: If it assigns a new hard drive letter but format dose not run automatically, please exit “Computer Management”, and find the new drive letter in My computer to run full format.
