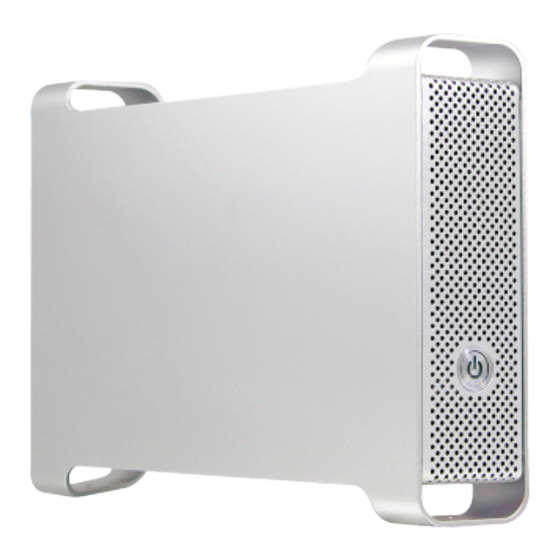

SuperSpeed USB3.0/eSATA Enclosure
for 3.5" Serial ATA Hard Drive
G-S350SU3
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-S350SU3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Macally G-S350SU3

  • Page 1 SuperSpeed USB3.0/eSATA Enclosure for 3.5” Serial ATA Hard Drive G-S350SU3 User’s Manual...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCING USB3.0/ESATA 3.5” Hard Drive ENCLOSURE About this Guide System Requirements Package Contents Safety Precautions HARDWARE BASICS HARDWARE INSTALLATION Software Installation for Mac SATA Connection for MacOS X 10.2 and above USB Connection for Mac Software Installation for PC SATA Connection for Windows XP/7/Vista USB Connection For Windows XP/7/Vista HARD DRIVE PARTITION and...
  • Page 3: Introducing Usb3.0/Esata 3.5" Hard Drive Enclosure

    USB2.0 - 480Mb/s USB1.1 - 12Mb/s G-S350SU3 can support the speed specification listed above, however its transfer rates are likely to be lower, and will vary depending upon the type of SATA and USB host controller, SATA Hard Drive and computer hardware.
  • Page 4: Package Contents

    Package Contents The G-S350SU3 package includes the followings: eSATA/USB3.0 3.5” Hard Drive Enclosure Quick Installation Guide USB3.0 cable AC/DC adapter Safety Precautions ON INSTALLATION 1. To reduce the risk of fire or electric shock, do not expose this product to rain, water or moisture.
  • Page 5 ON TRANSPORTATION Save the packing materials as you may need to repack and transport the unit at a later date. Always remove the disc before moving the unit. ON POWER SOURCES When you are not using the unit for a long time, disconnect the power cord from the unit. To unplug the AC power adapter from the wall outlet, grasp the adapter itself.
  • Page 6: Hardware Basics

    Hardware Basics Precaution: Please make sure your hand is dry and remove static from your body by touching metal parts of your computer chassis. Security Slot eSATA Data Cable Connector USB Data Cable Connector DC Jack Back Panel --- Back Panel --- 2 -6mm Screws --- Enclosure Sleeve --- Base Tray bridge...
  • Page 7: Hardware Installation

    Hardware Installation Back Panel Front Panel Note: The diagrams below are using the G-S350U3 Enclosure as an example. 1. Unscrew to loosen the Enclosure back panel. Remove the back panel. 2. Use your figers to push the Base Tray out.
  • Page 8 3. Pull the enclosure sleeve out from the Base Tray and place it aside. 4. Align the black Power/SATA connector on the hard drive to the black female SATA connector on the Base plate bridge, and push the drive into the connector completely. 5.
  • Page 9 7. Secure the Base Tray and Enclosure Sleeve with two 6mm screws. 8. Plug the AC/DC adapter into the Enclosure, and connect the unit to your computer using a USB cable or eSATA cable. Then press the power button to turn it on.
  • Page 10: Software Installation For Mac

    SATA Connection for MacOS X 10.2 and above G-S350SU3 has built in eSATA port for you to take advantage of high throughput performance. When SATA port is available, please get an eSATA cable to connect G-S350SU3 to your Mac, then follow steps below to use G-S350SU3 enclosure: 1.
  • Page 11: Software Installation For Pc

    SATA cable and bracket to route internal SATA port on motherboard to external port. When external SATA port is available, please get an eSTAT cable to connect G-S350SU3 to your PC, and follow steps below to use G-S350SU3 enclosure: 1.
  • Page 12: Hard Drive Partition And Format Procedures In Pc Windows Xp/7/Vista

    Hard Drive Partition and Format procedures in PC Windows XP/7/Vista: If a new hard disk icon dose not appear in “My Computer”, check device manager under system in the control panel. Then double click on “Disk Drives” to see if a new entry appears. If you can see a new entry as shown (Example, WDC WD80 OBB-32BSA0) above, you are ready to partition and format the drive.
  • Page 13 1. Open Control panel, “Administrative Tools” and “Computer management”. Step 2 2. Click on “Disk Management”. Step 3 3. “Write Signature and Upgrade Disk Wizard” windows will show up and click “Next”.
  • Page 14 Step 4 4. Write a signature to the new drive, click “Next”. Step 5 5. Click “Finish” to close the wizard.
  • Page 15 Step 6 6. Select the new “Unallocated” disk, and then right click to choose “Create partition”. Step 7 7. Follow the onscreen instruction to partition and fully format the drive. Note: If it assigns a new hard drive letter but format dose not run automatically, please exit “Computer Management”, and find the new drive letter in My computer and right click it to select format.
