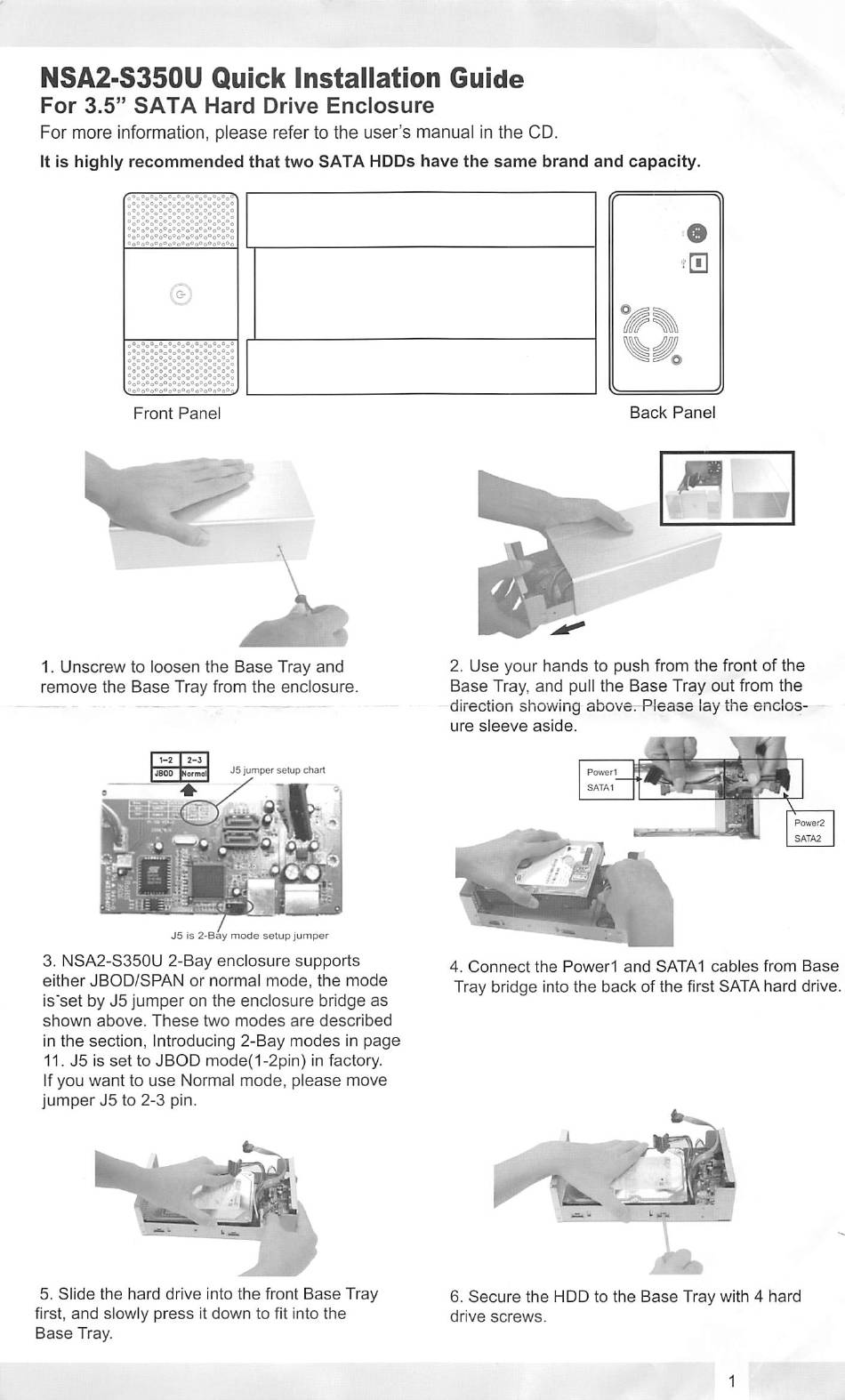

NSA2-S350U Quick installation Guide
For 3.5" SATA Hard Drive Enclosure
For more information, please refer to the user's manual in the CD.
It is highly recommended that two SATA HDDs have the same brand and capacity.
Front Panel Back Panel
m
1. Unscrew to loosen the Base Tray and
remove the Base Tray from the enclosure.
2. Use your hands to push from the front of the
Base Tray, and pull the Base Tray out from the
direction showing above.-Please lay the enclos
ure sleeve aside.
l^nOD [lenno jumper selup chart
J5 is 2-Bay mode setup Jumper
3. NSA2-S350U 2-Bay enclosure supports
either JBOD/SPAN or normal mode, the mode
Is "set by J5 jumper on the enclosure bridge as
shown above. These two modes are described
in the section. Introducing 2-Bay modes in page
11. J5 is set to JBOD mode{1-2pin) in factory.
If you want to use Normal mode, please move
jumper J5 to 2-3 pin.
4. Connect the Powerl and SATA1 cables from Base
Tray bridge into the back of the first SATA hard drive
5. Slide the hard drive Into the front Base Tray
first, and slowly press It down to fit Into the
Base Tray.
6. Secure the HDD to the Base Tray with 4 hard
drive screws.
