INSTRUCTION MANUAL
MODE
MUTE
PTY
15
10
1
11
21
MODE
Car Stereo CD/CDR/CDRW/MP3/WMA Player
MUTE
with PLL MW/FM Stereo Radio
Radio Data System with PTY
PTY
2
7
Bluetooth Function in Mobile Phone
Flip Down and Detachable Front Panel System
IPS 248BT
ST
CD/MP3/WMA PLAYER
AF
TA
RPT
8
3
13
ST
CD/MP3/WMA PLAYER
AF
TA
RPT
USB / MMC / SD Card Input
5
6
14
IPS 248BT
4x60WATTS
1 TOP
23
16
IPS 248BT
4x60WATTS
1 TOP
9
20
22
4
12
17
24
25
26
(1-6)
28
27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for In Phase IPS 248BT
Summary of Contents for In Phase IPS 248BT
-

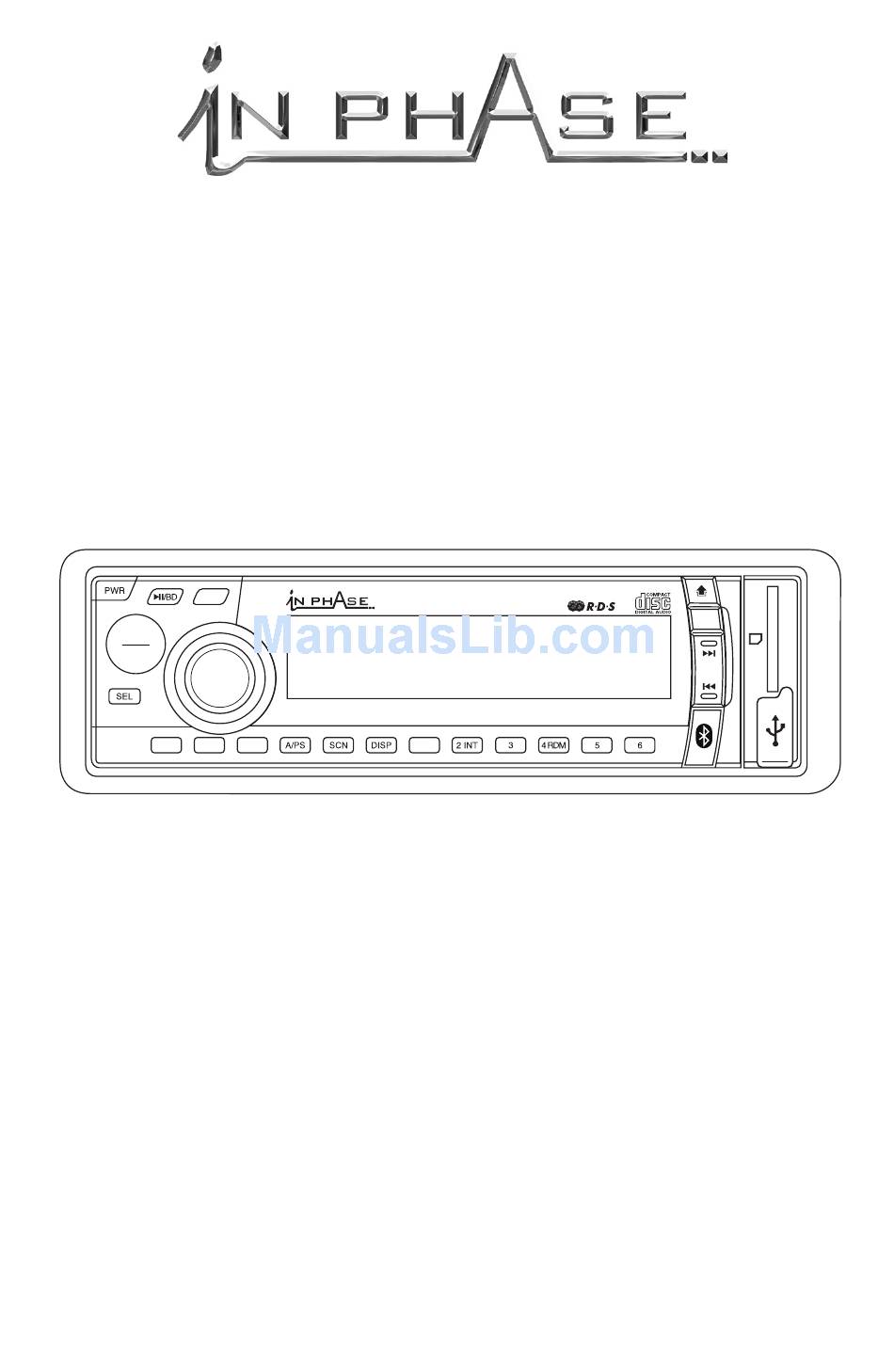

Page 1: Instruction Manual
IPS 248BT INSTRUCTION MANUAL IPS 248BT MODE MUTE CD/MP3/WMA PLAYER 4x60WATTS 1 TOP IPS 248BT MODE Car Stereo CD/CDR/CDRW/MP3/WMA Player MUTE with PLL MW/FM Stereo Radio CD/MP3/WMA PLAYER 4x60WATTS Radio Data System with PTY 1 TOP USB / MMC / SD Card Input... -

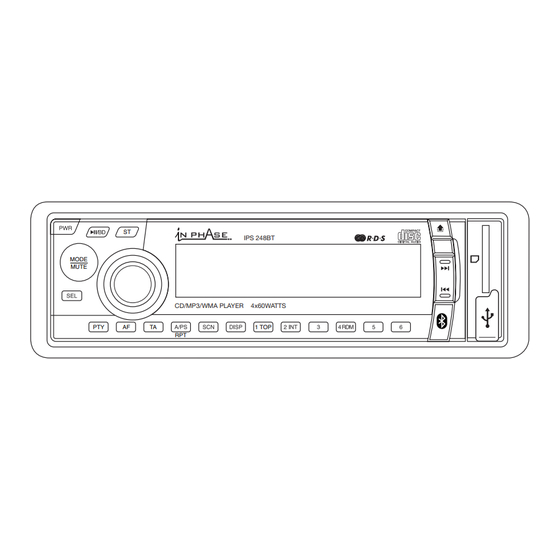

Page 2: Location Of Parts And Controls
CD/MP3/WMA PLAYER 4x60WATTS LOCATION OF PARTS AND CONTROLS 1 TOP IPS 248BT MODE MUTE IPS 248BT CD/MP3/WMA PLAYER 4x60WATTS MODE 1 TOP MUTE CD/MP3/WMA PLAYER 4x60WATTS 1 TOP (1-6) 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/SCROLL/BEEP/STEREO/ LOCAL/PAIRING 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/TA SEEK/MASK... -
Page 3: Iso Connector
ISO CONNECTOR RCA Jack Line Out : Red (right) White (left) RCA Jack Line In : Red (right) White (left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery being drained when the car will be not used for long period. CONNECTOR B 1. REAR RIGHT SPEAKER (+) 2. REAR RIGHT SPEAKER (-) 3. FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+) 6. FRONT LEFT SPEAKER (-) 7. REAR LEFT SPEAKER (+) 8. REAR LEFT SPEAKER (-) Maintenance FUSE REPLACEMENT If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repair center. -
Page 4: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE . DASH BOARD . HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Before detaching the front panel, be sure to press the PWR button (1) OFF first. Then press the button (17), let the Front Panel arrive in horizontal position and detach the panel by pulling it towards you as illustrated. - Page 5 1. POWER ON/OFF (PWR) By pressing this key, the unit is turned on or off. This unit is turned on by pressing any key. 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/RETUNE/ AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/STEREO/LOCAL/PAIRING Turning the VOL knob Right or Left (3), you can adjust VOL/BASS/TREB/BAL/FAD. To select other functions, press the SEL (2) button shortly until the desired functions is shown on the display. Figure 1 shows how control functions are selected using the SEL button. Fig. 1 Selection of sound control functions 1. VOL 2. SEL 3. BAS 4. TRE 5. BAL 6. FAD Turning the VOL knob Right or Left. Increase or decrease the volume by turning . These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER. TA SEEK/TA ALARM (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these func- tion. TA SEEK Mode or TA ALARM mode is selected by 2 sec. TA SEEK TA SEEK / TA ALARM - TA SEEK mode: 2 sec.
- Page 6 TA SEEK MASK DPI RETUNE RETUNE L / RETUNE S 2 sec. POP --- ROCK --- CLASSIC --- FLAT --- DSP OFF TA SEEK MASK DPI MASK DPI / MASK ALL 2 sec. 2 sec. TA SEEK TA SEEK / TA ALARM 2 sec.
- Page 7 2 sec. TA SEEK MASK DPI RETUNE LOUD PAIRING MODE (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these func- MULT BEEP LOCAL LOCAL/DX SCROLL STEREO tion. (Please refer to HOW TO PERFORM PAIRING on page 10) 2 sec. TA SEEK MASK DPI RETUNE LOUD MULT SCROLL BEEP STEREO LOCAL PAIRING 4. PRESET STATIONS (1,2,3,4,5,6) (A) RADIO MODE: When pressed momentarily, these keys select a preset station directly. When pressed longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows: PTY music group ---- PTY speech group ---- OFF MUSIC...
- Page 8 9. DISPLAY (DISP) When this key is pressed, it is operated as the conversion of each display mode as follow. 1) In case of receiving RDS station. RADIO MODE PS ---- CT ---- FREQ ---- PTY CD/MP3/WMA PLAYER MODE CDP ---- CT ---- PS ---- FREQ ---- PTY 2) In case of receiving NON RDS station RADIO MODE FREQ ---- CLOCK ----NO PTY CD/MP3/WMA PLAYER MODE CDP ---- FREQ ---- CLOCK ---- NO PTY Each display time is several seconds, and come back to 1’st position after several seconds. Notes: • CT = clock time • FREQ = frequency • CDP = CD Player 10. MODE BUTTON (MODE) By pressing this key, user can select. AUX/TUNER/CD-MP3/USB or MMC/SD mode. 11. BAND BUTTON (BD) Each band is toggled cyclically by pressing this key FM1---FM2---FM3--MW1--MW2. 12. AUTOMATIC OR MANUAL TUNING (FREQ UP OR FREQ DOWN (A) RADIO MODE When pressed momentarily, these keys are operated as MANUAL tuning mode.
- Page 9 TRACK/SEARCH BUTTON (12) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press the SKIP button ( ) during play to go to the desired track(song)..REVERSE ..FORWARD Press and hold the SKIP button ( ) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. 22. INTRO BUTTON (Preview all Tracks) When this button is pressed, “INT ON” indication is displayed and the first several seconds of each track of the disc is played. Press again to stop intro and listen to track. 23. REPEAT BUTTON When this button is pressed, “RPT ON” indication is displayed and play of the selected track will be continually repeated until the Track repeat mode is cancelled by pressing ‘RPT’ button again. 24. RANDOM BUTTON When this button is pressed, “RDM ON” indication is displayed and each track of the disc is played in random instead of normal progression. To cancel RANDOM mode, press ‘RDM’ button (24) again. 25, 26. 10 TRACK UP/DOWN SELECT: (In case of MP3 files) M5: 10 Track down / M6: 10 Track up HOW TO SELECT MP3/WMA FILES 1. Searching Track:...
- Page 10 * IMPORTANT INFORMATION: BECAUSE OF THE GREAT VARIETY OF PRODUCTS WITH USB,SD AND MMC CARD PORTS AND THEIR SOMETIMES QUITE MANUFACTURER-SPECIFIC FUNCTIONS WE CAN NEITHER GUARANTEE THAT ALL DEVICES WILL BE RECOGNIZED NOR THAT ALL OPERATING OPTIONS THAT ARE POSSIBLE IN THEORY WILL ACTUALLY WORK HOW TO USE BLUETOOTH IN YOUR CAR AUDIO HOW TO PERFORM PAIRING Before you can dial out from the car stereo, you must first perform PAIRING.
- Page 11 Adding Contacts The unit can save contact telephone number for quick access. 1. Press and hold PHONE on the dial keypad then press and hold SEL button for 2 seconds. 2. Press SEL button repeatedly until “ADD NUM” displays. 3. Press and hold SEL button again. 4.
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 20Hz - 20 kHz TUNER (FM) Frequency range 87.5-108 MHz Intermediate frequency 10.7 MHz Sensitivity 2.8 µV Stereo separation 30 dB Signal to noise ratio 50 dB Channel step 50 kHz TUNER (MW) Frequency range 522-1620 KHz Intermediate frequency 450 KHz Usable Sensitivity 32 dBµV LINE-OUT Output 350mV Impedance 10k Ohm GENERAL Power Supply 12V DC (10.8-15.6V allowable) Speaker impedance 4 or 8 ohm...
