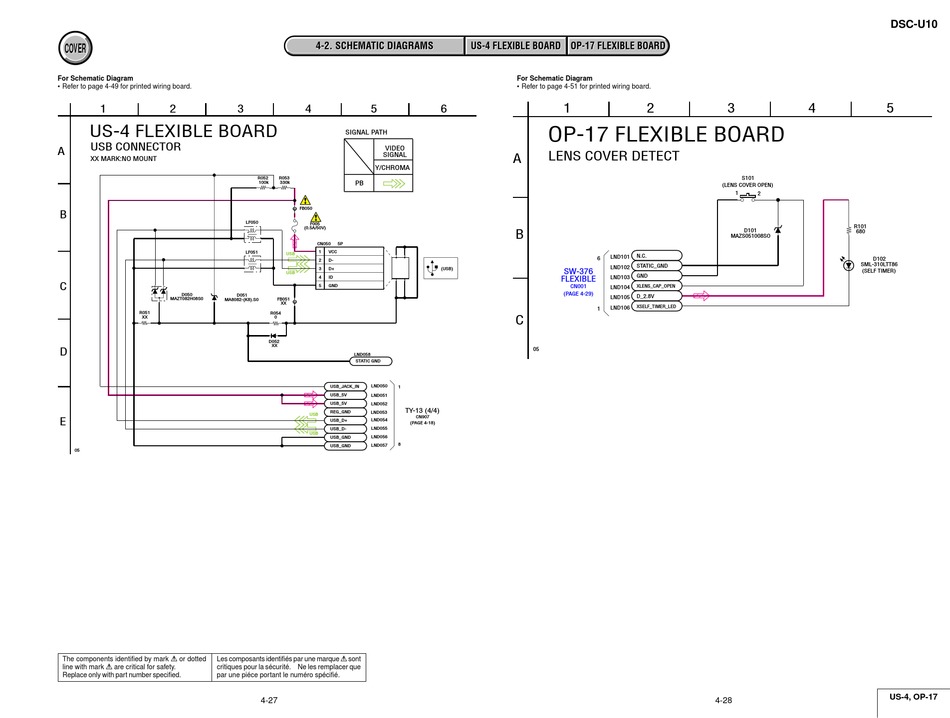

For Schematic Diagram
• Refer to page 4-49 for printed wiring board.
1 2
US-4 FLEXIBLE BOARD
USB CONNECTOR
A
XX MARK:NO MOUNT
B
C
D050 D051
MAZT082H08S0 MA8082-(K8).S0
R051
XX
D
E
05
The components identified by mark 0 or dotted Les composants identifiés par une marque 0 sont
line with mark 0 are critical for safety.
critiques pour la sécurité. Ne les remplacer que
Replace only with part number specified. par une piéce portant le numéro spécifié.
4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS
3 4 5
SIGNAL PATH
VIDEO
SIGNAL
Y/CHROMA
R052 R053
100k 330k PB
FB050
LF050
F005
(0.5A/50V)
CN050 5P
1 VCC
LF051
USB
2 D-
3 D+
USB
4 ID
5 GND
FB051
XX
R054
0
D052
XX
LND058
STATIC GND
USB_JACK_IN LND050
1
USB_5V LND051
USB_5V
LND052
TY-13 (4/4)
REG_GND LND053
USB
CN907
USB_D+ LND054
(PAGE 4-18)
USB_D- LND055
USB
USB_GND LND056
8
USB_GND LND057
4-27
US-4 FLEXIBLE BOARD OP-17 FLEXIBLE BOARD US-4 FLEXIBLE BOARD OP-17 FLEXIBLE BOARD
For Schematic Diagram
• Refer to page 4-51 for printed wiring board.
1
6
OP-17 FLEXIBLE BOARD
LENS COVER DETECT
A
B
LND101
6
LND102
(USB)
SW-376
FLEXIBLE LND103
CN001
LND104
(PAGE 4-29)
LND105
LND106
1
C
05
2 3 4
S101
(LENS COVER OPEN)
1
2
D101
MAZS051008SO
N.C.
STATIC_GND
GND
XLENS_CAP_OPEN
D_2.8V
XSELF_TIMER_LED
4-28
DSC-U10
5
R101
680
D102
SML-310LTT86
(SELF TIMER)
US-4, OP-17
