Eterna SH3WH Installation Instructions page 2

READ THIS FIRST:
Check the pack and make sure you have all of the
parts listed on the front of this booklet. If not,
contact the outlet where you bought this product.
This product must be installed by a competent
person in accordance with the current building and
IEE wiring regulations.
As the buyer, installer and/or user of this product it
is your own responsibility to ensure that this fitting
is fit for the purpose for which you have intended
it. Eterna Lighting cannot accept any liability for
loss, damage or premature failure resulting from
inappropriate use.
This product is designed and constructed according
to the principles of the appropriate British Standard
and is intended for normal domestic service.
Suitable for indoor use only.
Suitable for fixing on a normally flammable surface.
When choosing the location for your new fitting,
ensure that the fixings will be anchored in a solid
surface e.g. concrete, brick or a joist—do not fix
directly onto panelling, cladding, plasterboard etc.
WARNING: This product becomes hot!
This product is not intended to be used by children
and persons with sensory, physical and/or mental
impairments that would prevent them from using it
safely.
Before making fixing hole(s), check that there are no
obstructions hidden beneath the mounting surface
such as pipes or cables.
If the location of your new fitting requires the
provision of a new electrical supply, the supply must
conform with the requirements of the latest edition
of the IEE wiring regulations.
Do not cover.
Switch off the mains before commencing installation
and remove the appropriate circuit fuse.
Make connections to the electrical supply in
accordance with the following code:
Live - Brown or Red
Neutral - Blue or Black
Earth - Green and Yellow
If you are connecting to the mains using a fused spur,
a 13 Amp fuse should be fitted.
This product must be connected to Earth.
Ensure that the heater cannot blow hot air directly
onto any flammable surface or any surface which
may be damaged or discoloured by heat.
INSTALLATION:
01. Remove the three screws from the front panel
and remove it. See front page.
02. Loosen, but do not remove the retaining bolt
using a spanner and remove the bracket. See Fig.
1 opposite.
03. Make fixing holes in wall or ceiling using the wall
bracket as a template and secure bracket using
the fixings supplied. If the fixings supplied are
not suitable for your installation, use appropriate
alternative fixings. Note: the bracket must be
fixed to a solid point e.g. brick, concrete, stud or
joist.
04. Hang the heater on the bracket, ensure that the
bracket is located between the bolt and the
serrated washer and that the bolts are at the end
of the slots in the bracket.
05. Adjust the heater to the required angle and
tighten the bolts using a spanner. Take care not to
over-tighten.
06. Re-fit the front panel.
07. Connect mains cable (fitted) to the power supply
according to the wiring code above.
08. Restore the power and switch on.
OPERATION:
The large switch is a master switch, turning this
switch on and off will start and stop the fan and
heaters if selected.
The degree of heat is controlled by switches I & II.
SAFETY OVERHEATING PROTECTION:
If the unit overheats, thermal switches will cut the
power and will restore the power when the unit has
cooled down. However, if the unit overheats severely,
thermal fuses will isolate and then cut the power:
these fuses will not reset and cannot be replaced by
the user. The unit should be referred to a qualified,
competent person for repair.
MAINTENANCE:
There are no user serviceable parts inside. Refer
servicing or repair to a qualified, competent person.
HEAT SETTINGS:
Master switch only: cold fan.
Master + switch I or II: warm air (1500W).
Master + switches I & II: hot air (3000W).

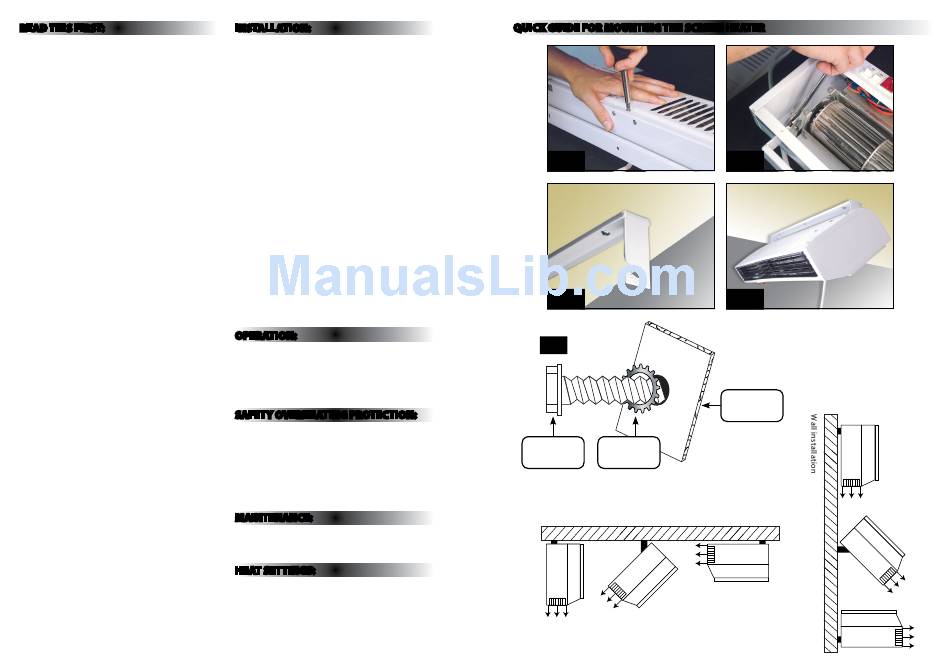

QUICK GUIDE FOR MOUNTING THE SCREEN HEATER
STEP 1
STEP 3
Fig 1
Retaining Serated
bolt washer
Ceiling installation
STEP 2
STEP 4
Mounting
point
