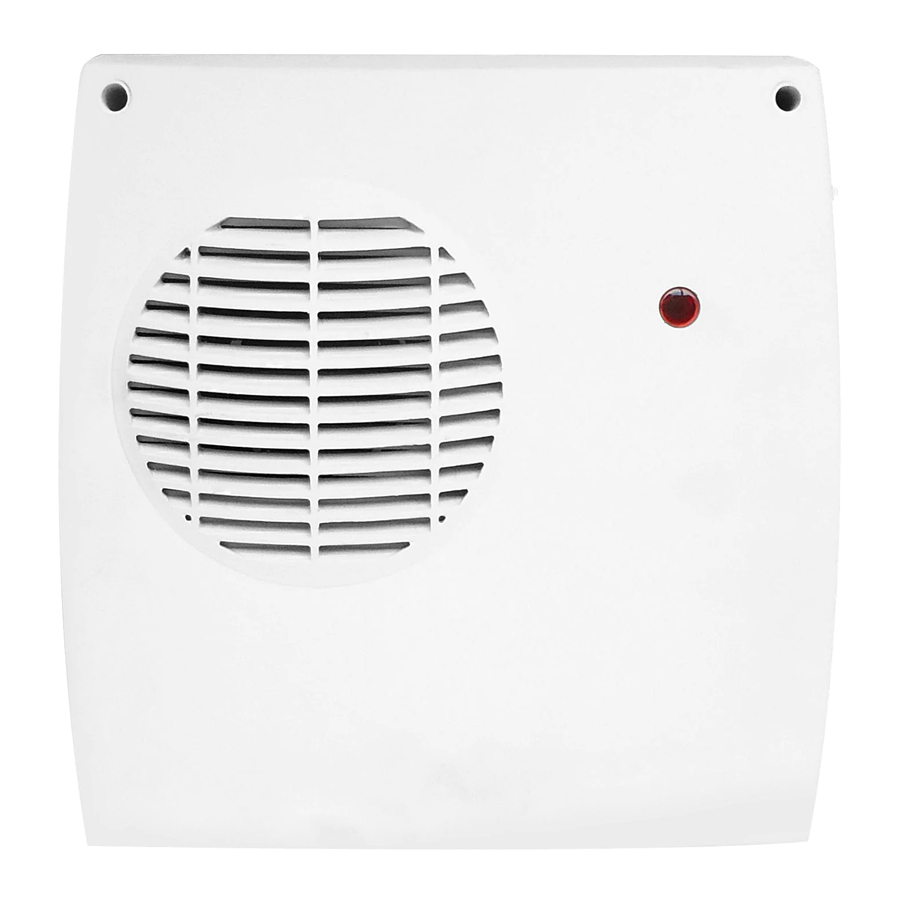

Eterna DFHT2KW - Heater With Runback Timer Installation Manual

A guide for qualified electricians

These instructions are provided as a guideline to assist you.

PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION AND RETAIN FOR FUTURE REFERENCE

Pack contents

1 x Downflow heater

1 x Fixing kit

READ THIS FIRST

This heater must be installed in accordance with the Building Regulations. These may be obtained from OPSI or viewed and downloaded from www.communities.gov.uk following the link for Building Regulations.

This heater is designed for wall mounting and must be used with the warm air vent facing downwards. This heater should not be used in any other orientation and should not be used as a free standing portable appliance.

ADVISORY: This heater must be installed at least 1.8m above the floor.

This heater must be installed so that switches and other controls (except the pull cord) cannot be touched by a person in the bath or shower.

The mounting position should allow the free movement of air around the heater. Obstructing the air flow could result in overheating.

This product is not intended to be used by children and persons with sensory, physical and/or mental impairments that would prevent them from using it safely.

Small children should be supervised to ensure that they do not play with this appliance.

Switch off the mains before commencing installation and remove the appropriate circuit fuse.

Suitable for indoor use only.

This product is suitable for installation on surfaces with normal flammability e.g. wood, plasterboard, masonry. It is not suitable for use on highly flammable surfaces (e.g. polystyrene, textiles).

Before making fixing hole(s), check that there are no obstructions hidden beneath the mounting surface such as pipes or cables.

The chosen location of your new heater should allow for the product to be securely mounted (e.g. to a firm wall) and safely connected to the mains supply.

Do not site the heater directly beneath a mains outlet socket.

If the location of your new heater requires the provision of a new electrical supply, the supply must conform with the requirements of the Building Regulations.

This product is designed for permanent connection to fixed wiring: this should be to a suitable ring circuit (protected with a 10 Amp MCB or fuse) or a fused spur (with a 10 Amp fuse) via a fused connection unit. The supply must incorporate a switch or other means of disconnection.

This product is not suitable for mounting within bathroom zones 0, 1 or 2 – it can be installed outside of zones where the permanent connection to the mains supply is made in accordance with the requirements of building and wiring regulations.

If installed in a bathroom, the supply circuit must be protected by a 30mA RCD.

Make connections to the electrical supply in accordance with the following code:
Live - Brown or Red • Neutral - Blue or Black

This product is double insulated, do not connect any part to Earth.

To avoid overheating, do not cover the heater.

The heater is fitted with 2 stage over-temperature protection for protection against brief excess of temperature, the heater has a resetting thermostatic device; for longer periods of excess temperature or higher excess temperatures, the heater is fitted with a one-shot thermal fuse which cannot be reset.

As you are making a fixed connection to the mains, you are advised at every stage of your installation to double-check any electrical connections you have made. After you have completed your installation there are electrical tests that should be carried out: these tests are specified in the Wiring Regulations (BS7671) referred to in the Building Regulations.

INSTALLATION

1. Choose the location for your new heater giving consideration to all of the points above.
2. Loosen the two screws at the top of the front of the heater and lift off the front cover.
3. Using the guide diagram above, mark the position of the top two fixing holes.
4. Use a spirit level to check holes are level.
5. Make the top two fixing holes using a suitable drill bit.
6. Insert the plastic plugs and screws leaving approximately 3mm of the shank protruding.
7. Hang the heater on the screws. If the fixings supplied are not suitable for your mounting surface, select suitable alternatives.
8. Mark the position of the third fixing hole using the heater as a template.
9. Remove the heater, make the fixing hole and insert the plastic plug.
10. Replace the heater adjusting the top two screws to make as tight a fit as possible.
11. Secure using the third fixing through the hole indicated opposite.
12. Remove the cable clamp from inside the heater.
13. Thread the supply cable through the hole in the rear of the case.
14. Make connections to the supply terminals according to the colour code (left). Ensure that there are no strands or whiskers protruding from the terminals.
15. Secure the cable under the cable clamp. Ensure that the cable is gripped firmly but take care not to over-tighten the screws.
16. This fitting is factory pre-set at 1kW operation and 30 minute run back timer. If a different output /time is required this can be set upon installation.
    Select desired mode of operation using the dip switches*

    1. On position 1kW / Off position 2kW
    2. On position 5 minutes
    3. On position 10 minutes
    4. On position 20 minutes
       *You can have multiple time dip switches selected at one time, this allows you to add the times together e.g dip switch 2 and 3 on = 15 minutes
17. Close and secure the front cover.
18. Restore the power and switch on.
19. Pull the switch cord to turn the heater on and it will automatically switch off when the selected Runback time has elapsed. The heater can then be restarted by pulling the switch cord twice, once to turn off the red indicator and a second time to restart the heater.

The heater can be turned off at any time before the Runback time has elapsed by pulling the switch cord and the red indicator will automatically turn off.

Children of less than 3 years should be kept away from the heater unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

ENERGY EFFICIENCY

The following suggestions will help you protect the environment and save money on your electricity bills:

Always switch heaters off when not in use.

Selecting the 1kW heat setting and / or adjusting the runback timer to a shorter time will help save energy.

This product complies with the LOT 20 ERP Directive.

CLEANING

Clean this fitting only with a soft dry cloth.

Do not use any chemical or abrasive cleaners.

EVENTUALLY, YOU MAY WANT TO REPLACE THIS PRODUCT

Regulations require the recycling of Waste from Electrical and Electronic Equipment (European "WEEE Directive" effective August 2005—UK WEEE Regulations effective 2nd January 2007). Environment Agency Registered Producer: WEE/ GA0248QZ.

WHEN YOUR PRODUCT COMES TO THE END OF ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE RECYCLE IT WHERE FACILITIES EXIST - DO NOT DISPOSE WITH HOUSEHOLD WASTE.

IF YOU EXPERIENCE PROBLEMS

If you believe your product is defective, please return it to the place where you bought it. Our Technical Team will gladly advise on any Eterna Lighting product, but may not be able to give specific instructions regarding individual installations.

Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk

Visit our website: www.eterna-lighting.co.uk

Issue 1019 Made in China
