Meyra-Ortopedia 1.360 Operating Manual

Folding wheelchair
Hide thumbs Also See for 1.360:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

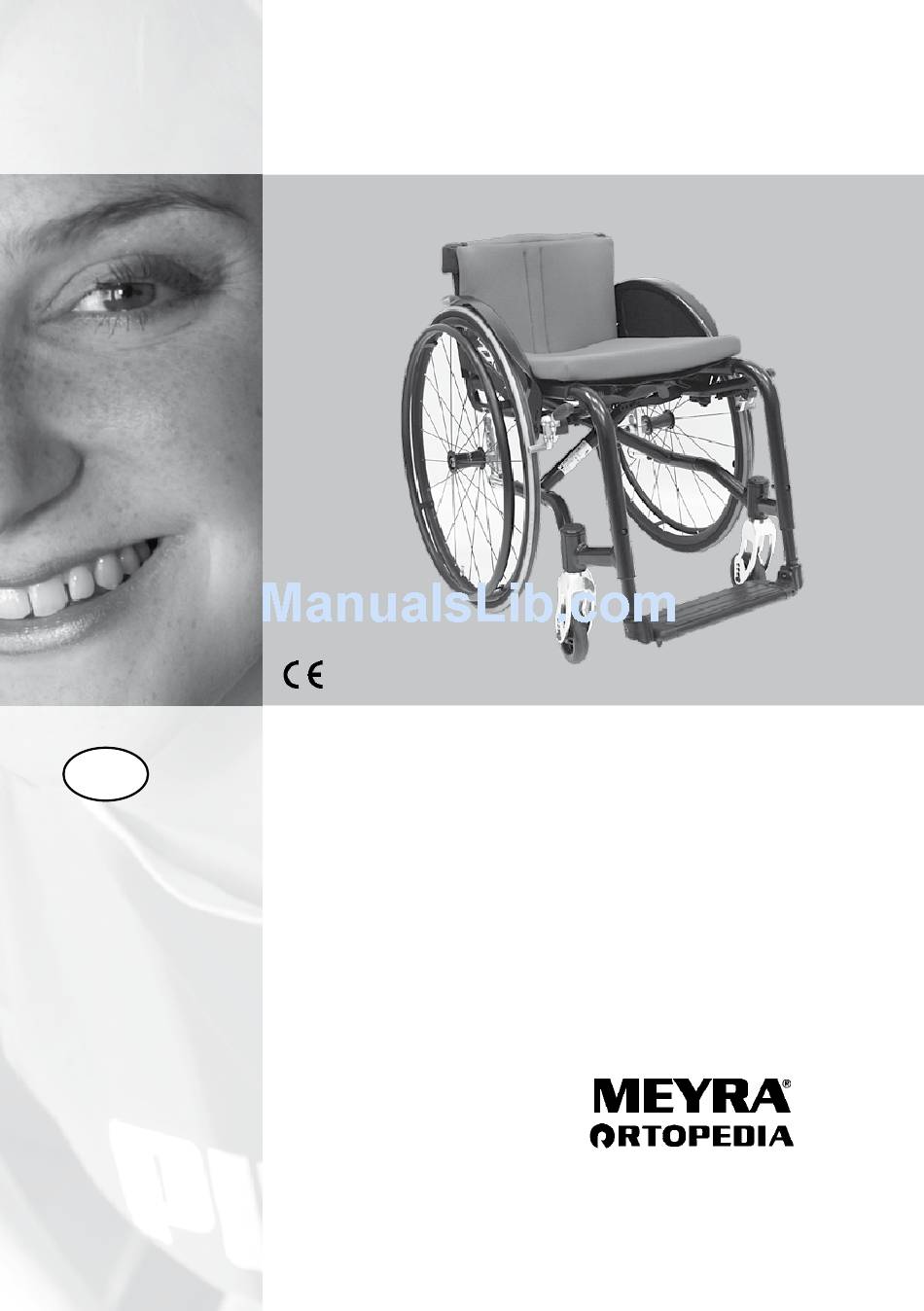

OPERATING MANUAL
GB

FOLDING WHEELCHAIR

Model 1.360
W e
m o v e
p e o p l e .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1.360 and is the answer not in the manual?

Questions and answers

Related Manuals for Meyra-Ortopedia 1.360

Summary of Contents for Meyra-Ortopedia 1.360

  • Page 1: Folding Wheelchair

    OPERATING MANUAL FOLDING WHEELCHAIR Model 1.360 m o v e p e o p l e .

  • Page 3: Table Of Contents

    Specifications....................8 Use........................8 Adjustment....................9 Reinstallment....................9 Life.span......................9 Overview...................... 10 Model 1.360 ....................10 Brake......................11 Locking the pressure brakes ................11 Releasing the pressure brakes ................12 Calf.belt......................13 Adjusting the calf belt ..................13 Removing/attaching the calf belt ..............13...
  • Page 4 Maintenance....................26 Maintenance .......................26 Information for the specialist dealer ............26 Maintenance schedule ..................27 Technical.data....................30 Model 1.360 ......................31 Meaning of the labels on the wheelchair ............34 Meaning of the symbols on the type plate ............35 Inspection.certificate.................. 36 Notes......................37 Warranty./.Guarantee.

  • Page 5: Introduction

    MEYRA-Ortopedia tech- nology. ☞ .Note: Please note that the illustrated...

  • Page 6: Important Information

    This operating manual applies to the Read and observe the following following model: documentation belonging to the wheelchair before first operation: Model 1.360 – this operating manual, – the safety and general handling instructions < Mechanical and mus- cle powered wheelchairs >.

  • Page 7: Indications

    INDICATIONS ACCEPTANCE If the following indications occur we All products are checked for faults recommend the application of this in the factory and packed in special mobility product: boxes. ☞ Walking disability resp. extremely ☞ .Note: limited walking ability as part of However, we request that you the basic need to move around in check the vehicle for possible...

  • Page 8: Specifications

    SPECIFICATIONS The wheelchair was developed for The wheelchair is applicable on level, adults and adolescents. firm surfaces and can be used as fol- lows: The wheelchair solely serves to trans- – for indoors (e.g. apartment, day port one person in the seat and not care), as a hauling aid, transporter or similar.

  • Page 9: Adjustment

    ADJUSTMENT LIFE.SPAN The specialist workshop will hand out We expect an average lifespan of the wheelchair to you under consid- about 4 years for this product, as far eration of all relevant safety instruc- as the product is applied for its des- tions, ready for operation and adjust- ignated purpose and all maintenance ed to your needs.

  • Page 10: Overview

    OVERVIEW Model.1.360 The overview shows the most important components of the wheelchair. Pos. Description Pos. Description 6 Drive wheel 1 Back support 7 Pressure brake 2 Clothes guard / arm support 8 Locking knob / Quick release axle 3 Seat cushion...

  • Page 11: Brake

    BRAKE By locking the pressure brakes [1] with the brake lever (2), the wheelchair is secured against rolling away uninten- tionally (parking brake). ☞ .Note: Therefore observe the mainte- nance instructions as well as safety and general handling instructions < Mechanical and muscle powered wheelchairs >...

  • Page 12: Releasing The Pressure Brakes

    Releasing.the.pressure. brakes Swivel both brake levers up (5) resp. inward (6) as far as possible. ☞ Do not grab into the area of the crossbrace [7] when releasing the pressure brake (6). – Danger of jamming the fingers!

  • Page 13: Calf.belt

    CALF.BELT The calf belt (1) prevents the feet from sliding off the back of the footboard. Adjusting.the.calf.belt – For length adjustment, the calf belt is guided around the front frame tubes, view arrows [2] and adjusted in length with a velcro fastener.

  • Page 14: Leg.supports

    LEG.SUPPORTS For entry and exiting and well as „scuttling“ (slow movement of the wheelchair with the feet) the foot- board [1] can be folded up [2]. Attention: Before any actions on the leg supports the wheelchair is to be secured against unintentional rolling motions.

  • Page 15: Clothes.guard

    CLOTHES.GUARD The clothes guard [1] protects the clothes from the open spokes of the drive wheels and from spray water. . Attention: No not grab between the clothes guard and tyre. – Danger of jam- ming! • Do not lift or carry the wheelchair by holding on to the clothes guard / arm supports.

  • Page 16: Back.support

    BACK.SUPPORT Back.support.belt Fitting.the.back.belt The tensioning of the back support [1] is adjustable. – Pull off the flap of the back sup- port and fold it to the front [2]. – Open the Velcro fastener of the belt (3) that you wish to adjust and close it again after adjustment.

  • Page 17: Push Handles

    Push.handles The height adjustable push handles [1] are attached to the back support with a clamping jig each (2) and can be adjusted to the requirements of the accompanying person. Height.adjustable.push.handles The push handles are continuously height adjustable and secured against pulling out.

  • Page 18: Removing The Push Handles

    Removing.the.push.handles Loosen the clamping lever (3) and pull the according push handle up as far as it will go. Press the respective spring button (4) inward and pull the push handle out of the clamping device (5). Inserting.the.push.handles Press down the spring button (4) and insert the push handle from the top into the respective clamping device (5).

  • Page 19: Seat

    SEAT Seat.belt Utensils.bag A storage pouch (1) with velcro fas- tener is located underneath the seat belt. In order to open the storage pouch (1) pull the leather latch down (2). To close the storage pouch press the front edge back up.

  • Page 20: Wheels

    WHEELS Tyre.damage.on.pneumatic. tyres ☞ For repairing tyre damage we rec- ommend the use of a foam car- tridge that is available in special- ity shops. – Afterwards look up a specialist workshop as soon as pos- sible. Drive.wheels The drive wheels are on a full quick release axle (1).

  • Page 21: Quick Release Axle With Tetra Locking Device Code 697

    Quick.release.axle.with.tetra.lock- ing.device.Code.697 The drive wheels can be removed and reassembled without any tools. Removing the drive wheel: – First turn the activation wheel (1) of the quick release axle as far as possible about 90° in the direction of the rim [2]. ☞...

  • Page 22: Support.castors

    SUPPORT.CASTORS The support castors [1] serve to raise the tilting stability and can be swiv- elled inward underneath the seat (2). ☞ Depending on the version the sup- port castors can be attached singly or as a pair. Swinging.the.support.castors Press the support castors out of the locking then swivel them inward until the lock engages automatically [2].

  • Page 23: Retaining.strap

    RETAINING.STRAP The retaining strap [1] serves to hold a person sitting in the wheelchair in place. – Additional stabilisation of the sit- ting position. – Prevents the user from slipping forwards out of the seat (e.g. dur- ing abrupt braking). The retaining strap is slid with the loops over the back tubes.

  • Page 24: Folding/Unfolding

    FOLDING/UNFOLDING Folding.the.wheelchair Your wheelchair can be folded in a few moments without tools being re- quired [1]. – Remove the seat cushion, if appli- cable. – Remove the calf belt if necessary. – Remove the leg supports or foot- board, resp. fold up both foot- plates, view chapter <...

  • Page 25: Transport

    TRANSPORT Transport.security The wheelchair is only to be secured through the four securing points [1] and (2). ☞ The anchor positions are marked with the symbol (3). ☞ The procedure for securing the wheelchair can be read in the document < Safety and general handling instructions <...

  • Page 26: Maintenance

    The maintenance and service manual for this product can be found on our website under: < www.meyra-ortopedia.com >. You can for example find the follow- ing information in these manuals: 1. Adjustments that can be carried out with tools.

  • Page 27: Maintenance Schedule

    Maintenance.schedule WHEN WHAT REMARK Carry out test yourself or Before. starting. Test.brakes.for.fault- with a helper. less.operation Activate brake lever to the limit. The locked wheels should not be able to turn under op- erating conditions. If they can still turn, the brakes must be re- paired by an authorised specialist workshop.
  • Page 28 WHEN WHAT REMARK Carry out test yourself or Every.2.months Check.frame.tubes. for.damage with a helper. (depending on dis- If deformations or cracks tance covered) occur in the welding seams, contact a specialist work- shop immediately for re- pairs. – Danger of acci- dents! Do it yourself or with the Every.2.months...
  • Page 29 WHEN WHAT REMARK Every.6.months Check (depending on fre- View < Maintenance > in – Cleanness. quency of use) document Safety- and gen- – General condition. eral handling instructions < Mechanical and muscle powered wheelchairs >. Manufacturer rec- ommendation: Every.12.months Maintenance.jobs To be carried out by the (depending on fre- specialist dealer.

  • Page 30: Technical.data

    TECHNICAL.DATA Tyre.filling.pressure: Maximum tyre pressure is printed on All model dependent specifications the tyres on each side. within the < Technical data > refer to Full tyre pressure – steering wheel the standard version of the respective Standard: models. 2.5 - 3.5 bar = 36 - 50 psi The overall length depends on the po- sition and size of the drive wheels.

  • Page 31: Model 1.360

    Model.1.360 All data within the following table relates to the standard version of the stated model. Dimensional tolerance ± 1 cm, ± 2°. Model: .......................1.360. Type plate: ................at the crossbrace tube Life span: ......................4 years Dimensions Dimensions:.......... min../.max../.manufacturer.setting Overall length (frame Code 346): Short frame: ..................
  • Page 32 Dimensions:.......... min../.max../.manufacturer.setting Back support angle: bent at manufacturer (firm): ............... 84° / 96° / 96° Seat tilt: ..................... 0° / 15° / --- Leg support angle: Code 346 ......................... 77° Code 347 ......................... 85° Foot support to seat, without seat cushion (lower shank length): with foot board: ..................
  • Page 33 Permitted.inclination/slopes max. obstacle height (depending on the setting of the leg support height): .......0 to 100 mm min. turning radius diameter: ..............1100 mm max. permissible rising gradient: .............. 4.5° (8 %) max. permissible falling gradient: ............. 4.5° (8 %) max.

  • Page 34: Meaning Of The Labels On The Wheelchair

    Meaning.of.the.labels.on.the.wheelchair Attention! Read the operating manuals and other provided doc- umentation. Anchor point for transport safety of the wheelchair.

  • Page 35: Meaning Of The Symbols On The Type Plate

    Meaning.of.the.symbols.on.the.type.plate Manufacturer Order number Serial number Production date (Year – Calendar week) Permitted user weight Max. permissible total weight Permitted axle loads Max. permissible rising gradient Max. permissible falling gradient Max. permitted final speed The product is approved as a seat within a motor vehicle. The product is not approved as a seat within a motor vehicle.

  • Page 36: Inspection.certificate

    INSPECTION.CERTIFICATE Vehicle.data: Model: Delivery note no.: Serial-no.(SN): Recommended.safety.inspection.2nd.year Recommended.safety.inspection.1st.year (at.least.every.12.months) (at.least.every.12.months) Stamp of specialist dealer: Stamp of specialist dealer: Signature: Signature: Place, date: Place, date: Next safety inspection in 12 months Next safety inspection in 12 months Date: Date: Recommended.safety.inspection.3rd.year Recommended.safety.inspection.4th.year (at.least.every.12.months) (at.least.every.12.months)

  • Page 37: Notes

    NOTES...

  • Page 38: Warranty./.Guarantee

    WARRANTY./.GUARAN- tions cannot be declared as warranty or guarantee claims. . Attention: Failure to observe the instructions We accept legal liability for this prod- in the operating manual, improp- uct within the scope of or general erly carried out maintenance work terms and conditions and warranty and, especially, technical changes and the guarantee according to our...

  • Page 39: Inspection Certificate For Transfer

    WARRANTEE./.GUARANTEE.SECTION Please fill out! Copy if necessary and send the copy to the specialist dealer. Warranty / Guarantee Model designation: Delivery note no.: SN (view type plate): Date of delivery: Stamp of the specialist dealer: Inspection.certificate.for.transfer Vehicle.data: Serial-no.(SN): Stamp of specialist dealer: Model: Signature: Place, date:...
  • Page 40 Your specialist dealer: MEYRA-ORTOPEDIA Vertriebsgesellschaft mbH Meyra-Ring 2 · D-32689 Kalletal-Kalldorf P.O. Box 1 703 • D-32591 Vlotho Fon +49 (0)5733 922-311 Fax +49 (0)5733 922-9311 info@meyra-ortopedia.de www.meyra-ortopedia.de m o v e p e o p l e . 205 338 501 (Status: 2011-02) All technical modifications reserved! •...
