Meyra-Ortopedia 1.610 Operating Manual

Electric wheelchair
Table of Contents

Advertisement

Quick Links

GB
OPERATING MANUAL
ELECTRIC WHEELCHAIR
Model 1.610
Model 1.611
Model 1.612
W e
m o v e
p e o p l e .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1.610 and is the answer not in the manual?

Questions and answers

Summary of Contents for Meyra-Ortopedia 1.610

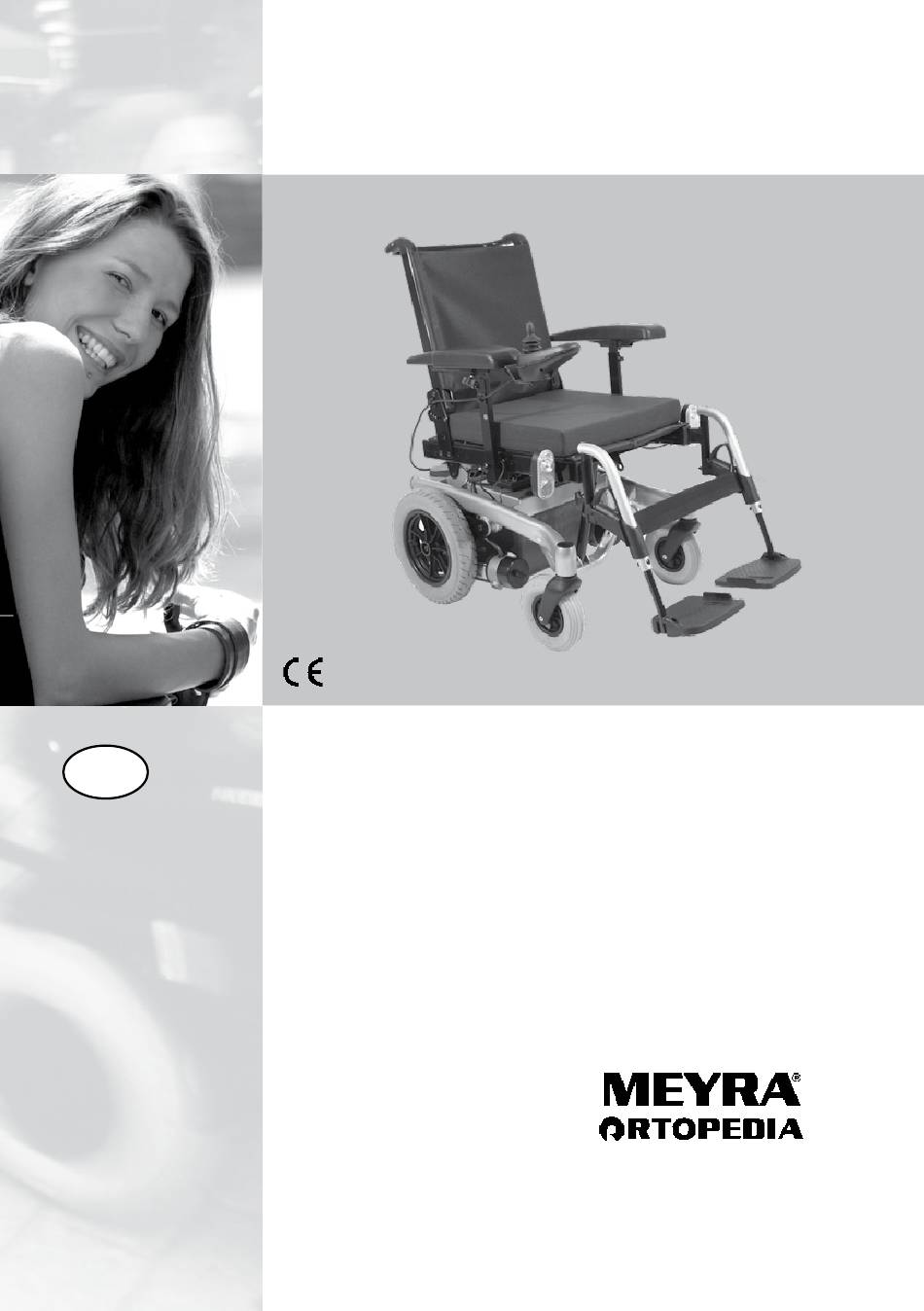

  • Page 1 OPERATING MANUAL ELECTRIC WHEELCHAIR Model 1.610 Model 1.611 Model 1.612 m o v e p e o p l e .
  • Page 2: Table Of Contents

    List of models ....................7 Acceptance ....................7 Use ......................... 8 Adjustment ....................8 Life span ......................9 Overview ..................... 10 Model: 1.610 .......................10 Model: 1.611 .......................11 Model: 1.612 .......................12 Handling the electric wheelchair .............. 13 Securing the electric wheelchair ...............13 Functional checks ....................13 Driving behaviour ....................13...
  • Page 3 Selecting the operation ................16 Pre-operation checks ..................18 Battery charging procedure .................18 Positioning the operating module ..............19 Function description ..................19 Adjusting the distance to the padded arm support ........19 Removing the operating module ..............19 Inserting the operating module ..............19 Swivelling the operating module ..............20 Height adjustment of the operating module ..........20 Leg supports ....................
  • Page 4 Arm supports ....................30 Removing the arm support ................30 Inserting the arm support ..................30 Back support ....................31 Folding down the back support..............31 Unfolding the back support .................31 Adjusting the back support angle ...............31 Secure positions of the back support ............32 Adjustable back ....................33 Removing the back support upholstery ............33 Placing the back support upholstery ............33...
  • Page 5 Fault correction ....................49 Technical data ..................... 50 Kilometric performance ..................50 Hill climbing ability ..................50 Model 1.610 / 1.611 ....................51 Model 1.612 ......................56 Meaning of the labels on the electric wheelchair ...........60 Meaning of the symbols on the type plate ............61 Inspection certificate .................
  • Page 6: Introduction

    PDF-files of above mentioned doc- ing an electric wheelchair from this uments on our website under: series. < www.meyra-ortopedia.com >. With all equipment and their accesso- Alternatively users with visual impair- ries the electric wheelchair offers the ments can have the documentation respective adaptation to your disabil- read out by a helper.
  • Page 7: Indications

    LIST OF MODELS If the following indications occur we This operating manual applies to the recommend the application of this following models: mobility product: Model 1.610 Walking disability resp. extremely Model 1.611 ☞ limited walking ability as part of Model 1.612 the basic need to move around in your own home.
  • Page 8: Use

    ADJUSTMENT The electric wheelchair, with attached The specialist workshop will hand out leg supports and arm supports, serves the electric wheelchair to you under exclusively for the conveyance of one consideration of all relevant safety sitting person. Other pulling or trans- instructions, ready for operation and porting uses do not comply with its adjusted to your needs.
  • Page 9: Life Span

    LIFE SPAN We expect an average lifespan of about 5 years for this product, as far as the product is applied for its des- ignated purpose and all maintenance and service guidelines. The life span of your product depends upon the frequency of use, the appli- cation environment and care.
  • Page 10: Overview

    OVERVIEW Model: 1.610 The overview shows the most impor- tant components and operating de- vices of the electric wheelchair. Pos. Description 1 Back support 2 Arm support 3 Seat cushion 4 Leg support 5 Calf belt 6 Footplate 7 Steering wheel...
  • Page 11: Model: 1.611

    Model: 1.611 The overview shows the most impor- tant components and operating de- vices of the electric wheelchair. Pos. Description 1 Back support 2 Arm support 3 Seat cushion 4 Leg support 5 Calf belt 6 Footplate 7 Steering wheel 8 Drive wheel 9 Push bar 10 Operating module...
  • Page 12: Model: 1.612

    Model: 1.612 The overview shows the most impor- tant components and operating de- vices of the electric wheelchair. Pos. Description 1 Back support 2 Arm support 3 Seat cushion 4 Leg support 5 Calf plate 6 Footplate 7 Steering wheel 8 Drive wheel 9 Push bar 10 Operating module...
  • Page 13: Handling The Electric Wheelchair

    HANDLING THE ELEC- BRAKES TRIC WHEELCHAIR Operating brake The motors work electrically as oper- Securing the electric wheel- ating brake and carefully brake the chair electric wheelchair down without jerks to stillstand. The electric wheelchair is to be se- cured as follows to prevent it from Braking the wheelchair rolling off unintentionally: For allotted braking of the wheelchair...
  • Page 14: Locking The Brakes

    Locking the brakes To engage the brakes swivel the selec- tion lever drive-/push mode on both sides as far as possible into drive mode [1]. Activation of the selection lever ☞ is intended for an accompanying person. Attention: It should not be possible to push the electric wheelchair forward when the brakes are engaged.
  • Page 15: Drive-/Push Mode

    Drive-/push mode Attention: Only switch the electric wheelchair to push mode when it is standing still for positioning or in case of emergencies, but not on slopes/ hills. The electric magnetic brakes are ☞ switched off in the push mode. –...
  • Page 16: Selecting The Operation

    SELECTING THE OPERA- TION In order to obtain operational readi- ness of the electric wheelchair the fol- lowing directions are to be carried out in the indicated order. Note: ☞ Charge the drive batteries via the operating module before the first journey.
  • Page 17 3. Check the position of the oper- ating module The operating module should be po- sitioned in such a way that you can comfortably and safely steer the elec- tric wheelchair. Adjusting the distance to the padded arm support: The distance of the operating module to the padded arm supports can be adjusted after loosening the clamping screw (3).
  • Page 18: Pre-Operation Checks

    Pre-operation checks Before starting to drive, the following should be checked: the battery charging condition, ☞ the setting of the preselected final ☞ speed. – For this observe the operating manual < Operating module >. Battery charging procedure For the battery charging procedure ☞...
  • Page 19: Positioning The Operating Module

    Positioning the operating module Function description You will find a detailed description of the keys and symbols in the operating manual for < Operating module >. The position of the operating module can be adjusted to suit the individual size of the user. The operating module can also be removed for transporta- tion or storage and can be laid on the seat or stored separately.
  • Page 20: Swivelling The Operating Module

    Swivelling the operating module With the optional swivel away operat- ing module adapter [1] the operating module can be swivelled back to the side (2) so that it is located parallel to the arm support. This makes it possi- ble, for example: –...
  • Page 21: Leg Supports

    LEG SUPPORTS Attention: Before any actions on the leg sup- ports the wheelchair is to be se- cured against unintentional rolling motions. Therefore observe chapter < Se- ☞ curing the electric wheelchair >. Calf belt The removable calf belt (1) prevents the feet from sliding off the back of the footplates.
  • Page 22: Leg Support Lower Part

    Leg support lower part The footplates, resp. footboard needs to be folded up before entry or exit [1]. Check the locking points! ☞ – Remove both feet from the foot- plates. – Remove the calf belt (2), if present. Hereto observe chapter < Calf ☞...
  • Page 23: Leg Support Upper Part

    Leg support upper part The upper leg support with an in- serted lower leg support is termed leg support. Turning the leg supports to the side For easy transfer out of/into the elec- tric wheelchair as well as driving clos- er to a closet, bed or bathtub the leg supports can be swivelled away to- ward the in-/outside [1] and [2].
  • Page 24: Swivelling In The Leg Supports

    Swivelling in the leg supports For inward swivelling, let the leg sup- ports swivel forward until the lock au- dibly engages [1]. Note: ☞ After audibly swivelling the leg supports inward check the respec- tive locking device. Afterwards observe chapter < Low- ☞...
  • Page 25: Removing The Leg Supports

    Removing the leg supports For easy transfer into and out of the electric wheelchair as well as a re- duced wheelchair length (important for transport) the leg supports can be removed [1]. Note: ☞ Remove the calf belt before swivel- ling away the leg supports.
  • Page 26: Mechanically Height-Adjustable Leg Supports

    Mechanically height-adjust- able leg supports Attention: Never put the free hand into the adjustment mechanism while ad- justing the height adjustable leg support. – Danger of crushing! • Have the leg support that is to be adjusted secured against falling away by an accompanying person.
  • Page 27: Electrically Height-Adjustable Leg Support

    Electrically height-adjusta- ble leg support The electrically height adjustable leg support [1]+[2] automatically receives electric contact when hooked on. Attention: Never put the free hand into the adjustment mechanism while ad- justing the height adjustable leg support. – Danger of crushing! Height adjustment –For height adjustment, raise or lower the leg support to the desired height...
  • Page 28: Removing The Electrically Height Adjustable Leg Support

    Removing the electrically height adjustable leg support In order to remove the leg support, depending on version, first pull the locking lever (1) back, press it in or fold it up or down. Afterwards swivel the leg support sideways and remove it toward the top [2].
  • Page 29: Hanging The Electrically Height Adjustable Leg Support Into Place

    Hanging the electrically height adjustable leg support into place Note: ☞ After attachment swivel the leg supports inward. Therefore observe chapter < Swiv- ☞ elling in the leg supports >. – Press the leg supports, swivelled to the side, parallel to the front frame tube and lower it into place.
  • Page 30: Arm Supports

    ARM SUPPORTS Attention: Do not use the arm supports [1] to lift or carry the electric wheelchair. • Do not drive without the arm sup- ports! Removing the arm support To remove the arm support, loosen the clamping screw (2) first and then pull out the arm support toward the top .
  • Page 31: Back Support

    BACK SUPPORT The back support can be folded down for storage or transport. Note: ☞ For better demonstration of the wire cable (1) the back support is shown without cushion. Folding down the back support – If required remove the seat pad (velcro fastener).
  • Page 32: Secure Positions Of The Back Support

    Attention: Any change to the seat inclination will lead to different safe back sup- port adjustments! Model 1.610/1.611 Seat incli- safe position of the back support Adjusted seat inclination nation inclination [1] 0°...
  • Page 33: Adjustable Back

    Adjustable back The adjustable back is adjustable through a velcro strap on the span- ning straps (2). Removing the back support up- holstery For removal, first pull off the rear part of the back support upholstery (1), then fold it over to the front and pull it off of the adjustable back strap (3).
  • Page 34: Electrically Adjustable Back Support

    Electrically adjustable back support The back support [1] is electrically ad- justable. Note: ☞ Herefore view the operating man- ual < Operating module >. Attention: Only adjust the back support when the electric wheelchair is standing on a level surface. A danger of tip- ping over exists on gradients! Folding down the electrically ad- justable back support...
  • Page 35: Back Support Upholstery

    Back support upholstery The back support upholstery is se- cured to the back support shell with Velcro fasteners and can be pulled off [1]. Secure positions of the back sup- port The diverse possible seat adjustments also includes such settings, that may only be used as resting positions, since they might lead to instable driving conditions in drive mode.
  • Page 36: Seat

    SEAT Seat pad The seat pad [1] is attached to the seat plate with velcro straps and can be re- moved for cleaning and maintenance. Replace and attach the seat pad again after cleaning or maintenance [1]. – Velcro fastener. Seat cushion The seat cushion is placed with the burling side onto the seat plate [2].
  • Page 37: Electrically Adjusting The Seat Angle

    Electrically adjusting the seat an- The seat inclination [1] is administrat- ed through the operating module or a separate adjustment module. Note: ☞ Therefore observe operating man- ual < Operating module >. Rising aid The seat is angled forward for the stand-up aid [2] (negative seat angle).
  • Page 38: Seat Height Adjustment

    Seat height adjustment The seat height [1] can be adjusted through the operating module. This continuously increases the ☞ seat height by up to 300 mm. Note: ☞ Therefore observe operating man- ual < Operating module >. If the seat is moved upward by ☞...
  • Page 39: Retaining Strap

    RETAINING STRAP The retaining strap serves to strap in a person sitting in the electric wheel- chair. – Additional stabilisation of the sit- ting position. – Prevents the user from sliding for- wards out of the electric wheel- chair. – Continuous adjustment to suit the user’s needs.
  • Page 40: Head Support

    HEAD SUPPORT The head support is swivel/proof, height- and depth adjustable and re- movable. Attention: We recommend the fitting of two rear-view mirrors for driving with a head support. Adjustment of the head support The head support can be detached or adjusted in height after the clamping lever (1) has been slackened.
  • Page 41: Attendant Control With Priority Switch

    ATTENDANT CONTROL WITH PRIORITY SWITCH The control unit for accompanying person enables the accompanying person an easy control of the electric wheelchair with auxiliary operating module. Positioning the controller Note: ☞ Switch off the operating module before position adjustment! – This prevents an unwanted movement of the electric wheelchair.
  • Page 42: Lighting

    LIGHTING For driving outdoors and on public roads the electric wheelchair can be fit with LED-lighting equipment. The lighting is activated over the op- erating module for the driver. Note: ☞ Observe the operating manual < Operating module > as well as the safety and general handling instructions <...
  • Page 43: Loading And Transportation

    >! – This document and further information can be The electric wheelchair can be loaded accessed on our website < www. with the aid of ramps or lifting plat- meyra-ortopedia.com > in the forms. < Download Archive >. Note: ☞...
  • Page 44: Transport Security

    Transport security The electric wheelchair is only to be secured through the anchoring posi- tions (1)+(3) resp. (2)+(4). The anchor positions are marked ☞ with a symbol. The procedure for securing the ☞ wheelchair can be read in the document < Safety and general handling instructions electric vehi- cles >...
  • Page 45: Maintenance Schedule

    Maintenance schedule WHEN WHAT REMARK Carry out test yourself or Before starting General with a helper. Test for faultless op- eration. Carry out test yourself or Checking the mag- with a helper. netic brake If the electric wheelchair Move the selection le- can be pushed, have the ver for the drive/push brakes...
  • Page 46 WHEN WHAT REMARK Do it yourself or with the Every 6-8 weeks Wheel attachments aid of a helper. (depending on dis- Wheel nuts or screws tance covered) Securely tighten any loos- are to be checked for ened wheel nuts or screws tight fit and retighten again af- ter 10 operating hours or...
  • Page 47: Fuses

    Fuses Replacing the fuses Before replacing fuses, park the elec- tric wheelchair on a level surface and secure it from rolling away. Therefore observe chapter < Secur- ☞ ing the electric wheelchair >. Attention: Only replace the safety fuse with a safety fuse of the same type! New fuses can be obtained for exam- ple at petrol stations.
  • Page 48: Lighting

    Lighting The lighting (1)+(2) is equipped with longlife LED-technology. Note: ☞ If a turn-signal bulb is defective, the remaining one blinks at double frequency. Immediately have a defective ☞ LED-lamp repaired by a special- ist workshop. Headlights The housing of the light (1) must be adjusted so that the light cone is visi- ble on the driving surface.
  • Page 49: Fault Correction

    Fault correction Fault Cause Remedy Battery indicator on Battery fuse is defec- Replace defective fuse the operating module tive or not correctly in- or clean contacts and does not light up after serted. insert correctly. the switch-on. Plug connection of the Check the plug connec- power supply without tions.
  • Page 50: Technical Data

    – frequently necessary steering ma- TECHNICAL DATA noeuvres, – reduced driving speed (especially Kilometric performance at walking speed). Kilometric performance depends to a In practical use, the kilometric per- large extent on the following factors: formance under 'normal conditions' is –...
  • Page 51: Model 1.610 / 1.611

    Overall length (incl. footplates): ..........1130 / 1130 / 1130 mm Overall width: Model 1.610 (12"-wheels): ............590 / 800 / 590 mm Model 1.611 (12"-wheels): ............580 / 800 / 580 mm Model 1.610 (14"-wheels): ............630 / 800 / 630 mm Model 1.611 (14"-wheels): ............
  • Page 52 Backrest height: Standard-/adjustable back support strap (model 1.610): ....40 / 50 / 50 cm Standard-/adjustable back support strap (model 1.611): ....40 / 50 / 50 cm ErgoSeat: ....................53 / 57 / 53 cm Recaro: ........................64 cm Back support angle mechanical: ............-10°/ 30° / 10°...
  • Page 53 Storage temperature without drive batteries: ....... -40 °C to +65° C Drive batteries, sealed: Drive batteries (model 1.610): ......2 x 12 V 38 Ah (5 h) / 45 Ah (20 h) Drive batteries (model 1.611): ......2 x 12 V 43 Ah (5 h) / 50 Ah (20 h) Drive batteries: ...........
  • Page 54 Weights (basic equipment): ..........Model 1.610 / 1.611 max. permissible total weight: .............. 220 / 280 kg permitted axle load front: ..............110 / 140 kg permitted axle load rear: ..............150 / (180) kg Max. permissible user weight: including additional load: ..............120 / 160 kg max.
  • Page 55 Dimensions: ......... min. / max. / manufacturer setting front seat height (SH): Front edge seat plate (without seat cushion) (model 1.610): ..50 / 53 / 50 cm Front edge seat plate (without seat cushion) (model 1.611): ..51 / 53 / 53 cm Seat inclination electric: ................
  • Page 56: Model 1.612

    Model 1.612 All data within the following table relates to the standard version of the stated model. Dimensional tolerance ± 1.5 cm, ± 2°. Model: ..................... 1.612 Type plate: ................right on the main frame Class of use as per DIN EN 12184: ..............Class B Life span: ......................
  • Page 57 Lower shank length (LSL), without seat cushion: Seat plate (min. / max.): ................28 / 43 cm ErgoSeat (min. / max.): ................35 / 50 cm Recaro / Basic-Seat (min. / max.): ...............35 / 50 cm Leg support angle adjustable, Code 92/86: .......... 110° to 180° Wheels: Steering wheel: ø...
  • Page 58 Drive batteries: Drive batteries, sealed: ........2 x 12 V 43 Ah (5 h) / 50 Ah (20 h) Drive batteries, sealed: ........2 x 12 V 63 Ah (5 h) / 73 Ah (20 h) Max. battery dimensions (LxWxH): ..........26 x 17.4 x 20.5 cm Range (see Kilometric performance): 50 Ah (20 h) with 6 km/h:..............
  • Page 59 Weights (basic equipment): Max. permissible total weight: ............... 320 kg Permitted axle load front:................160 kg Permitted axle load rear: ................220 kg Max. permissible user weight: including additional load: ................160 kg with seat lift Code 27 (including additional load): ........140 kg Max.
  • Page 60: Meaning Of The Labels On The Electric Wheelchair

    Meaning of the labels on the electric wheelchair Attention! Read the operating manuals and other provided doc- umentation. Do not lift the electric wheelchair at the arm sup- ports or leg supports. Removable parts are not suited for carrying the wheelchair.
  • Page 61: Meaning Of The Symbols On The Type Plate

    Meaning of the symbols on the type plate Manufacturer Order number Serial number Production date (Year – Calendar week) Permitted user weight Max. permissible total weight Permitted axle loads Max. permissible rising gradient Max. permissible falling gradient Max. permitted final speed The product is approved as a seat within a motor vehicle The product is not approved as a seat within a motor vehicle.
  • Page 62: Inspection Certificate

    INSPECTION CERTIFICATE Recommended safety inspection 1st year (at least every 12 months) Vehicle data: Stamp of specialist dealer: Model: Signature: Delivery note no.: Place, date: Serial-no. (SN): Next safety inspection in 12 months Date: Recommended safety inspection 3rd year Recommended safety inspection 2nd year (at least every 12 months) (at least every 12 months) Stamp of specialist dealer:...
  • Page 63: Notes

    NOTES...
  • Page 64 NOTES...
  • Page 65 NOTES...
  • Page 66 Interferences through radiation WARRANTY / GUARAN- sources such as mobile phones with high transmission power, HiFi-equip- ment and other extreme interference We accept legal liability for this prod- radiators outside of norm specifica- uct within the scope of or general tions cannot be declared as warranty terms and conditions and warranty or guarantee claims.
  • Page 67: Warranty / Guarantee

    Warrantee / Guarantee section Please fill out! Copy if necessary and send the copy to the specialist dealer. Warranty / Guarantee Model designation: Delivery note no.: SN (view type plate): Date of delivery: Stamp of the specialist dealer: Inspection certificate for transfer Vehicle data: Serial-no.
  • Page 68 Your specialist dealer: MEYRA-ORTOPEDIA Vertriebsgesellschaft mbH Meyra-Ring 2 · D-32689 Kalletal-Kalldorf P.O. Box 1 703 • D-32591 Vlotho Fon +49 (0)5733 922-311 Fax +49 (0)5733 922-9311 info@meyra-ortopedia.de www.meyra-ortopedia.de m o v e p e o p l e . 205 338 101 (Status: 2012-09) Original operating manual! Subject to technical modifications!
