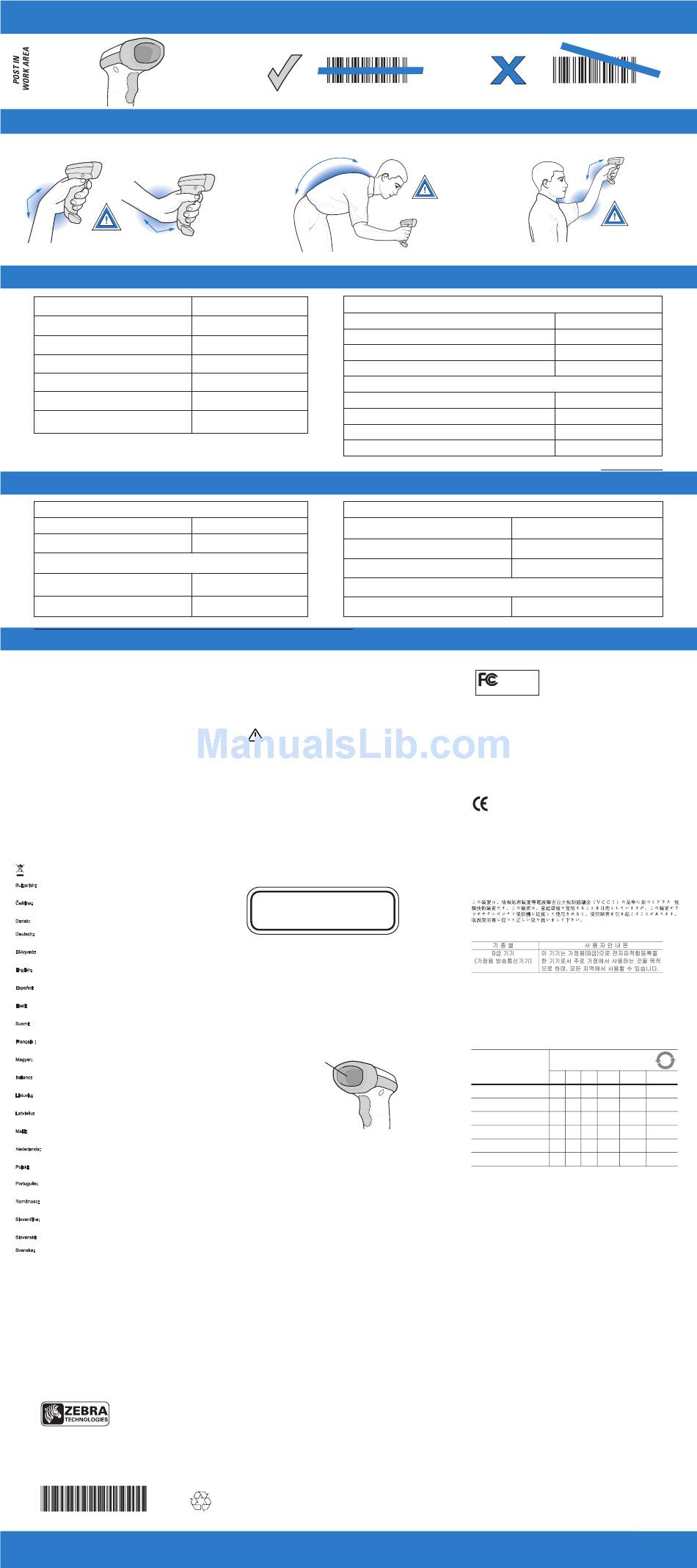

LI2208 LINEAR IMAGER
Avoid Extreme Wrist Angles
AVOID EXTREME
WRIST ANGLES
BEEPER INDICATIONS
Indication
Power up
Bar code decoded
Transmission error detected; data is ignored
Successful parameter setting
Correct programming sequence performed
Incorrect programming sequence, or Cancel
bar code scanned
Scanner not working
No power to scanner
Scanner is disabled
Scanner decoding bar code, but data not transmitting to host
Host interface not configured properly
Interface cable is loose
© 2014 Symbol Technologies, Inc.
Zebra reserves the right to make changes to any product to improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein. No license is granted, either expressly or by implication,
estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Zebra products might be used. An implied license
exists only for equipment, circuits, and subsystems contained in Zebra products.
Power Supply
Use ONLY a Zebra approved UL LISTED ITE (IEC/EN 60950-1, SELV) power supply with electrical ratings:
Output 5Vdc, min 850mA, with a maximum ambient temperature of at least 40 degrees C. Use of alternative
power supply will invalidate any approvals given to this unit and may be dangerous.
Warranty
For the complete Zebra hardware product warranty statement, go to:
http://www.motorolasolutions.com/warranty.
For Australia Only.
This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71 Robinson Road, #05-02/03,
Singapore 068895, Singapore. Our goods come with guarantees that cannot be excluded under the
Australia Consumer Law. You are entitled to a replacement or refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Zebra Technologies Corporation Australia's limited warranty above is in addition to any rights and
remedies you may have under the Australian Consumer Law. If you have any queries, please call Zebra
Technologies Corporation at+65 6858 0722. You may also visit our website: http://www.zebra.com for the
most updated warranty terms.
Service Information
If you have a problem using the equipment, contact your facility's Technical or Systems Support. If there is a
problem with the equipment, they will contact the Zebra Global Customer Support Center at:
http://www.motorolasolutions.com/support.
For the latest version of this guide go to: http://www.motorolasolutions.com/support.
Waste Electrical and Electronic Equipment (WEEE)
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се връщ
ат на Zebra за рециклиране. За информация относно връщането на продукти, моля отидете на ад
рес: http://www.motorolasolutions.com/recycling/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skončení jejich životnosti vrátit společnosti
Zebra k recyklaci. Informace o způsobu vrácení produktu najdete na webové stránce:
http://www.motorolasolutions.com/recycling/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs
oplysningerne om returnering af produkter på: http://www.motorolasolutions.com/recycling/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum
Recycling an Zebra zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie
unter http://www.motorolasolutions.com/recycling/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρ
έφονται στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή ενός προ
ϊόντος, επισκεφθείτε τη διεύθυνση http://www.motorolasolutions.com/recycling/weee στο Διαδίκτυο.
English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling.
For information on how to return product, please go to:
http://www.motorolasolutions.com/recycling/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de
su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto,
visite: http://www.motorolasolutions.com/recycling/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil
Zebra'ile. Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi:
http://www.motorolasolutions.com/recycling/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi
Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa
http://www.motorolasolutions.com/recycling/weee.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie doivent être
retournés à Zebra pour recyclage. Pour de plus amples informations sur le retour de produits, consultez
: http://www.motorolasolutions.com/recycling/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni
újrahasznosítás céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el
a http://www.motorolasolutions.com/recycling/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono
essere restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle modalità di
restituzione, visitare il seguente sito Web: http://www.motorolasolutions.com/recycling/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į
kompaniją „Zebra". Daugiau informacijos, kaip grąžinti gaminį, rasite:
http://www.motorolasolutions.com/recycling/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra
otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet:
http://www.motorolasolutions.com/recycling/weee.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu
rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk
jogħġbok żur: http://www.motorolasolutions.com/recycling/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra
te worden teruggezonden voor recycling. Raadpleeg http://www.motorolasolutions.com/recycling/weee
voor meer informatie over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y zwróciæ do firmy
Zebra w celu ich utylizacji. Informacje na temat zwrotu produktów znajduj¹ siê na stronie internetowej
http://www.motorolasolutions.com/recycling/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para
reciclagem. Para obter informações sobre como devolver o produto, visite:
http://www.motorolasolutions.com/recycling/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie
returnate la Zebra pentru reciclare. Pentru informaţii despre returnarea produsului,
accesaţi: http://www.motorolasolutions.com/recycling/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti
vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na:
http://www.motorolasolutions.com/recycling/weee
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za
reciklažo. Za informacije o vračilu izdelka obiščite:http://www.motorolasolutions.com/recycling/weee.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för
återvinning. Information om hur du returnerar produkten finns på
http://www.motorolasolutions.com/recycling/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade
edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin:
http://www.motorolasolutions.com/recycle/weee.
TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
Zebra Technologies Corporation
Lincolnshire, IL U.S.A.
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The
Symbol logo is a registered trademark of Symbol Technologies, Inc., a Zebra
Technologies company.
© 2014 Symbol Technologies, Inc.
72-170536-02 Revision A December 2014
LI2208 LINEAR IMAGER
RECOMMENDED USAGE GUIDE - OPTIMUM BODY POSTURE
Beeper Sequence
Low/medium/high beep
Short high beep
4 long low beeps
High/low/high/low beep
High/low beep
Low/high beep
TROUBLESHOOTING
Check system power.
Ensure that correct host
interface cable is used.
Scan appropriate host
parameter bar codes
Ensure all cable connections
are secure
REGULATORY INFORMATION
This device is approved under Symbol Technologies, Inc., a Zebra Technologies company. This guide
applies to Model Number: LI2208. All Zebra devices are designed to be compliant with rules and
regulations in locations they are sold and will be labeled as required. Local language translations are
available at the following website: http://www.motorolasolutions.com/support.
Any changes or modifications to Zebra equipment, not expressly approved by
Zebra, could void the user's authority to operate the equipment.
Health and Safety Re commendation
Ergonomic Recommendations
Caution:
In order to avoid or minimize the potential risk of ergonomic injury
follow the recommendations below. Consult with your local Health & Safety
Manager to ensure that you are adhering to your company's safety programs
to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Class 1 LED Safety
COMPLIES WITH IEC 60825-1:2001 (Ed.1.2) & IEC 62471:2006 (Ed.1.0);EN 62471:2008
CLASS 1 LED PRODUCT
LED KLASSE 1
APPAREIL À LED DE CLASSE 1
LED Output
This device contains two LEDs for illumination and aiming.
Aim/Illumination:
Optical Output: 0.87mW
Pulse Duration: Continuous
Emitted Wavelength: 590-650nm
Viewing the LED output with certain optical instruments (for example, eye loupes,
magnifiers and microscopes) may pose an eye hazard.
Caution: Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous LED light exposure.
LED light is emitted from this aperture:
SCANNING
Aiming
0 1 2 3 4 5
Avoid Bending
AVOID BENDING
LED INDICATIONS
Hand-Held Scanning
Indication
Scanner is on and ready to scan, or no power to scanner
Bar code is successfully decoded
Transmission error
Hands-Free (Presentation) Scanning
No power to scanner
Scanner is ready to scan
Bar code is successfully decoded
Transmission error
Scanner not decoding bar code
Scanner not programmed for bar code type
Bar code unreadable
Distance between scanner and bar code incorrect
Scanned data incorrectly displayed on host
Host interface not configured properly
0 1 2 3 4 5
Avoid Reaching
AVOID REACHING
LED Indicator
Off
Green
Red
Off
Green
Off Momentarily
Red
Local Contact:
Ensure scanner is programmed to read
type of bar code being scanned.
Ensure bar code is not defaced; try scan-
ning test bar code of same bar code type.
Move scanner closer to, or further
from bar code.
Scan appropriate host parameter bar codes.
Radio Frequency Interference Requirements -FCC
Note: This equipment has been tested and found to comply with the
Tested to comply
limits for a Class B digital device, pursuant to Part 15 of the
with FCC Standards
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
FOR HOME OR OFFICE USE
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Marking and European Economic Area (EEA)
Statement of Compliance
Zebra hereby declares that this device is in compliance with all the applicable
Directives, 2004/108/EC and 2006/95/EC. A Declaration of Conformity may be obtained
from http://www.motorolasolutions.com/doc
Other Countries
Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
Korea Warning Statement for Class B ITE
Ukraine
Дане обладнання відповідає вимогам технічного регламенту №1057, № 2008 на обмеження щодо
використання деяких небезпечних речовин в електричних та електронних пристроях.
China RoHS
http://www..com/ds6878
This table was created to comply with China RoHS requirements.
有毒有害物质或元素
部件名称
六价铬
(Parts)
(Pb)
(Hg)
(Cd)
(Cr
金属部件
X
O
O
(Metal Parts)
电路模块
X
O
O
(Circuit Modules)
电缆及电缆组件
O
O
O
(Cables and Cable Assemblies)
塑料和聚合物部件
O
O
O
(Plastic and Polymeric Parts)
光学和光学组件
X
O
O
(Optics and Optical Components)
电池
O
O
O
(Batteries)
O:表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限
量要求以下。
X:表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规
定的限量要求。
对销售之日的所售产品,本表表示,公司供应链的电子信息产品可能包含这些物质。注意:在
所售产品中可能会也可能不会含有所有所列的部件。
B
50
多溴联苯
多溴二苯醚
6+
)
(PBB)
(PBDE)
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O

Advertisement

Table of Contents
loading

  Also See for Motorola LI2208
