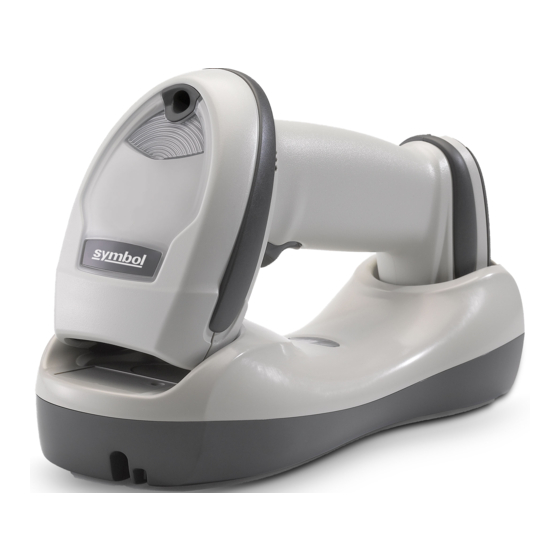

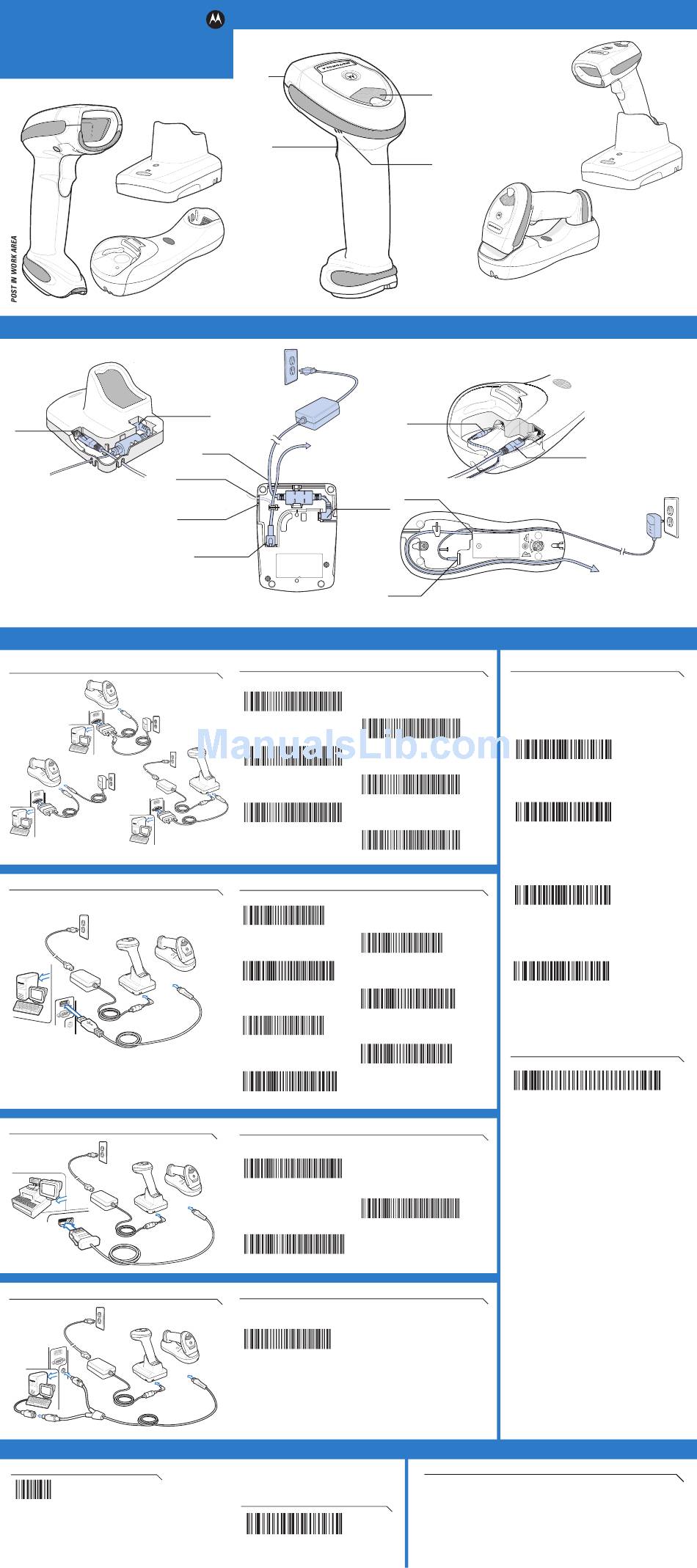

LI4278 LINEAR IMAGER
QUICK START GUIDE
See Product Reference Guide
http://www.motorola.com/li4278
for detailed information
STEP 1 - CRADLE CABLE CONNECTIONS
Host Port
STEP 2 - CONNECT HOST INTERFACE
NOTE: Cables may vary depending on configuration
RS-232
OR
USB
IBM 46XX
Keyboard Wedge
HELPFUL BAR CODES
SET DEFAULTS
RETURN TO FACTORY DEFAULTS
1
2
1
2
Scan Trigger
3
LED
4
Beeper
Power Port
Power
Alternate
Host Groove
Alternate
Power Groove
Host Port
Important: Charge the linear imager scanner for 24 hours before the first full day of use.
STEP 3 - SET UP INTERFACE
RS-232
Scan
ONE
of the bar codes below
STANDARD RS-232
ICL RS-232
NIXDORF RS-232 MODE A
USB
Scan
ONE
of the bar codes below
HID KEYBOARD EMULATION
OR
IBM TABLE TOP USB
SNAPI WITHOUT IMAGING
(For use with hands-free base only)
USB CDC Host
IBM 46XX
Scan
ONE
of the bar codes below
PORT 5B
OR
PORT 17
Keyboard Wedge
Scan bar code below
Power
supply
IBM PC/AT and IBM PC COMPATIBLE
optional
OR
BATTERY OFF
BATTERY OFF FOR LONG TERM STORAGE/SHIPPING
3
4
Power Port
Connect to
Appropriate Host
Host
Power Port
Power
(
Scan Host Bar Codes
NIXDORF RS-232 MODE B
FUJITSU RS-232
OPOS/JPOS
IBM HAND-HELD USB
USB OPOS HAND-HELD
SIMPLE COM PORT EMULATION
PORT 9B
123Scan2 is an easy-to-use , PC-based software tool that enables rapid
and easy customized setup via a bar code or USB cable. For more
information, visit: http://www.motorola.com/123Scan2.
Cradles
Refer to the LI4278 Product Reference Guide, or the cradle
Quick Reference Guides for detailed information about cradle setup.
When charging, use the cradle power supply for faster charge time.
Host Port
Connect to
Appropriate Host
)
STEP 4 - RADIO COMM HOST TYPES
Radio Communications Host Types
Scan a bar code below to choose how the scanner connects
to a remote device. Scan CRADLE HOST if connecting to the
CR0078 cradle. Refer to the Product Reference Guide
for detailed information.
CRADLE HOST
HID PROFILE (SLAVE)
SERIAL PORT PROFILE (SLAVE)
SERIAL PORT PROFILE (MASTER)
Unpairing/Disconnection
UNPAIR/DISCONNECT
2
123SCAN
Power
(if required)
