- Page 1 PBI2212, PBI3612, PBI3624, PBI4424 SCI200B English .....Page 02 0099001151-02...

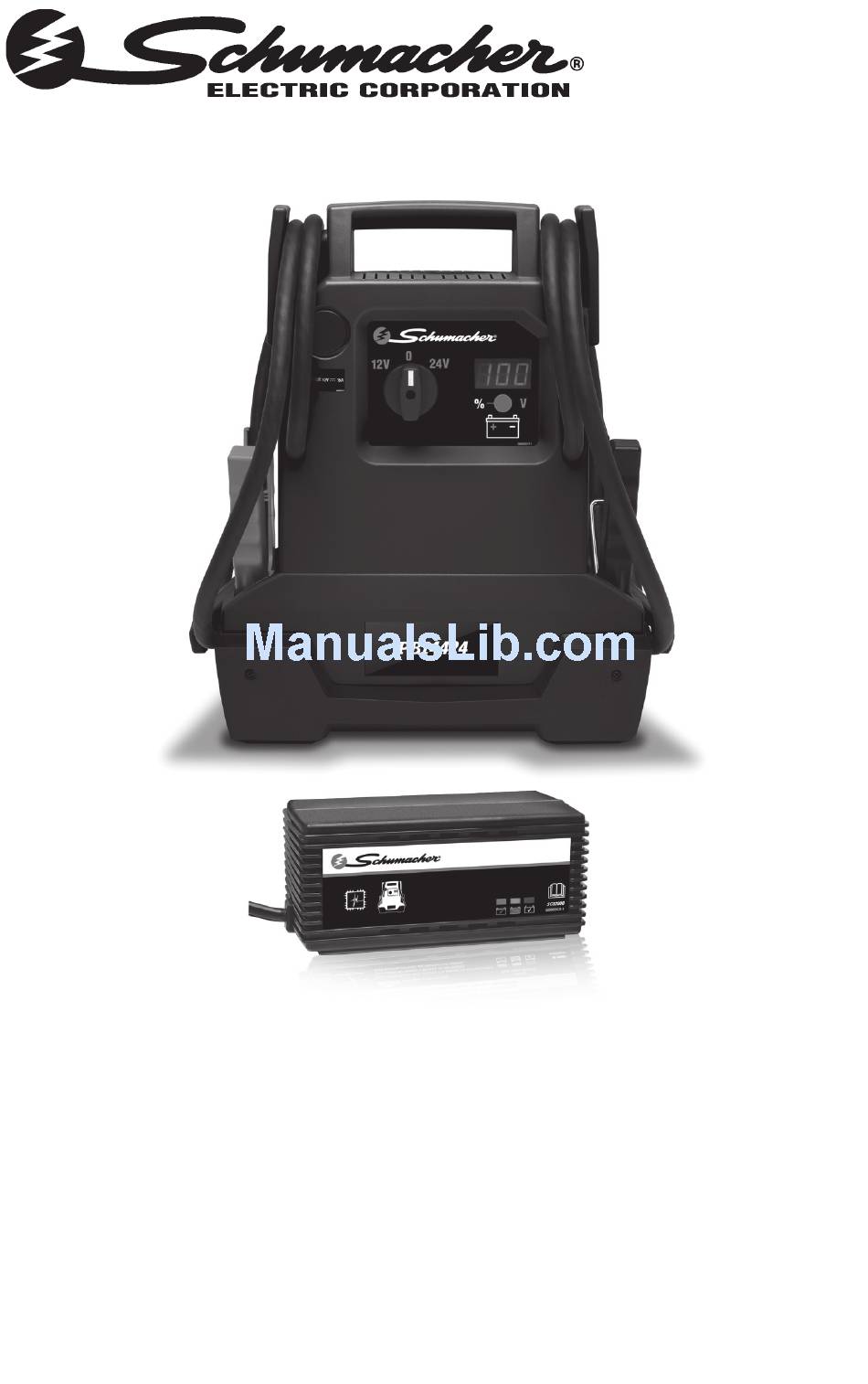

- Page 2 ENGLISH Models: PBI2212, PBI3612, PBI3624, PBI4424 Boosters with Model SCI200B Charger OWNERS MANUAL IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL. SAVE THESE INSTRUCTIONS – Charge the booster’s internal battery immediately after purchase, after every use and every 30 days. This manual will show you how to use your booster safely and effectively.
-
Page 3: Warning Risk Of Explosive Gases
IMPORTANT BOOSTER SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions. RISK OF ELECTRIC SHOCK OR FIRE. WARNING WARNING Read the entire manual before using this product. Failure to do so could result in serious injury or death. This booster is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or... - Page 4 PREPARING TO USE THE BOOSTER RISK OF CONTACT WITH BATTERY ACID. WARNING WARNING WARNING BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. Clean the battery terminals before using the booster. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth.
- Page 5 Models PBI4424, PBI3612 and PBI3624 – Fast blow, DC automotive type, rated 32 V, 500 A (Buss AMG-500). Model PBI2212 – Fast blow, DC automotive type, rated 32 V, 300 A (Buss AMG-300). WARNING 1. Allow the fuse to cool down completely (approximately 5 minutes).
- Page 6 6. Tighten the nuts and bolts to secure the fuse, and then replace the cover of the fuse holder. 7. The unit is now ready to use. MAINTENANCE INSTRUCTIONS FOR THE BOOSTER Unplug the charger from the booster before attempting any maintenance or cleaning. Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clamps, Ensure that all of the booster components are in place and in good working condition.
- Page 7 BOOSTER SPECIFICATIONS START CABLE LENGTH PEAK Model 1V/C GAUGE BATTERY PBI2212 12V/6 cells 50 in./1.27 m 1900 354.8 x 120 x 395 Hawker PBI3612 55 in./1.397 m 4400 12V/6 cells 375 x 209.8 x 395 17.3 Hawker PBI3624 55 in./1.397 m 24V 3800 375 x 209.8 x 395...
-
Page 8: Check Battery
Model SCI200B Charger CHARGER SAFETY AND OPERATING INSTRUCTIONS Read manual Caution, Do not For indoor Warning before using. risk of electric expose use only. shock. to rain. Contact the equipment supplier for details on how to properly dispose Class II Charger of this product within WEEE requirements. - Page 9 CHECK BATTERY Indicates the charger is in abort mode. If charging cannot be completed normally, charging will abort. When charging aborts, the aborted charge, unplug the charger from the AC outlet, wait a few moments and plug it back in. CHARGING (yellow) LED lit: Indicates the charger has detected a battery and is charging it.
- Page 10 CHARGER MAINTENANCE INSTRUCTIONS 15.1 Unplug the charger from the booster before attempting any maintenance or cleaning. 15.2 15.3 15.4 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent CHARGER MOVING AND STORAGE INSTRUCTIONS Store the charger in an upright position, inside, in a cool, dry place.
- Page 11 Manufacturer does not provide any warranty for any accessories used with this product that are not manufactured by Schumacher Electric Corporation and approved for use with this product. This Limited Warranty is void if the product is misused, subjected to is resold through an unauthorized retailer.
-
Page 12: Declaration Of Conformity
Schumacher Electric Corporation 801 East Business Center Drive Mount Prospect, Illinois, 60056, U.S.A. certify that the Booster Models PBI2212, PBI3612, PBI3624 and PBI4424 and Charger Model SCI200B comply with the following standards: Low Voltage Directive (LVD) 2006/95/EC, EN 60335-1:2002 + A1:2004 + A2:2006 + A11:2004 + A12:2006 + A13:2008... - Page 13 Wir, die Schumacher Electric Corporation 801 East Business Center Drive Mount Prospect, Illinois 60056, USA, erklären, dass die Boostermodelle PBI2212, PBI3612, PBI3624 und PBI4424 sowie das Ladegerät Modell SCI200B den folgenden Normen entsprechen: Niederspannungsrichtlinie (LVD) 2006/95/EG, EN 60335-1:2002 + A1:2004 + A2:2006 + A11:2004 + A12:2006 + A13:2008...
-
Page 14: Déclaration De Conformité
Président 29 novembre 2011 Déclare que les modèles d’équipements PBI2212, PBI3612, PBI3624, PBI4424 et SCI200B sont conformes à la Directive2002 / 95 / CE DU PARLEMENT EUROPÉEN ET DU CONSEIL du 27 Janvier 2003 (RoHS) sur la limitation de l’utilisation de certaines substances dangereuses dans les équipements électriques et électroniques, et Directive 2006 / 66 / CE DU...
