Summary of Contents for Roadstar CD-302MP/FM

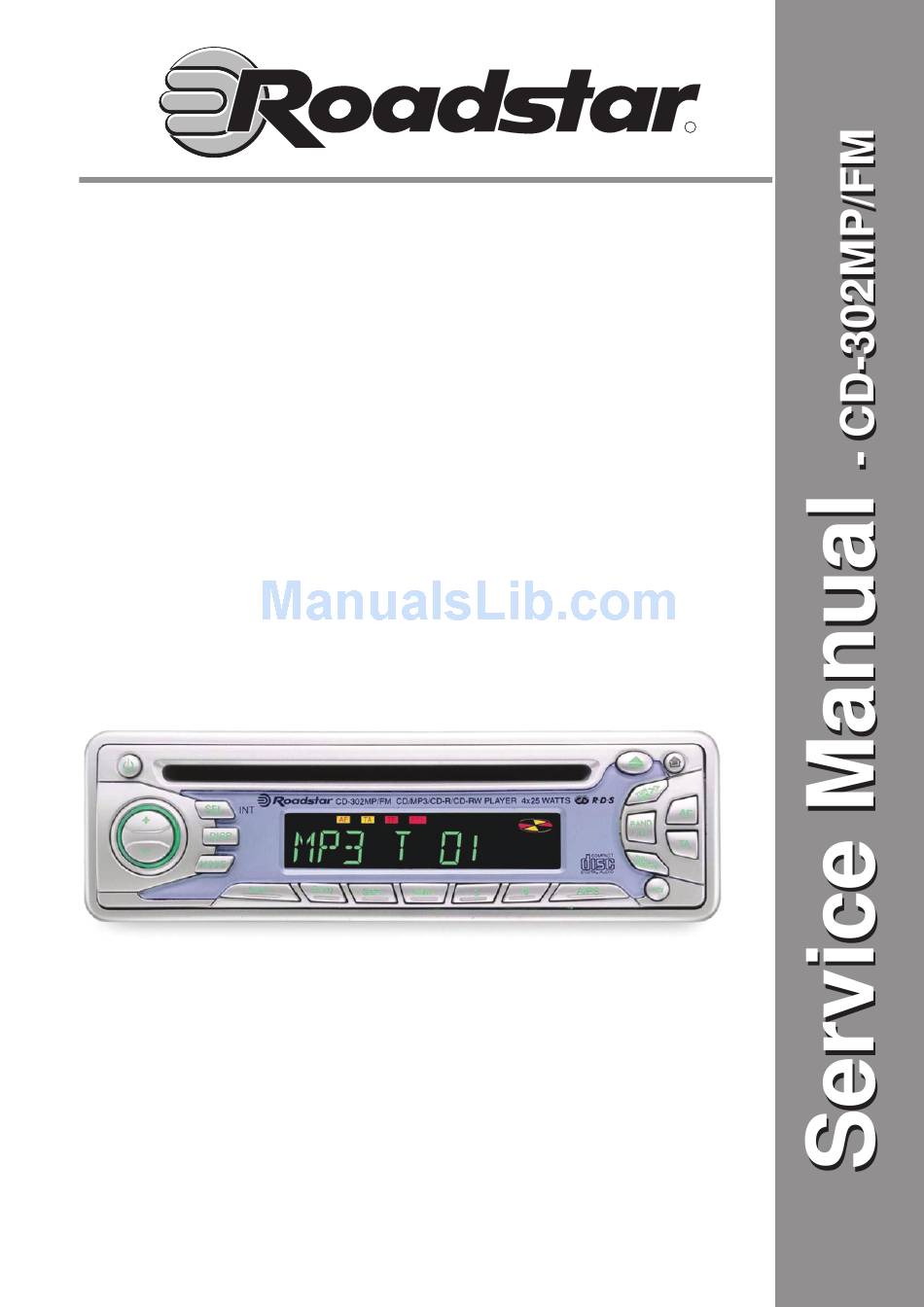

  • Page 1 CD-302MP/FM...
  • Page 2 ITEM CODE DESCRIPTION SYMBOL 001-0000S-B90 P.C.B FILTER BOX 001-3900S-P90 P.C.B MAIM BOARD 002-01140-A09 I.C LA1140 IC201 002-03370-A09 I.C LA3370 IC301 002-2313L-B00 I.C PT2313L 002-07900-H00 I.C DSC-7900 002-07381-J06 I.C TDA7381 IC401 002-07035-T00 I.C KIA7035 002-75823-H00 I.C LC75823 002-78L05-F00 I.C KIA78L05 003-0966Y-A02 TRANSISTOR 2SA966Y PNP TO-92 003-01368-C00 TRANSISTOR KTB1368 003-1267Y-A00 TRANSISTOR KTA1267Y 003-1271Y-A03 TRANSISTOR KTA1271Y...
  • Page 3 ITEM CODE DESCRIPTION SYMBOL 26 007-05046-7GY I.F.T 7x7mm K5046 GREY 008-93197-C02 LCD DISPLAY 93197 BMM1 (GREEN) 009-00730-A01 TUNER (AM) CET-730 009-0201V-A02 TUNER (FM) KCF-201V 010-A0222-000 CHOCK COIL 22mH 011-A010F-200 RES 1/2W ±5% 1 OHM R168 011-A100D-200 RES 1/4W ±5% 10 OHM R127 011-A100A-200 RES 1/16W ±5% 10 OHM...

  • Page 4: Filter Box

    ITEM CODE DESCRIPTION SYMBOL 011-A513A-200 RES 1/16W ±5% 51K OHM 011-A561A-200 RES 1/16W ±5% 560 OHM R45.49.46.142 011-A562A-200 RES 1/16W ±5% 5.6K OHM R22.156.157.100.35.36 011-A681A-200 RES 1/16W ±5% 680 OHM R147.143 011-A821A-200 RES 1/16W ±5% 820 OHM R67.62 012-C105F-300 ELEC CAP 1uF 50V 5x11mm C67.15.42.13.21.23.83.82 63 012-C106C-300 ELEC CAP...
  • Page 5 ITEM CODE DESCRIPTION SYMBOL 014-A473C-500 CER CAP ±10% 0.047uF 50V 014-A681C-500 CER CAP ±10% 680PF 50V 015-H0103-E00 SEMI-FIXED 10KB 015-H0203-E00 SEMI-FIXED 20KB VR2.4 015-H0503-E00 SEMI-FIXED 50KB 016-C0300-600 TRIMMER CAP 30PF 017-B0107-400 CER FILTER 10.7MJA CF1.2 022-C7000-000 FUSE 96 023-A0030-RD0 LED RED 3mm 029-B0000-000 ANTENNA JACK D.SCRWE 98 033-S1000-GY0 28# 1P SHIELD WIRE...
  • Page 6 ITEM CODE DESCRIPTION SYMBOL 117 011-A331A-200 RES 1/16W +-5% 330 OHM R2.12 118 011-A391A-200 RES 1/16W +-5% 390 OHM 119 011-A392A-200 RES 1/16W +-5% 3.9K OHM 120 011-A332A-200 RES 1/16W +-5% 3.3K OHM 121 011-A471A-200 RES 1/16W +-5% 470 OHM R3.13 122 011-A472A-200 RES 1/16W +-5% 4.7K OHM 123 011-A681A-200 RES 1/16W +-5% 680 OHM...
  • Page 7 ITEM CODE DESCRIPTION SYMBOL 002-09290-G01 I.C S5L9290 002-9259D-A01 I.C KA9259D 003-01504-B03 TRANSISTOR KTA1504S GR (SMD TYPE) 003-01576-S07 TRANSISTOR 2SA1576 SMD Q2.5.6.3.4 004-04148-000 DIODE IN4148 D3.4.5.1.2 10 004-SR23G-000 PHOTO DIODE SR-23G LED3.4 006-16934-000 CRYSTAL 16.9344MHz (2PIN) 011-S000A-200 RES CHIP ±5% 0805 0 OHM R112 R127.111.56.113.114.
  • Page 8 ITEM CODE DESCRIPTION SYMBOL 014-S103C-500 CER CAP CHIP ±10% 0805 0.01uF 50V C206.204.216.221.220.108 C123.113.112.114.53.203.234. 014-S104C-500 CER CAP CHIP ±10% 0805 0.1uF 50V 214.215.212.229.228.115.104. 014-S152C-500 CER CAP CHIP ±10% 0805 0.0015uF 50V C111.112 014-S222C-500 CER CAP CHIP ±10% 0805 0.0022uF 50V C101.107.213.226 014-S330C-500 CER CAP CHIP ±10% 0805 33PF 50V C117.118...
  • Page 9 ITEM CODE DESCRIPTION SYMBOL 209 218-3888L-E10 DECK BRACKET "L" EGI T1.0 210 218-3888R-E10 DECK BRACKET "R" EGI T1.0 211 222-1001S-E06 SLEEVE CASE EGI T1.0 212 222-3501B-H06 BOTTOM COVER EGI T0.6 EGI T1.0 213 222-3888L-E10 SIDE CHASSIS "L" 214 222-3888R-E10 SIDE CHASSIS "R"...
  • Page 10 ITEM CODE DESCRIPTION SYMBOL 238 235-10010-H12 SET EGI T1.2 EGI T1.0 (LINE OUT) 239 236-38501-H10 CORD CLAMER "B" 240 301-0C025-060 POLY OPEN 2.5"x6"XT0.04 241 301-0C070-105 POLY OPEN 7"x10.5"XT0.05 242 301-0C110-140 POLY OPEN 11"x14"XTo.04 243 303-0000A-A10 POLYFOAM 244 304-3908A-A10 GIFT 245 305-3908A-A10 INSTRUCTION MANUAL 246 306-39080-A06 CARTON 247 313-38880-A00 P.V.C CD GUIDE SHEET BLACK T1.0...
  • Page 11 ITEM CODE DESCRIPTION SYMBOL 268 431-39081-1NL MEMORY KNOB "1" ABS (NATURAL) 269 431-39082-1NL MEMORY KNOB "2" ABS (NATURAL) 270 431-39083-1NL MEMORY KNOB "3" ABS (NATURAL) 271 431-39084-1NL MEMORY KNOB "4" ABS (NATURAL) 272 431-39085-1NL MEMORY KNOB "5" ABS (NATURAL) 273 431-39086-1NL MEMORY KNOB "6"...
