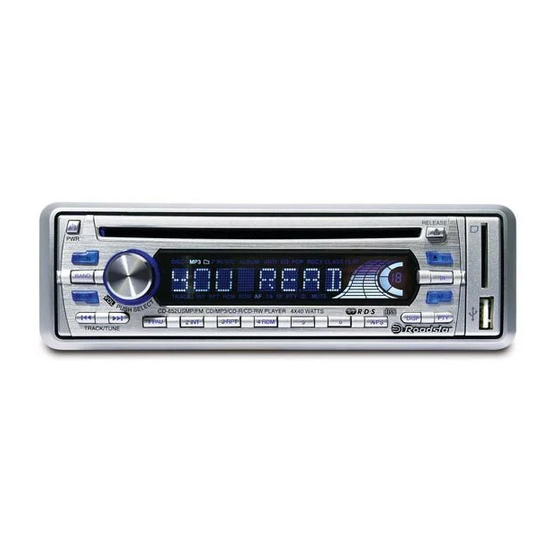

Car stereo compact disc cd/cd-r/cd-rw/ mp3 player with pll fm stereo radio radio data system with pty usb port and sd/mmc card input, detachable front panel system
Hide thumbs Also See for CD-652USMP/FM:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
R
AUTO-HIFI
Car Stereo Compact Disc CD/CD-R/CD-RW/
MP3 Player with PLL FM Stereo Radio
Radio Data System with PTY
USB Port and SD/MMC Card Input
Detachable Front Panel System
CD-652USMP/FM
e
13
02 2680

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-652USMP/FM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roadstar CD-652USMP/FM

Summary of Contents for Roadstar CD-652USMP/FM

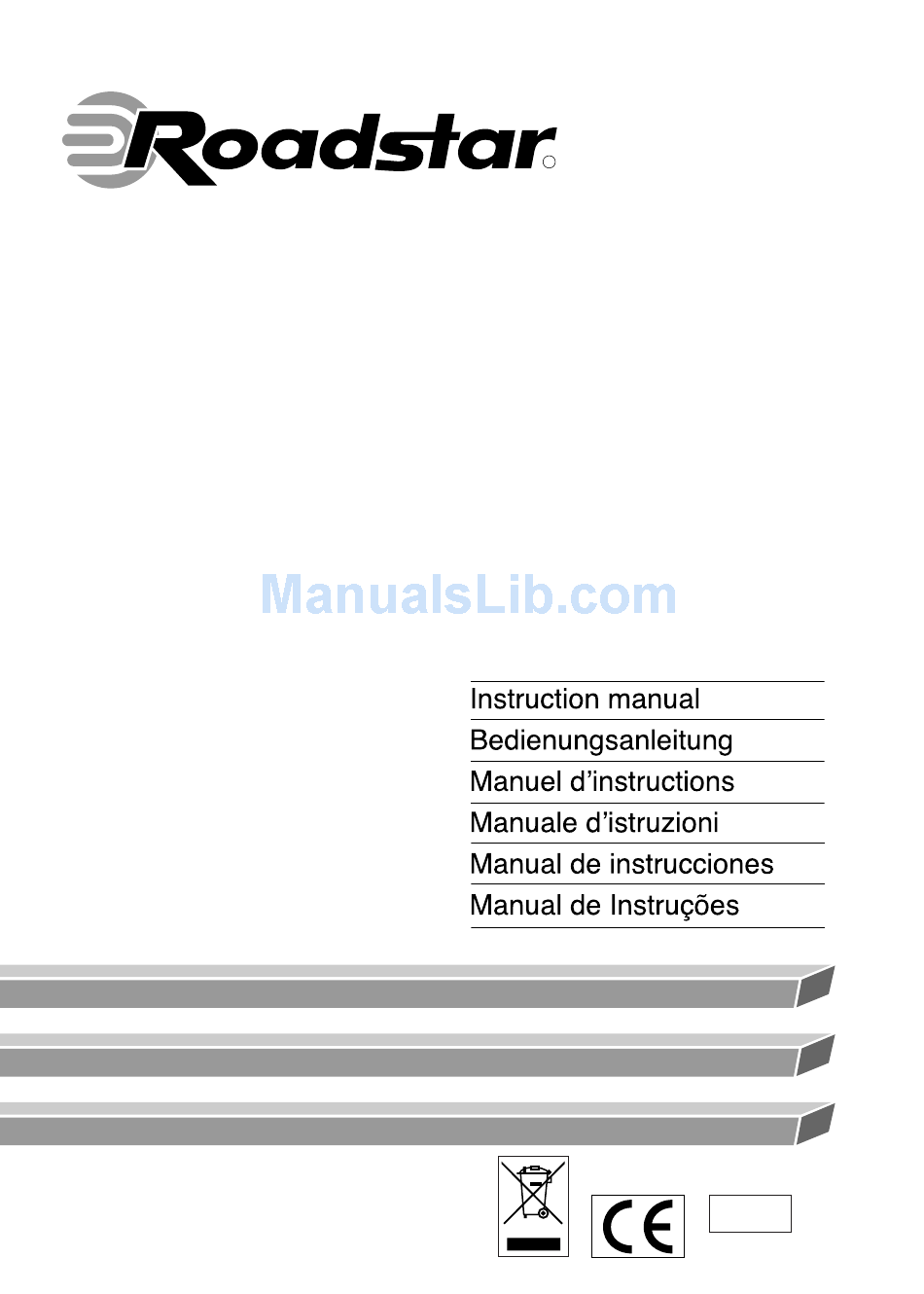

  • Page 1 AUTO-HIFI Car Stereo Compact Disc CD/CD-R/CD-RW/ MP3 Player with PLL FM Stereo Radio Radio Data System with PTY USB Port and SD/MMC Card Input Detachable Front Panel System CD-652USMP/FM 02 2680...
  • Page 2 CD-652USMP/FM RELEASE BAND MODE COMPACT DIGITAL AUDIO DISP 1 PAU 2 INT 3 RPT 4 RDM A/PS TRACK/TUNE (1-6) RESET...
  • Page 3 English WARNINGS The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product. The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit. To reduce the risk of electric shock, do not remove the cover.

  • Page 4: Table Of Contents

    English CD-652USMP/FM Car Stereo Compact Disc CD/CD-R/CD-RW/MP3 Player with PLL FM Stereo Radio Radio Data System with PTY USB Port and SD/MMC Card Input Detachable Front Panel System INSTRUCTION MANUAL Please read this instruction manual carefully and familiarize yourself with your new Radio CD before using it for the first time.
  • Page 5 English FEATURES The unit features a detachable front control panel, FM/FM stereo, CD/MP3 player the follow- ing features: • The best stations memory automatically memorizes the best (strongest) station in the or- der of their strength (AS). • Electronic Volume, Bass, Treble, Fader and Balance control. •...
  • Page 6 English Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. DETACHING THE FRONT PANEL Before detaching the front panel, be sure to press the PWR but- ton OFF first.

  • Page 7: Power On/Off

    English CONNECTOR B 1. REAR RIGHT SPEAKER (+) 2. REAR RIGHT SPEAKER (-) 3. FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+) 6. FRONT LEFT SPEAKER (-) 7. REAR LEFT SPEAKER (+) 8. REAR LEFT SPEAKER (-) Maintenance FUSE REPLACEMENT If the fuse blows, check the power connecton and replace the fuse.
  • Page 8 English - TA SEEK mode: When newly turned station does not receive TP information for 5 sec., the radio retunes to next station which has not the same station (PI) as the last station, but has the TP informa- tion. In TA seek mode, the current station can be changed to the completely different station because the unit searches TP station when the field strength of the current station is very weak, or the current station has no TP signal.
  • Page 9 English 2 sec. TA SEEK MASK DPI RETUNE LOUD ESP12 / ESP 45 Note: 12 sec./45 sec. for CD, 120 sec. for MP3. MULTI CD SECTION MODE (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

  • Page 10: Preset Stations

    English LOCAL/DX (2) When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function. 2 sec. TA SEEK MASK DPI RETUNE LOUD MULTI BEEP STEREO LOCAL LOCAL/DX SEEK “Local” position in areas with strong signals to let radio stop at only strong stations during manual tuning (LOC appears).

  • Page 11: Ta' Function (Traffic Announcement)

    English 6. 'TA' function (TRAFFIC ANNOUNCEMENT) When pressed short, it is activated as TA mode on or off When TA mode is on and traffic announcement is transmitted – When the unit is it CD/MP3 mode, it will switch to radiomode temporarily. –...

  • Page 12: Scan' Automatic Tuning Control (Scn)

    English 13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN) This key is operated as RADIO SCAN The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode. 14. LCD DISPLAY The Liquid Crystal Display will display the current state of the unit. CD CONTROL LOCATION OF PARTS 11.

  • Page 13: Reset Button

    English HOW TO SELECT MP3 FILES 1. Searching Track: • Press “A/PS”, then searching track is activated. • Press “SEL”, then the first digit is blinking. • With “VOL / VOL ” knob, select first digit you want. • Press “SEL”, then the first digit is fixed and second digit is blinking. •...
  • Page 14 English SPECIFICATIONS CD/MP3 PLAYER SECTION Signal to Noise Ratio > 60dB Channel Separation > 50 dB (1kHz) Frequency Response 20Hz - 20 kHz TUNER 3 µV Sensitivity Stereo separation 35 dB Signal to noise radio 55 dB Frequency range 87.5-108 MHz Channel step 50 kHz Intermediate frequency...
