MINI‐CONSOLE
EVAPORATIVE
HUMIDIFIER
MODEL D46720
USE AND CARE GUIDE
  
Auto Humidistat
  
Four Speed Fan
  
Dual water bottles






TO ORDER PARTS AND ACCESSORIES CALL  1 . 8 0 0 . 5 4 7 . 3 8 8 8
1B72897
READ AND SAVE THESE INSTRUCTIONS


COMFORT IS IN THE AIR
11/2014
Français ............9
Español ........ ..17

PRINTED IN CHINA
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D46720 and is the answer not in the manual?

Questions and answers

Marianne Zarling
January 19, 2025

What does it mean when the display blinks?

1 comments:
Mr. Anderson
May 14, 2025

When the display blinks “--” on the Aircare D46720, it means the humidity level is over 90%. Lower the fan speed and output level.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Aircare D46720

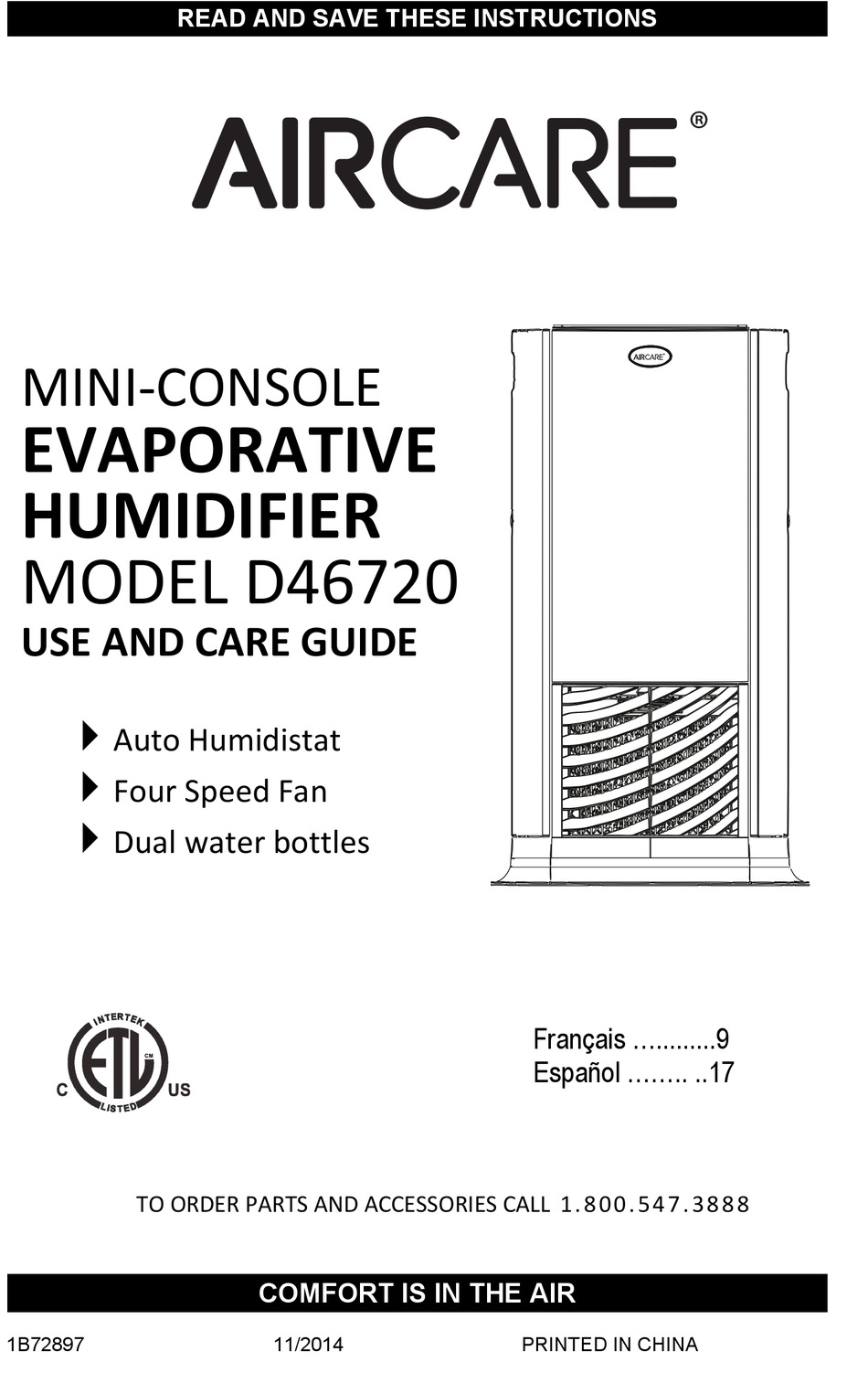

  • Page 1 READ AND SAVE THESE INSTRUCTIONS ® ® MINI‐CONSOLE  EVAPORATIVE  HUMIDIFIER  MODEL D46720  USE AND CARE GUIDE     Auto Humidistat        Four Speed Fan    Dual water bottles        Français …..9   Español ……..17     TO ORDER PARTS AND ACCESSORIES CALL  1 . 8 0 0 . 5 4 7 . 3 8 8 8  ...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS General Safety Instructions READ BEFORE USING YOUR HUMIDIFIER DANGER: means if the safety information is not followed someone will be seriously injured or killed. WARNING: means if the safety information is not followed someone could be seriously injured or killed. CAUTION: means if the safety information is not followed someone may be injured.
  • Page 3: How Your Humidifier Works

    1-800-547-3888. This humidifier uses two ® ® wicks # 1040. Only the AIRCARE or Essick Air evaporative wick guarantees the certified output of your humidifier. Use of other brands of wicks voids the certification of output and may void your warranty.
  • Page 4: Water Fill

    CAUTION: Do not spill water on fan motor. Electrical components must be kept dry. ® ® NOTE: We recommend using AIRCARE or Essick Air Bacteriostat Treatment when you refill the water reservoir to eliminate bacterial growth. Add bacteriostat according to the instructions on the bottle.
  • Page 5: Operation

    For initial operation, plug the unit in (the display will show - -). Press the speed button and hold for 5 seconds to turn the unit on or off. FAN SPEED The D46720 has a four speed digital control panel. HUMIDITY SPEED FAN SPEED...
  • Page 6: Control Lock Feature

    ® ® We also recommend using AIRCARE or Essick Air Bacteriostat Treatment each time you refill your humidifier to eliminate bacterial growth. Add bacteriostat according to the instructions on the bottle.
  • Page 7: Removing Scale

    REMOVING SCALE 4) Empty the water from the base and bottles. Fill bottles and base ½ full with water and add 4 oz. (½ cup) of white vinegar. Let stand 20 minutes, then empty solution. 5) Dampen a soft cloth with white vinegar and wipe out the base to remove scale. Rinse the bottles and base thoroughly with fresh water to remove scale and cleaning solution before disinfecting.
  • Page 8 HUMIDIFIER TWO YEAR LIMITED WARRANTY POLICY SALES RECEIPT REQUIRED AS PROOF OF PURCHASE FOR ALL WARRANTY CLAIMS. This warranty is extended only to the original purchaser of this humidifier when the unit is installed and used under normal conditions against defects in workmanship and materials as follows: ...
  • Page 9: Mini-Console

    LISEZ ET CONSERVEZ CES INSTRUCTIONS ®     ® MINI‐CONSOLE  HUMIDIFICATEUR  À EVAPORATION   MODÈLE D46720  MANUEL D'UTILISATION   ET D'ENTRETIEN  Humidostat automatique  Ventilateur à quatre vitesses   Deux récipients amovible         Anglais …...1 Español ……..17     POUR COMMANDER DES PIÈCES ET DES ACCESSOIRES  APPELEZ LE 1.800.547.3888  LE CONFORT EST DANS L'AIR...
  • Page 10: Mises En Garde Importantes

    MISES EN GARDE IMPORTANTES Consignes générales de sécurité À LIRE AVANT D'UTILISER VOTRE HUMIDIFICATEUR DANGER : signifie que si les consignes de sécurité ne sont pas respectées, quelqu'un sera gravement blessé ou tué. AVERTISSEMENT : signifie que si les consignes de sécurité ne sont pas respectées, quelqu'un risque d'être gravement blessé...
  • Page 11: Fonctionnement De L'humidificateur

    N'utilisez que des produits chimiques et filtres à mèche AIRCARE ou Essick Air remplacement. Pour commander des pièces, filtres à mèche et produits chimiques, appelez le 1-800-547-3888. Le humidificateur D46720 utilise des filtres à mèche nº 1040. Seuls les filtres ® ®...
  • Page 12 REMARQUES SUR L'EMPLACEMENT Afin de tirer le meilleur parti de votre humidificateur, il est important de placer l'appareil à un endroit où le plus d'humidité est nécessaire ou là où l'air humide circulera dans toute la maison comme à proximité d'un retour d'air froid. Si l'appareil est placé...
  • Page 13 Remplissez la bouteille à nouveau lorsque l'indicateur de remplissage s'allume. AVERTISSEMENT: Ne pas faire gicler d’eau sur le moteur. Les composants électriques doivent rester secs. ® REMARQUE : Nous recommandons l'utilisation d'AIRCARE ou du traitement ® bactériostatique d'Essick Air à chaque remplissage du réservoir d'eau afin d'éliminer la croissance bactérienne.
  • Page 14: Contrôle De L'humidité

    AFFICHAGE NUMÉRIQUE PANNEAU DE COMMANDE POUR ACATIVER/DÉSCATIVER Pour la première utilisation, brancher l’unité (l’écran affichera _ _). Pour arreter l’unité, appuyer sur VITESSE pendant cinq APPUYEZ ET secondes. MAINTENEZ POUR APPUYEZ SUR POUR ALLUMER L'APPAREIL. Les vitesses de ventilation vont de rapide à AUGMENTER APPUYEZ POUR SPEED...
  • Page 15: Nettoyage Et Entretien

    REMPLACEMENT DU MÈCHE MISE EN GARDE : Avant de remplacer le mèche, assurez-vous que l'appareil est éteint et débranché. REMARQUE : Cet appareil utilise le modèle des filtres à mèches 1040. Remplacez les filtres à mèches au début de chaque saison, et plus souvent dans les régions où...
  • Page 16 GARANTIE LIMITÉE À DEUX ANS FACTURE REQUISE COMME PREUVE D'ACHAT POUR TOUTE RÉCLAMATION VISANT À FAIRE VALOIR LA GARANTIE. Cette garantie est accordée uniquement à l'acheteur original du présent humidificateur lorsque l'appareil est installé et utilisé dans des conditions normales, contre les défauts de matériaux et de fabrication comme suit: ...
  • Page 17 LEA Y GUARDE ESTAS INSTRUCCIONES     ®     MINI‐CONSOLA  HUMIDIFICADOR POR  EVAPORACIÓN  ® MODELO  D46720  GUÍA DE USO Y   CUIDADO   Humidistato automático    4 velocidades del ventilador  Botellas de agua dobles        Inglés ….....1 Francés ………...9     PARA ADQUIRIR PIEZAS Y ACCESORIOS LLAME AL 1.800.547.3888    LA COMODIDAD ESTÁ EN EL AIRE...
  • Page 18: Medidas De Seguridad Importantes

    MEDIDAS DE SEGURIDAD IMPORTANTES Instrucciones generales de seguridad LÉALAS ANTES DE USAR SU HUMIDIFICADOR PELIGRO: significa que si no se respeta la información de seguridad, alguien puede resultar seriamente herido o muerto. PRECAUCIÓN: significa que si no se respeta la información de seguridad, alguien podría resultar seriamente herido o muerto.
  • Page 19 . Para solicitar piezas, mechas y químicos llame al 1-800-547-3888. Lo humidificador uso ® ® mechas Nº 1040. Sólo las mechas de evaporación AIRCARE o /Essick Air garantiza el rendimiento certificado de su humidificador. El uso de mechas de otras marcas anulala certificación de rendimiento y puede anular su garantía.
  • Page 20: Montaje

    Debido a que el humidificador emite aire frío y húmedo, se recomienda orientar la dirección del aire lejos del termostato y de las rejillas de aire caliente. Coloque el humidificador cerca de una pared interna en un lugar nivelado a 10 centímetros de distancia, como mínimo, de la pared o de las cortinas.
  • Page 21: Operación

    Con la libre circulación de aire en la unidad, se obtendrá el mejor rendimiento y funcionamiento. NOTA: La unidad D46720 posee un humidistato automático situado en el cable, que mide la humedad relativa de la habitación. El humidistato encenderá el humidificador cuando la humedad relativa en el hogar sea inferior al ajuste del humidistato y apagará...
  • Page 22 El rango del 25 al 65 % y se ajusta en incrementos del 5 %. Un punto de ajuste del 65 % hace que el humidificador funcione de forma continua, independientemente de la lectura del ambiente. En 65% el humidificador funcionará constantemente hasta que se quede sin agua. NOTA: Se recomienda disminuir la velocidad cuando exista una condensación excessiva.
  • Page 23: Desinfección De La Unidad

    CUDADO Y MANTENIMIENTO Limpiar su humidificador regularmente ayuda a eliminar olores y el crecimiento de bacterias y hongos. El blanqueador doméstico común es un buen desinfectante y se puede usar para repasar la base del humidificador y la botella después de limpiarlos. Recomendamos limpiar su humidificador por lo menos una vez por semana para mantenerlo con las condiciones ambientales ideales.
  • Page 24 POLÍTICA DE GARANTÍA LIMITADA DE DOS AÑOS PARA CUALQUIER RECLAMO RELACIONADO CON LA GARANTÍA ES NECESARIO PRESENTAR EL RECIBO COMO PRUEBA DE COMPRA Esta garantía se extiende solo al comprador original de este humidificador, siempre y cuando la unidad sea instalada y utilizada en condiciones normales, contra defectos de fabricación y materiales como se detalla a continuación: ...
