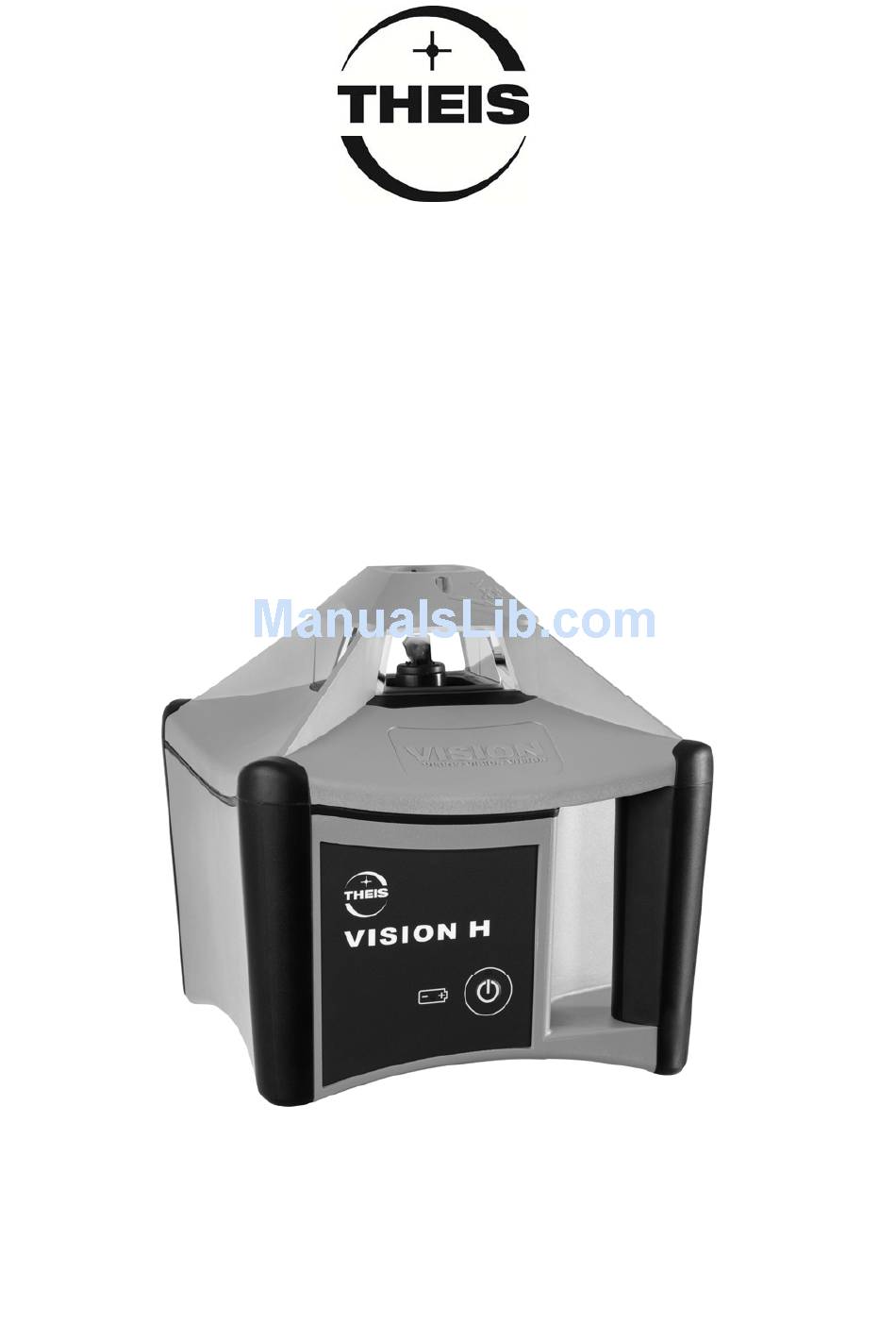

  • Page 1 VISION H Instruction manual...

  • Page 2: Table Of Contents

    Contents Introduction.………………………………………………. Keyboard / Display…………………....... 1. Horizontal Operation ……………………….………. 2. Tilt Function............3. Power Supply of Laser ……………………….…..4. Detector.…………..……..…………..………..…... TE 6…………………………........TE 7................ 5. Calibration Check ....…………………….….. 6. Delivery Contents…………………………………..7. Special Indications and Troubleshooting...……….. 8. Warranty.……………………………………………... 9. Technical Data…...…………………………….….… 10.

  • Page 3: Introduction

    Introduction VISION H ... for the construction professional. The rotation laser THEIS VISION H sets new standards in the area of fully automated professional lasers. It is the result of many years of experience and innovative technol- ogy. The high-quality construction laser is distinguished by its rugged- ness and high precision –...

  • Page 4: Keyboard /Display

    Keyboard /Display Laser exit rotation Battery compartment Product- information Charging socket Via QR-Code on reverse, e.g. On/Off Battery Instruction LED Levelling/ Display Disturbance manual 1. Horizontal Operation Align the tripod and screw the VISION tight using the tripod screw. Use the On/Off switch to switch on the device.

  • Page 5: Power Supply Of Laser

    You can work at least 1 hour. The instrument will switch off. Charge the battery at room temperature using only the THEIS standard mains unit connected to the charger socket below the laser. Charging at temperatures below +5° C can lead to defects in the battery.

  • Page 6: Detector

    4. Detector Switch on the detector by pressing the On/Off button and selecting the desired function: Fine or coarse setting (basic setting of TE 6/7 is coarse) and audible signal. The selected function is shown on the LCD display. Apart from this, the display shows you during measurement about the direction in which you must move the detector (by means of arrows).
  • Page 7 TE 6 Display Fine Coarse Arrow for direction of movement Centre bar Arrow for direction of movement Battery display Display of audible signal Sensor window LCD display (on reverse too) Centre notch On/Off button Fine/Coarse button Button or issuing of audible signal Battery compartment (on reverse)
  • Page 8 TE 7 Display Coarse Fine Arrow for direction of movement (Near centre bar) Centre bar (Near centre bar) Arrow for direction of movement Display of audible signal Battery display (3 stages) Issuing ofaudible Sensor window signal (on reverse) Illuminated LCD – Display (on reverse too) LED for direction of movement...

  • Page 9: Calibration Check

    The warranty period is 36 months (apart from the rechargeable battery, which is 1 year) from the date of sale (date of invoice). You must return the device or its affected components for repair or replacement to THEIS immediately after you establish the defect.

  • Page 10: Technical Data

    Furthermore, any and all claims for damages will be void in the case of any technical intervention by third parties, i.e. not by THEIS. 9. Technische Daten Laser...

  • Page 11: Supplier Declaration/Safety Information

    There are no parts to maintain or adjust inside the device. Servicing may only be carried out by authorized persons. Safety regulations for THEIS Class 3R HIGH-POWER LASER DEVICES Users must observe BGVB2 (Accident Prevention Regulations for Laser Radiation in Germany).

  • Page 12: Disposal

    EU countries only: In accordance with Directive 2006/66EC, non-serviceable THEIS laser devices or spent rechargeable batteries must be recycled or can be returned directly to: THEIS FEINWERKTECHNIK GMBH...

  • Page 13: Laser Warning Sign

    Signal de danger « Laser » pour VISION Laserwarnschild für VISION High Power Laser warning label for VISION High Power Signal de danger « Laser » pour VISION High Power Änderungen vorbehalten Subject to changes Sous réserves de modifications THEIS FEINWERKTECHNIK GMBH 35236 Breidenbach-Wolzhausen·Germany...
