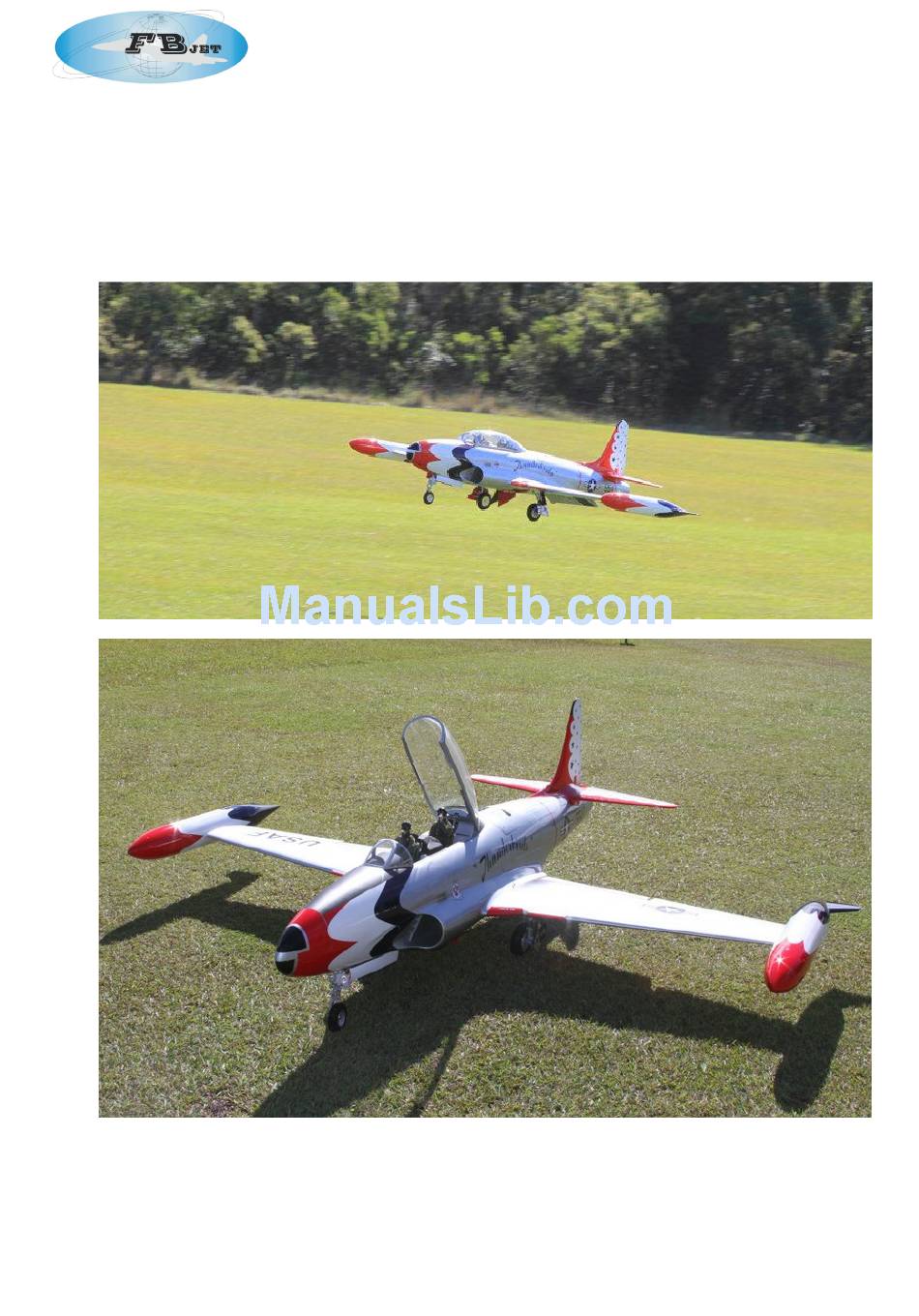

- Page 1 FEI BAO/FB Jets Large T33 FB Jets/ Feibao T33 Construction Manual Written by Tyson Dodd in Collaboration with Fei Bao Jets...
-
Page 2: Disclaimer
FEI BAO/FB Jets Large T33 DISCLAIMER THIS IS NOT A TOY. This is a high-performance miniature aircraft, capable of high speeds and damage to life, limb, and property. The manufacturer and its distributors cannot control how you assemble this model, what equipment you use to fit it out, or how you fly it, and can assume no liability whatsoever for any damages that may occur when you fly your aircraft. -
Page 3: Table Of Contents
FEI BAO/FB Jets Large T33 Table of Contents DISCLAIMER................................ 2 Introduction ............................... 4 Adhesives ................................4 Construction ............................... 5 Preliminary steps ............................5 Step 1: Check Forward Fuselage ........................6 Step 2: Prepping the Fuel System ........................6 Step 3: Tank Installation ..........................7 Step 4: Nose gear ............................ -
Page 4: Introduction
FB Jets. One cartridge should be plenty to assemble your Large FB Jets T33, however depending on how you prefer your setup; it is a good idea to have spare available. -
Page 5: Construction
Servo extensions (length may vary, depending on receiver placement) This Model is one of • the largest T33’s on the market. You will need a number of quality extension leads for your servos given the length and wings span of the model. -
Page 6: Step 1: Check Forward Fuselage
FEI BAO/FB Jets Large T33 Step 1: Check Forward Fuselage Remove the fuel tanks from the fuselage. • Also remove the forward component boards. Now would be a good time to put a coat of • paint on these parts if you would like to protect the wood surfaces. -
Page 7: Step 3: Tank Installation
Step 4: Nose gear To ensure a smooth operation nose steering and retraction function on your T33 nose wheel, it is ideal to pull the front nose retract from the airframe to work on it. In doing this your can check the retraction function of the nose wheel assembly with ease and add silicon stray if needed for prolonged smooth operation. -
Page 8: Step 5: Nose Doors
• however, as you may want to remove the tanks in the future. When the glue is dry, run air system lines to the tanks. In our T33, all air and fuel fill lines are • run to the front hatch of the airframe together with the fuelling points etc for easy of service. -
Page 9: Step 6: Vertical Fin And Rudder
In most kits, the hinges are preinstalled in the control surfaces, but must be glued into the • flight surface. This however is not true for the rudder and fin and elevators as FB Jets has utilised the screw pin method. The servos for the rudder and elevator fit nicely into both the fin and the tailplane making it easy for you to install the servo arms and pushrods together with the control horns. - Page 10 FEI BAO/FB Jets Large T33 Photo 3 – Rudder Servo and push rod. Run the servo wire out of the bottom of the vertical stab. • Trial fit the phenolic control arm in the slot routed in the rudder at the factory. You may •...
-
Page 11: Step 7: Horizontal Stabilizers
FEI BAO/FB Jets Large T33 Step 7: Horizontal Stabilizers The horizontal stabs build up in a similar fashion to the vertical stab in terms of the servo • installation. Install your servos in the space provided and modify slightly as required if your selected servo does not fit. -
Page 12: Step 12: Main Landing Gear And Doors
FEI BAO/FB Jets Large T33 Photo 5 – mounting thrust tube, bypass and engine. Adjust the location of your engine to obtain the clearance specified by the manufacturer • between the exhaust cone and the pipe mouth. It is likely it will extend into the intake. -
Page 13: Step 13: Aileron And Flap Servos
FEI BAO/FB Jets Large T33 Wire tie the brake line to the main strut and check operation of the gear once more to • make sure brake line has adequate length and clearance. Photo 6: Main gear Step 13: Aileron and Flap Servos Remove the aileron servo covers. - Page 14 FEI BAO/FB Jets Large T33 Rough up the mounting surface of the control horn, tape around the slot and glue the horn • into each control surface with Aeropoxy or Hysol. Set the wings aside for the glue to cure. Double check to make sure there are no •...
-
Page 15: Step 15: Cockpit
Try to conduct test flights under ideal weather conditions, at a flying facility that offers • plenty of “outs” in case of problems. The T33 will enjoy any wind but a head wind on take off and landing will make for very slow controlled landings and smooth short take offs. We deactivated the speed brakes for a first flight and actually found that this model by FB jets slows up superbly even without speed brakes. -
Page 16: Equipment Installation Photos
FEI BAO/FB Jets Large T33 Equipment Installation Photos Equipment, including fuelling tubes, switches, air fill, air gauges and remote ECU board were • all installed in on the component boards to have as much weight forward as possible. Also, the wiring for the ECU and for the servos was run down opposite sides of the fuselage to avoid interference. - Page 17 FEI BAO/FB Jets Large T33...
- Page 18 FEI BAO/FB Jets Large T33...
- Page 19 FEI BAO/FB Jets Large T33...
