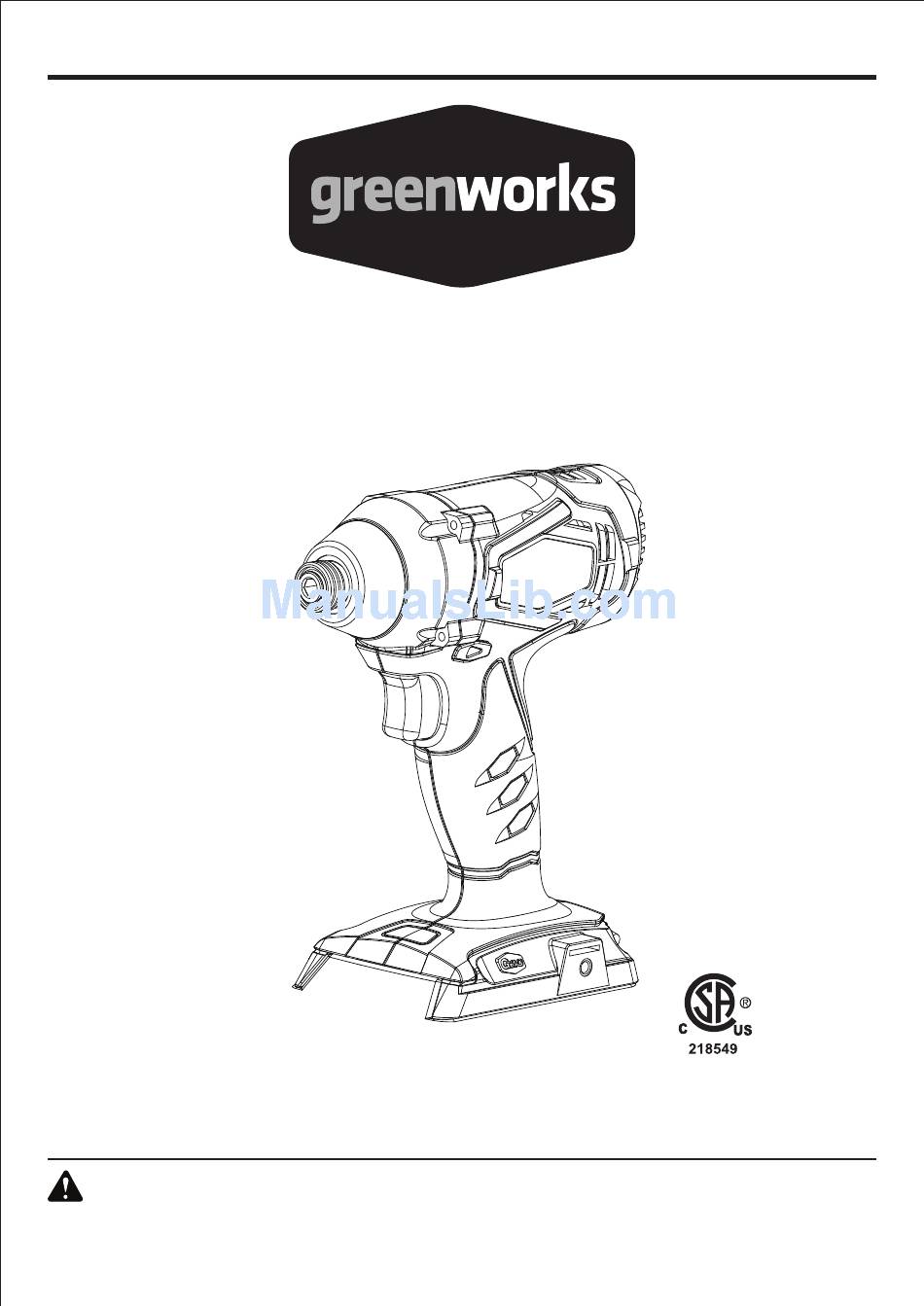

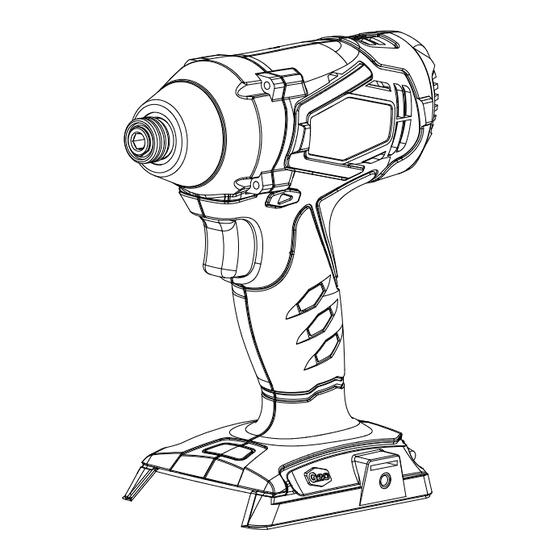

- Page 1 24V Lithium-ion 1/4” DRIVER 37032a BATTERIES AND CHARGERS SOLD SEPARATELY OWNER’S MANUAL TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tools.
-
Page 2: Table Of Contents
4,000 / min. (IPM) Torque ....................... 2,500 in. lbs (282 N.m) Unit weight with battery ...................... 3.42 lb (1.5 kg) * For use with 24V 2Ah Greenworks battery only. Model # 29842 * For use with 24V Greenworks charger only, Model # 29862... -
Page 3: Safety Information
SAFETY INFORMATION W A R N I N G Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric ■ Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 SAFETY INFORMATION ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ■...
-
Page 5: Safety Information
SAFETY INFORMATION ■ contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ■ s ’ . y l s t i c i l l l e serious injury. -
Page 6: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will result DANGER: in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could result in WARNING: death or serious injury. -
Page 7: Know Your Drill-Driver
KNOW YOUR DRILL-DRIVER The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. -
Page 8: Assembly
W A R N I N G Do not attempt to modify this product or create acces-sories not recommended for use with this product. Any such personal injury. PACKING LIST ■ 1 24V Impact Driver P/N:37032a ■ 1 bit ■ 1 Belt Clip-driver... -
Page 9: Operation
BATTERY PROTECTION FEATURES Greenworks lithium-ion batteries are designed with features that protect the lithium-ion cells and maximize battery life. If the tool stops during use, release the trigger to reset and resume operation. If the tool still does not work, the battery needs to be recharged. - Page 10 OPERATION To remove: ■ Depress the latch on the battery pack. ■ Remove the battery pack from the drill. W A R N I N G Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use.
-
Page 11: Operation
OPERATION The coupler has been designed to accept 1/4 in. hex bits. To install: ■ Lock switch trigger on the tool by placing the direction of rotation selector in center position. ■ Slide the coupler forward and hold in position. ■... -
Page 12: Maintenance
MAINTENANCE W A R N I N G When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage. W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. -
Page 13: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 14: Exploded View
EXPLODED VIEW... -
Page 15: Parts List
PARTS LIST ITE M NO PART NO. DESCRIPTION 33201790 Bit Sleeve - Driver 31100796 Gear Box - Driver 34102796 Motor Board - Driver 36100790 Motor - Driver 34100796 Right Housing - Driver 34101796 Left Housing - Driver 34113784 Forward / Reverse Shifter - Driver 36300784 Speed Control Switch - Driver 36200794... - Page 16 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (07-05-13) Printed in China on 100% Recycled Paper...
