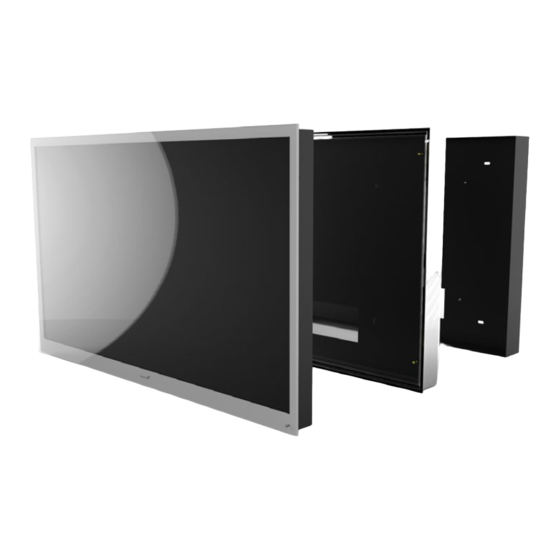

- Page 1 Lifestyle design Videotree User & Installation Guide 2015...
-
Page 2: Table Of Contents
Your warranty becomes void if problems occur due to faulty installation or poor sealing. Warranty Registration To register your product, visit www.videotree.com/registeryourproduct. Registering your product will activate your warranty to enable Videotree to provide you support, should this be required. Videotree... -
Page 3: Safety Precautions
Do not expose to direct sunlight* Video IN • Do not use any PSU other than Component In the one provided by Videotree. • Avoid exposing the TV to direct sunlight. This can cause damage • Ensure there is always easy ac- to the screen cess to the PSU mains supply. -
Page 4: Whats In The Box
Master Remote 2x AAA Batteries Waterproof Remote (Master Remote) Model Screen Size (Inches) Backbox Cutout Dimensions (Height Width Depth in mm) VTL19 451 - 280 - 51 VTL27 634 - 384 - 51 Videotree... - Page 5 Lifestyle design 19” Dimensions 27” Dimensions Lifestyle Screen Installation 633.0 51.0 633.0 639.0 Videotree...
- Page 6 (this may the wall. the edge of the frame. take 2 people) then push TV into frame make sure it is level with the frame. Videotree...
-
Page 7: In Wall Flush
Lifestyle design Lifestyle Screen Installation In Wall Flush Videotree... -
Page 8: Screen Removal
2. Pull the television out of the backbox, allowing for rear connections. Carefully remove the television from the backbox. Channel Up 3. Remove the connections from the back of the television and place in a safe area. Source Select Subtitle Toggle Channel Down Edge Illumination Control Videotree... -
Page 9: Tv Operation
4. To move a channel, select the channel scrolling up or down with the arrow keys. Press the Yellow button to select the channel and using the numerical keys enter the number you would like the channel to move to. Videotree... -
Page 10: Rs232 Commands
A0 F0 55 FF 23 DD HDMI 1 A0 F0 55 FF 28 D8 A0 F0 55 FF 34 CC HDMI 2 A0 F0 55 FF 29 D7 A0 F0 55 FF 35 CB HDMI 3 A0 F0 55 FF 36 CA SCART Videotree... -
Page 11: Troubleshooting
No signal No signal transmitted/different source. • Check correct source is selected Warning: This water resistant television must only be fitted by a Videotree trained and recognised No source cable is properly connected. • Check cable connection between TV and source equipment installation engineer.
