Page 1: Instruction Manual

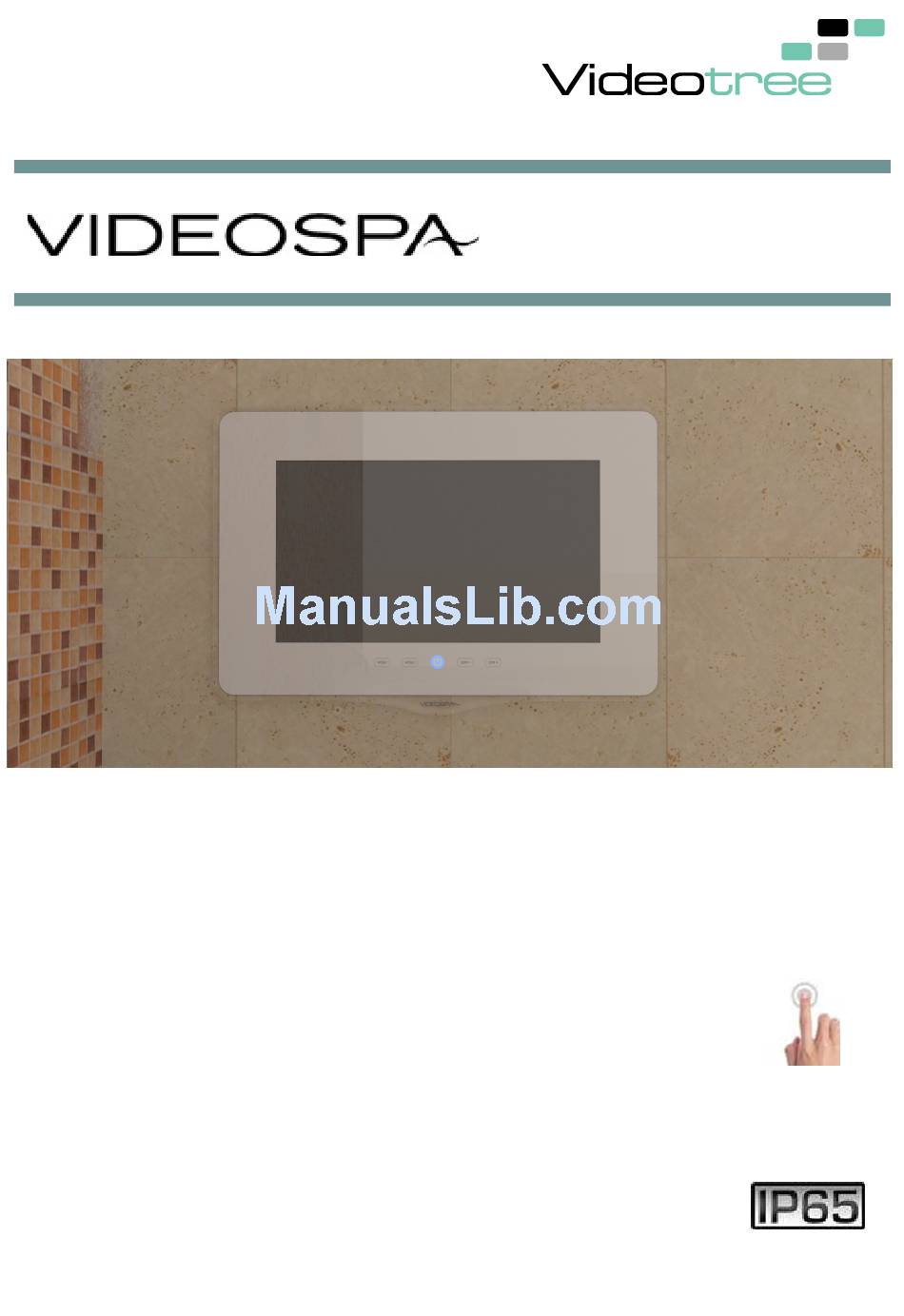

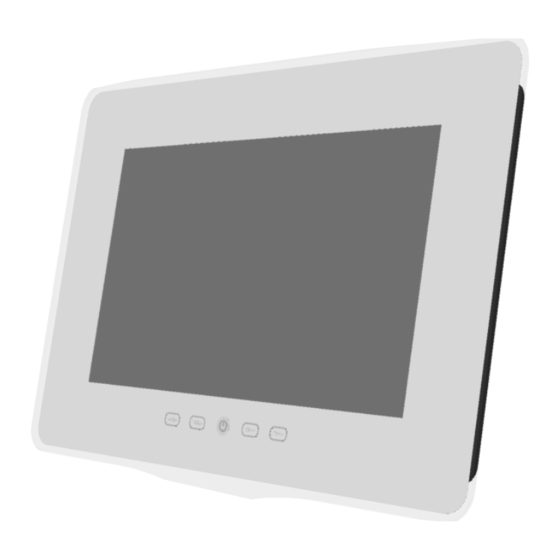

INSTRUCTION MANUAL 19” HD Widescreen Water Resistant Television VSPA19LCD-AE1B VSPA19LCD-AE1M Model No. FINGER TOUCH VSPA19LCD-AE1W TECHNOLOGY IMPORTANT: Please read these instructions before installing and operating the unit. RATED Retain them for future reference. -
Page 2: Table Of Contents
CONTENTS Safety Precautions ………………….………………………………………………..……. What’s In The Box ………………….……………………………….………………..…… Installation Procedure …………….……………………………………………..……... Control Remotes ………………….……………………………………………...……….. Basic Connections ……………...…….………..………………………………...……… Extended Connections …………..…….………………………………...……………… Touch Control Settings ………………………………………………..…………..……. TV Operation ………………………………………………………………………………….. Technical Specifications ………………………………………………………………… Troubleshooting ……………………………………………………………………………. Appendix A - RS232 Commands …………………………………………………….. -
Page 3: Safety Precautions
Do not expose to direct sunlight Do not use any PSU other than the Avoid exposing the TV to direct one provided by Videotree. sunlight. This can cause damage Ensure there is always easy to the LCD. -
Page 4: What's In The Box
WHAT’S IN THE BOX 1 x Wall Frame 1 x Videospa TV with Magnets 2 x AAA Batteries ( Master Remote ) 1 x Videospa Waterproof Remote * 1 x Master Remote 1 x Silicone Grease Tube 1 x Power Supply 1 x Power Lead OPTIONAL EXTRAS Installation Backbox... -
Page 5: Installation Procedure
Cut Out * The Backbox is essential for environments where the TV will be subject to direct water e.g. under a shower. The Backbox is recommended for use with concrete walls. Please contact Videotree for information about an installation training course. - Page 6 HDMI) are passed through the holes, before the box is fitted into the wall. ** It is the installer’s responsibility to ensure that the Videotree unit is installed and sealed correctly. Failure to do so will invalidate your guarantee and will null and void the manufacturer’s 12 month warranty from date of purchase.
- Page 7 TV is now ready to use. TV REMOVAL The TV must only be removed with the Videotree removal tool, following the instruc- tions provided with it. Contact your distributor for information about purchasing a removal tool.
-
Page 8: Control Remotes
CONTROL REMOTES MASTER REMOTE 1 Standby 8 Sound Mute 2 Numeric buttons Return 9 Programme Up / Down Audio 3 Volume Up/Down 10 OK Main Menu P 9-12 11 Exit 12 Direction Buttons 4 Select Source/Input P 13 Picture Mode Sleep Sound Mode 5 Info P 13... -
Page 9: Basic Connections
BASIC CONNECTIONS CONNECTIONS HDMI SCART AV AUDIO IN CI SLOT AERIAL IN RJ12 RS232 IR OUT AV VIDEO IN POWER IN PC VGA S-VIDEO YPbPr HEADPHONE PC AUDIO (COMPONENT) AERIAL, SPEAKERS & POWER HDMI & SCART Output Set Top Box DVD / VCR Aerial Input... -
Page 10: Extended Connections
EXTENDED CONNECTIONS RS232 CONNECTOR DB9 female connector. This port allows external equipment to send and acknowledge commands for DB-9 control the Videospa TV. A standard RS232 cable should be used. RS232 Protocol Signal Baud Rate: 9600 bps Bits: Parity: None Ground Stop Bit: COMMAND SEQUENCE... -
Page 11: Touch Control Settings
TOUCH CONTROL SETTINGS The Videospa TV has 3 different settings that improves the customer experience. To have access to these settings, the TV must be in STANDBY/OFF mode and only the master remote can be used. The waterproof remote has been locked to prevent any changes from unauthorised users. Red : Restore Factory Settings Blue : LED’s Flash Setting Green : Touch Sensitivity... - Page 12 TOUCH CONTROL SETTINGS AUDIO BEEP SETTING For this setting there are 4 levels that enable/disable the audio beep response to touch and remote uses. The factory default setting is 2. 1. Ensure TV is in standby. Press the YELLOW button on the MASTER remote. 2.
-
Page 13: Tv Operation
TV OPERATION AUTO TUNING (Analogue and Digital TV) 1. Press LCD MENU button. 2. Scroll left or right until reach CHANNEL menu. 3. Scroll down with the arrow keys and select Auto Tuning with the OK button. 4. Select the country with the left and right arrow keys and press the OK button twice . - Page 14 TV OPERATION PICTURE SETTINGS 1. Press LCD MENU button. 2. Scroll left or right until reaching the PICTURE menu. 3. Scroll with the arrow keys and save the changes with the OK button. Some modes are predefined and cannot be modified. SOUND SETTINGS 1.
- Page 15 TV OPERATION SETUP SETTINGS 1. Press LCD MENU button. 2. Scroll left or right until reaching the SETUP menu. 3. Scroll with the arrow keys and save the changes with the OK button 4. This menu allows the menu lan- guage, the default audio language and default subtitle language to be changed.
- Page 16 TV OPERATION 1. Press EPG/LIST button on the master re- PROGRAMME GUIDE mote or GUIDE on the waterproof remote. 2. Scroll with the arrow keys the move be- tween channels and programmes. 3. To retrieve information of a programme, press the INFO button. 4.
-
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Model: VIDEOSPA19-AE1 TV Unit Dimensions: W x H x D: 568 x 390 x 78mm VIDEO & AUDIO Input: (1) TV Format: DVB-T, PAL, SECAM Terminal: IEC 75 Ω (1) YPbPr/YCbCr Resolution: 480i, 480p, 576i, 576p, (COMPONENT) 720p, 1080i, 1080p Terminal: 3RCA green, blue and red colour (1) S-VIDEO... -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION No input power. Check the power cable. No LED Light Check if the Green LED on the power supply. No signal transmitted / different source. Check correct source is selected Check cable connection between TV and No source cable is properly connected. -
Page 19: Appendix A - Rs232 Commands
APPENDIX A RS232 COMMANDS COMMAND DATA CHECK COMMAND DATA CHECK POWER MENU MUTE PMODE SMODE TV/RADIO SLEEP TIMER INFO ZOOM GUIDE SUBTITLES GREEN YELLOW BLUE VOL+ DISCREET ON VOL- DISCREET OFF DOWN LEFT SCART RIGHT YPbPr(HD) PC-RGB EXIT HDMI SOURCE RETURN S-VIDEO... - Page 20 Please make a note of the model and serial numbers: Model Number Serial Number Sales and Support Information ESC House South Road Phone: +44 (0) 1932 856 382 Weybridge Fax: +44 (0) 1932 856 649 Surrey E-mail: sales@videotree.com KT13 9DZ .com...
