Summary of Contents for Monoprice 604570

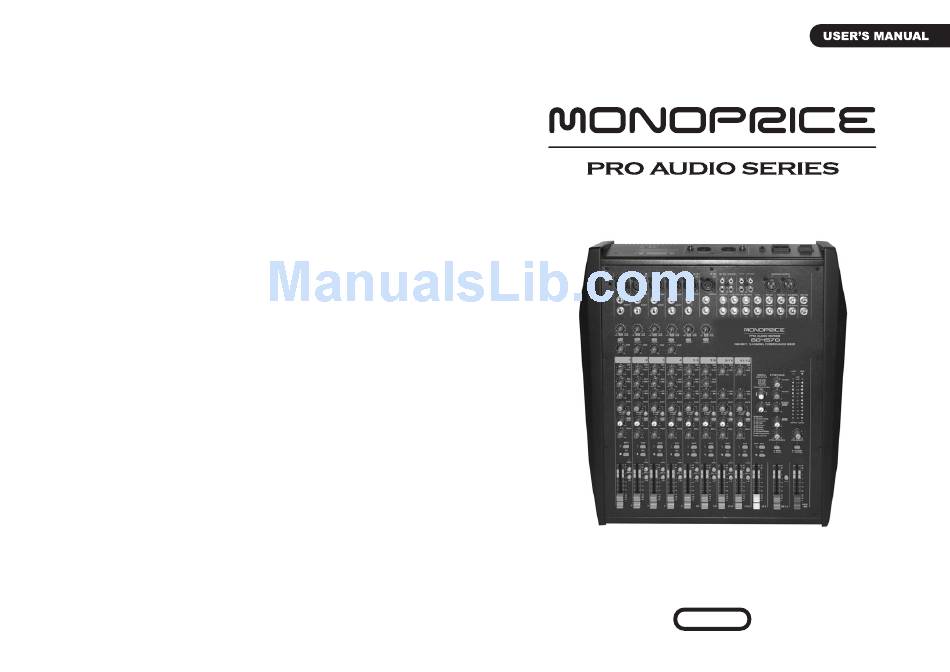

  • Page 1 1000-watt, 12 - Channel Powered Mixer with DSP 604570...
  • Page 3 Table of Contents 1.INTRODUCTION 2.FEATURES 3.CONTROL ELEMENTS 4.TECHNICAL SPECIFICATION...
  • Page 4 1.8K All other inputs or greater Tape out Thank you for purchasing this 1000-watt 12-Channel Powered Mixer from Monoprice! All other outputs DSP Section This professional mixer is ideal for live music and DJ performances, recording, A/D and D/A converters...
  • Page 5: Technical Specifications

    Technical Specifications Control Elements PID 604570 1000-watt, 12-Channel Powered Mixer with DSP MODEL : Mono Channels 9/10 11/12 2TK IN 2TK OUT MAIN MIX OUTPUT Microphone input XLR (balanced) Frequency response 20Hz to 22KHz,+/-1dB Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted...
  • Page 6 CLASS 2 WIRING MAY BE USED Adjusts the amount of compression applied to the channel. Turn the knob to the available from Monoprice. Note that Class right to increase the compression. The output gain will automatically adjusted. 2 wiring may be used.
  • Page 7 30) FX TO AUX 7) EQUALIZER This control is used to assign the signal from FX to the AUX SEND output. This is the treble control. You can use it to get rid of 31) PROGRAM (PUSH) high frequency noises or to boost the sound of cymbals or Use this knob to select the desired effect for the mix.
  • Page 8 13) PFL 23) MAIN/GR1-2 Each channel is equipped with a PFL button. When PFL is active, the audio signal on the channel is sent directly to the CTRL and Headphones outputs and to the This button determines whether the GR1-2 or MAIN MIX signal is sent to output level meter, bypassing the fader.
