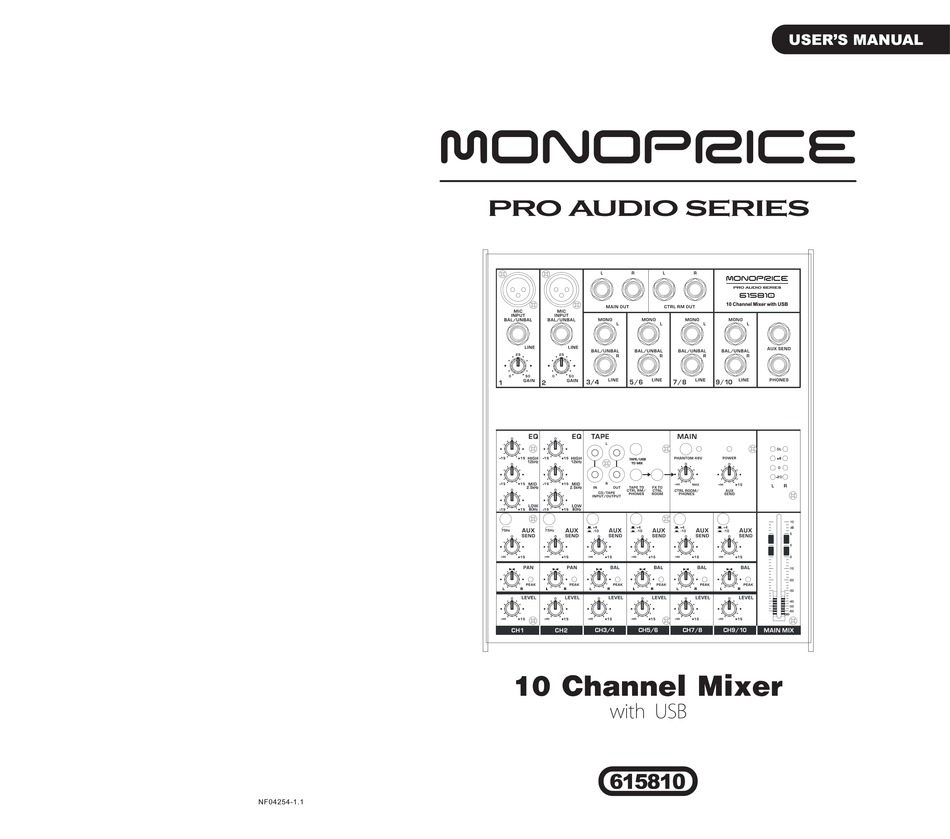

Page 1: Channel Mixer
615810 10 Channel Mixer with USB TAPE/USB TO MIX 10 Channel Mixer NF04254-1.1... -
Page 2: Technical Specification
TECHNICAL SPECIFICATION Mono channels 15dB @12 kHz High Equalization 15dB @2.5 kHz 15dB @80 Hz Channel1-10: Channels +17dBu PEAK Indicator +19dBu VU Meters VU Meters Main Left and Right (4-segment) Clip (+19), +6,0, -20 (0 LED=0 dBu) Microphone Input 2.6k Ohms Line Input 10k Ohms CD/Tape Input... - Page 3 TABLE OF CONTENTS TECHNICAL SPECIFICATION 20Hz -75kHz (0, -1dB) 1. INTRODUCTION..................4 Mic Input to any Output(Gain Frequency @ 0dB, Rated output level) Response 20Hz -130kHz 2. FEATURES..................4 (0, -3dB) Mic Input to MAIN Output Distortion 0.01% Gain@ 0 dB, Rated output level @ 20 Hz-20 kHz 3.
- Page 4 Please read this manual carefully so you can take advantages of all the features of the mixer Thank you again for making the right choice in purchasing the MONOPRICE mixer. FEATURES 2 mono inputs with gold plated XLR and Balanced TRS jack...
-
Page 5: Hookup Diagram
HOOKUP DIAGRAM Small Club Gig WIRE CONNECTIONS Drum Machine Microphones 1 and 2 Either the 1/4" TRS phone jack or XLR connector can be wired in balanced and unbalanced modes, which will be determined by the actual application status, please wire your system as the following wiring examples: For 1/4"... -

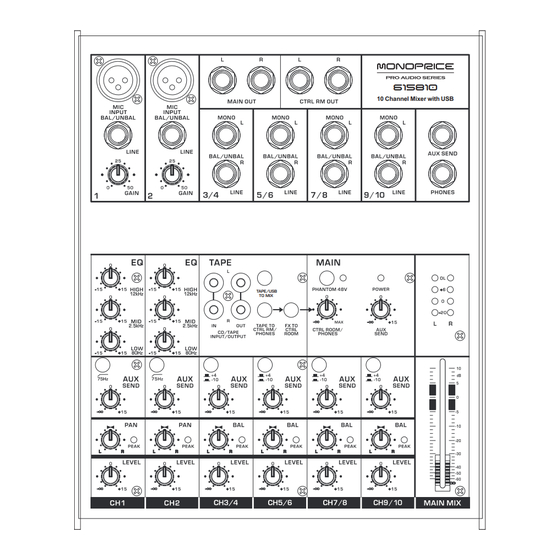

Page 6: Control Elements
CONTROL ELEMENTS INSTALLATION TIPS 1- Mono MIC Input 1- Speakers should be placed in a position that allows for unobstructed sound projection. In many instances is beneficial for speakers to be elevated on tripod stands to achieve maximum The 615810 is equipped with low-noise microphone preamplifiers dispersion and reach. - Page 7 CONTROL ELEMENTS CONTROL ELEMENTS 6- LOW 26- AUX SEND OUT These 1/4" TRS is used to send out the signal from the AUX bus to an external device such as This is the bass control. The gain range goes from -15 dB to effects equipment.
- Page 8 CONTROL ELEMENTS CONTROL ELEMENTS 12- LEVEL 18- CTRL ROOM/PHONES Control This control will adjust the overall level of this channel. If you set the LEVEL control in max, it's This control is used to adjust the signal level going to the CONTROL ROOM/PHONES outputs. And usually a sign that your GAIN is set too low.
