Lumiscope 1131 Manual

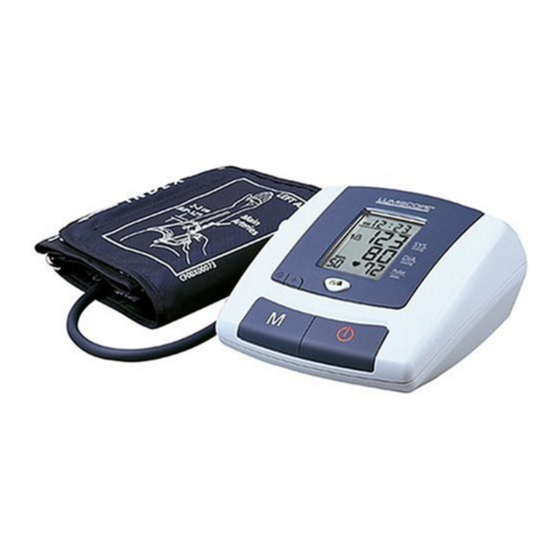

Automatic upper arm blood pressure monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

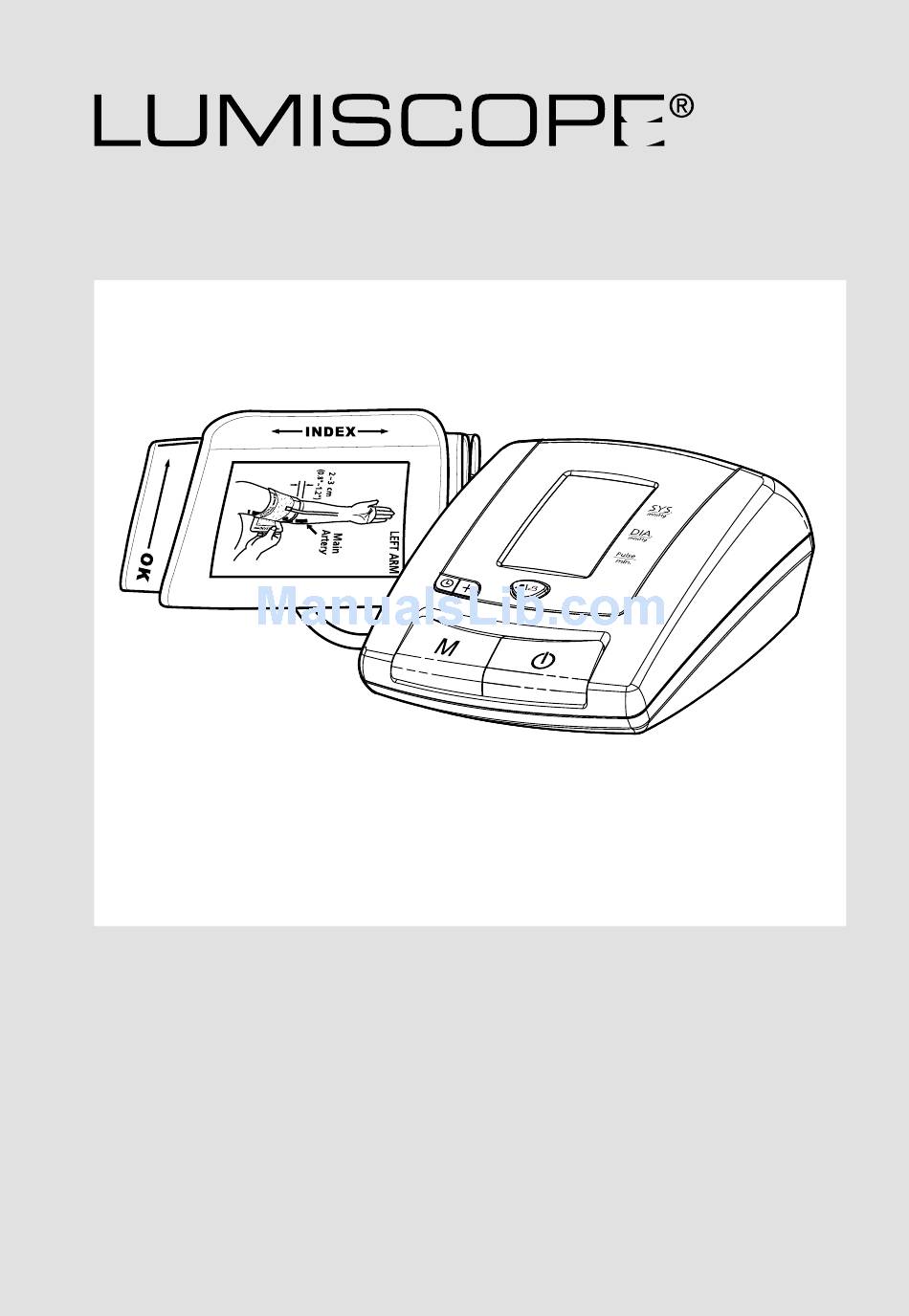

A U T O M A T I C
Blood Pressure Monitor
Model 1131
Features:
• Dual Person Memory Zones
• 50 Memories for each zone
• Average for Last 3 Memories
• Date and Time Stamp
• One Touch Operation

Table of Contents:

Introduction .................................. 2
Preliminary Remarks ...................... 3
About Blood Pressure ..................... 3
Blood Pressure Standard ................ 4
Display Explanation ........................ 5
Installing Battery............................ 6
U P P E R
Measurement Procedures ............ 8,9
Time Adjustment .......................... 12
Helpful Tips.................................. 13
Troubleshooting............................ 14
Cautionary Notes.......................... 15
Specifications .............................. 16
A R M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1131 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumiscope 1131

Summary of Contents for Lumiscope 1131

  • Page 1: Table Of Contents

    A U T O M A T I C Blood Pressure Monitor Model 1131 Features: • Dual Person Memory Zones • 50 Memories for each zone • Average for Last 3 Memories • Date and Time Stamp • One Touch Operation Table of Contents: Introduction ...

  • Page 2: Model

    Introduction Blood pressure measurements determined with Lumiscope Model 1131 are equivalent to those obtained by a trained observer using cuff/stethoscope auscultation method, within the limits prescribed by the American National Standard, Electronic or Automated Sphygmomanometers. This monitor is to be used by adult consumers in a home environment.

  • Page 3: Quick Read Measuring Technology

    Quick Read Measuring Technology This monitor uses trend-setting Quick Read Technology to detect your blood pressure. With one touch of a button, the device will automatically start to inflate and determine your blood pressure by analysis of your pressure oscillations. When the measurement is completed, the device will exhaust cuff pressure and display your systolic, diastolic, and pulse.

  • Page 4: Blood Pressure Standard

    Blood Pressure Standard The World Health Organization (WHO) has developed a blood pressure standard, according to which areas of low- and high-risk blood pressure are identified. This standard, however, is a general guideline and blood pressures vary between different people, age groups, etc. It is important that you consult with your physician regularly.

  • Page 5: Display Explanation

    Display Explanation Display: Memory Zones Icons: Memory Zone 1: Appears when the monitor is operated in memory zone 1 Memory Zone 2: Appears when the monitor is operated in memory zone 2 Weak Battery Mark: Appears when batteries should be replaced Pulse Mark: Shows the pulse rate per minute Memory Mark: Shows the number of stored measurements Error Mark: Occurs when a mistake was made during measurement...

  • Page 6: Installing Battery

    Installing Battery 1. Press down and lift the battery cover in the direction of the arrow to open the battery compartment. 2. Install or replace 4 “AA” sized batteries in the battery compartment according to the indications inside the compartment. 3.

  • Page 7: Applying The Arm Cuff

    5. If the Index line falls within the OK range, indicated at the edge of the cuff, this cuff suitable for your use. If the Index line falls out the OK range, you may need a special cuff measurement. Please visit www.lumiscope.net contact service 800-672-8293 for more information regarding...

  • Page 8: Measurement Procedures

    Measurement Procedure 1. Press the User-Switching key to select Memory Zone 1 or Memory Zone 2. After a memory zone is selected, press the measurement in the chosen memory zone. 2. Press the button. All digits will light up, checking the display functions. The checking procedure will be completed after about 2 seconds.

  • Page 9: Measurement Procedures

    Measurement Procedure 4. When the measurement is completed, the cuff will automatically deflate. Systolic, diastolic and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into the pre-designated memory zone. Note: 1. This monitor automatically switches off approximately 1 minute after last measurement. 2.

  • Page 10: Recalling Values From Memory

    Recalling Values from Memory 1. The Monitor has two Memory Zones (1 and 2). Each zone can store up to 50 measurements. 2. To read memory values from a selected Memory Zone, use the “User-Switching Key” to select a Memory Zone (1 or 2) from which you want to recall values from.

  • Page 11: Clearing Values From Memory

    Clearing Values from Memory 1. Press the User-Switching key to select the memory zone 1 or memory zone 2. 2. Continue to press and hold the “M” key for approximately 5 seconds, and the data in the pre- designated memory zone will be erased automatically. Press “M”...

  • Page 12: Time Adjustment

    3. Change the date, the hour, and the minute as described in Step 2 above, using the “ to change and the 4. A “0” will reappear as the Blood Pressure Monitor is ready for measurement again. ” Key. Each press will increase the number by one Key.

  • Page 13: Helpful Tips

    Helpful Tips Here are a few helpful tips to help you obtain more accurate readings: • Do not measure your blood pressure immediately after consuming a large meal. Wait at least one hour after eating to take a measurement. • Do not smoke or drink alcohol before measuring your blood pressure. •...

  • Page 14: Troubleshooting

    Troubleshooting If any abnormality should arise during use, please check the following points. Symptom No display when the ON/OFF/START key is pressed EE mark shown on display or the blood pressure value is displayed excessively low (high) Note: If the unit still does not work, return it to your dealer or contact our repair department. Under no circumstance should you disassemble and attempt to repair the unit by yourself.

  • Page 15: Cautionary Notes

    5. If the unit is stored near freezing, allow it to acclimate at room temperature before use. 6. Your Lumiscope Model 1131 is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems, please contact the store or the doctor from whom you purchased Lumiscope Model 1131 or contact the Lumiscope Repair Department at 1-800-672-8293.

  • Page 16: Specifications

    Specifications: Measurement Method Measurement Range Pressure Sensor Accuracy Inflation Deflation Memory capacity Auto-shut-off Operation Environment Storage Environment Power Source Dimensions Weight Arm circumference K.B. *Specifications are subject to change without notice. : Oscillometric : Pressure: 20~280mmHg; Pulse: 40~180 beats/ minute : Semi conductor : Pressure: ±...
  • Page 17 Lumiscope Repair Department voids warranty. In the event that Lumiscope does not abide by the terms of this warranty the consumer may seek breach of contract remedies in the New York State Federal courts of law. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
